Airports for X-Plane

Mary

Airport details

CountryTurkmenistan
StateMary Region
RegionUT
AirspaceTurkmenabat Ctr
MunicipalityMary
Elevation728ft (222m)
TimezoneGMT +5
Coordinates37.62167, 61.89667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUTAM
IATA codeMYP
FAA coden/a

Communication

Mary Tower122.200
Mary RADAR124.000

Approach frequencies

ILS-cat-IRW35L111.518.00mi
3° GSRW35L111.518.00mi

Runway info

Runway 18L / 36R
 length2800m (9186ft)
 bearing178° / 358°
 width43m (141ft)
 surfaceconcrete
Runway 18R / 36L
 length3804m (12480ft)
 bearing178° / 358°
 width45m (148ft)
 surfaceconcrete

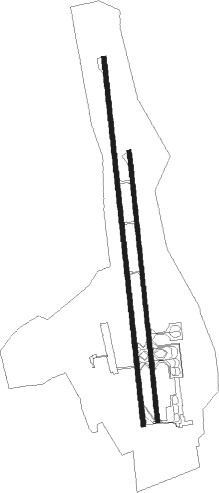

Airport layout


Taxiway locations

 F  G  R1  R2
Parking locations

 Cargo  Fighter  Stand

Nearby beacons

codeidentifierdistbearingfrequency
MMARY NDB1.3176°213
MRMARY NDB3177°439

Departure and arrival routes

Transition altitude3681ft
Transition level4921ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 LUN17D41mi49°
 XIG17D161mi74°
 ARK17D13mi87°
 NEL17D70mi87°
 PEM17D144mi103°
 EKD17D144mi121°
 PES17D138mi147°
 BAS17D41mi238°
 SAD17D65mi275°
 TEL17E, TEL17D13mi276°
 MIV17D85mi283°
 GIN17D133mi291°
 SUV17D67mi334°
RW35 (ALL)
 LUN35D41mi49°
 XIG35D161mi74°
 NEL35D70mi87°
 ARK35D13mi87°
 PEM35D144mi103°
 EKD35D144mi121°
 PES35D138mi147°
 BAS35E, BAS35D41mi238°
 SAD35D65mi275°
 TEL35E, TEL35D13mi276°
 MIV35D85mi283°
 GIN35D133mi291°
 SUV35D67mi334°

STAR starting pointsdistanceinbound heading
RW35L
 BAS35A10.96°
 SAD35A11.015°
 MIV35A10.916°
 GIN35A10.818°
 TEL35A10.719°
 ARK35A, XIG35A, TEL35B, SUV35A, PEM35A, NEL35A, LUN35A, ARK35B11.0348°
 EKD35A10.8351°
 PES35A10.2356°
RW35R
 BAS35A10.96°
 SAD35A11.015°
 MIV35A10.916°
 GIN35A10.818°
 TEL35A10.719°
 XIG35A, SUV35A, TEL35B, PEM35A, ARK35A, NEL35A, LUN35A, ARK35B11.0348°
 EKD35A10.8351°
 PES35A10.2356°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARK17AARKEKVHFleft83 (263)°> 2700ft1.0min timedICAO rules
ARK17BARKEKVHFleft83 (263)°> 2700ft1.0min timedICAO rules
ARK35AARKEKVHFleft83 (263)°> 2700ft1.0min timedICAO rules
ARK35BARKEKVHFleft83 (263)°> 2700ft1.0min timedICAO rules
TEL17ATELMIVHFleft273 (93)°> 2700ft1.0min timedICAO rules
TEL17BTELMIVHFleft273 (93)°> 2700ft1.0min timedICAO rules
TEL35ATELMIVHFleft273 (93)°> 2700ft1.0min timedICAO rules
TEL35BTELMIVHFleft273 (93)°> 2700ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
