Airports for X-Plane

Zhukovsky - Zhukovsky Internationl

Airport details

CountryRussian Federation
StateMoscow Oblast
RegionUU
AirspaceMoscow Ctr
MunicipalityZhukovsky
Elevation399ft (122m)
TimezoneGMT +3
Coordinates55.56778, 38.11884
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUBW
IATA codeZIA
FAA coden/a

Communication

Zhukovsky Internationl ATIS127.750
Zhukovsky Internationl Gordy Transit123.900
Zhukovsky Internationl Gordy Ground 2124.000
Zhukovsky Internationl Gordy Ground Control125.250
Zhukovsky Internationl Ctrl Tower128.800
Zhukovsky Internationl Gordy Radar124.000

Approach frequencies

ILS-cat-IRW30110.918.00mi
3° GSRW30110.918.00mi
Nearby Points of Interest:
Old Believers churches (Mikhailovskaya Sloboda)
-
Exaltation of the Cross Jerusalem Monastery
-
Church of the Theotokos of Blachernae in Kuzminki
-
Vlakhernskoye-Kuzminki
-
Saint Nicholas Church, Ermolino
-
Lyublino Park
-
Church of the Merciful Saviour in Kuskovo
-
Durasov Theatre
-
Lyublinsky Pond
-
Palace Pavilion in Kolomenskoe
-
Kinoteatr Slava
-
Vostochnaya Pumping Station
-
Communal House in 4th Syromyatnichesky Lane
-
Nativity Cathedral
-
Rogozhskoe cemetery belltower
-
Izmaylovo (Moscow Metro depot)
-
Gosfilmofond of Russia
-
Palace of Culture ZIL
-
Nikolaevskaya military almshouse

Runway info

Runway 12 / 30
 length4788m (15709ft)
 bearing117° / 297°
 width70m (230ft)
 surfaceconcrete

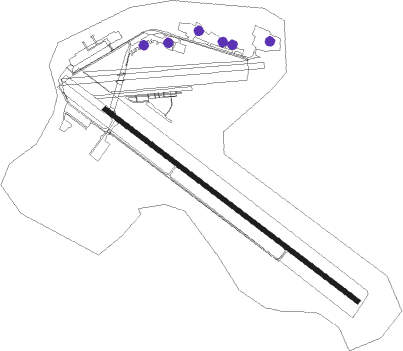

Airport layout - parking location RAMP


Parking locations

 APRON  HELICOPTER  RAMP  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
DRAMENSKOYE NDB0.1307°11.850
RTRAMENSKOYE VOR/DME1.9118°117.90
LPDME2.9260°109.20
DMRAMENSKOYE NDB3.3297°581
RRAMENSKOYE NDB3.3116°760
RTRAMENSKOYE NDB5.2116°370
MRNDME9.337°112.50
RWMARYINO NDB9.337°493
WTKARTINO NDB11.3274°12.150
DMDOMODEDOVO (MOSCOW) NDB12241°320
DMDDOMODEDOVO (MOSCOW) VOR/DME12.8229°113.30
DODOMODEDOVO (MOSCOW) NDB12.9229°659
PSOSTAFYEVO (OSTAVYEVO) NDB18.5264°625
POSTAFYEVO (OSTAVYEVO) NDB20.2264°305
NOSTAFYEVO NDB22.2265°305
NWOSTAFYEVO NDB23.5265°625
LOKLIMOVSK NDB23.9250°10.050
BPCHELOBITYEVO NDB25307°680
AOAKSINYINO NDB25.5158°732
DKGLOTAYEVO NDB26.6218°
GLWDME26.6218°113.50
OBVNUKOVO (MOSCOW) NDB27.6272°852
SXVNUKOVO (MOSCOW) NDB28.5274°914
WNKVNUKOVO VOR/DME29.3271°113.70
OEVNUKOVO (MOSCOW) NDB29.4271°949
GTVNUKOVO (MOSCOW) NDB30.3271°294
BWSHEREMETYEVO (MOSCOW) NDB32.4304°380
ADSHEREMETYEVO (MOSCOW) NDB32.6304°700
KSOPALIKHA NDB32.6287°565
OPHDME-ILS32.6287°109.70
BSHEREMETYEVO (MOSCOW) NDB33.1302°770
ASHEREMETYEVO (MOSCOW) NDB33.3302°338
DRSKURYGINO NDB33.4245°415
NSHEREMETYEVO (MOSCOW) NDB34.7298°770
MSHEREMETYEVO (MOSCOW) NDB34.8298°338
ERSHEREMETYEVO NDB35.3300°794
NLSHEREMETYEVO (MOSCOW) NDB35.5296°380
MRSHEREMETYEVO (MOSCOW) NDB35.7296°700
MRSHEREMETYEVO (MOSCOW) VOR/DME36.3297°114.60
IKODME46.1331°113.20
KNKOSTINO NDB46.1331°642
SWSAVELOVO NDB53.3319°12.850
SWODME53.3319°111.80
INSUKHOTINO NDB63.7220°10.550

Departure and arrival routes

Transition altitude4341ft
SID end pointsdistanceoutbound heading
RW12
 RILP2X, RILP2W79mi7°
 OLMU2X, OLMU2W57mi70°
 KOGO2X, KOGO2W58mi75°
 TOGM2X, TOGM2W77mi142°
 LINR2X, LINR2W74mi174°
 SOTO2W, SOTO2X71mi240°
 POKA2X, POKA2W87mi271°
 SUNU2W, SUNU2X76mi286°
RW30
 RILP2B, RILP2A79mi7°
 OLMU2A, OLMU2B57mi70°
 KOGO2B, KOGO2A58mi75°
 TOGM2B, TOGM2A77mi142°
 LINR2B, LINR2A74mi174°
 SOTO2A, SOTO2B71mi240°
 POKA2B, POKA2A87mi271°
 SUNU2A, SUNU2B76mi286°

STAR starting pointsdistanceinbound heading
ALL
 TENR2W64.731°
 BILR2W87.286°
 ESOL2B, ESOL2W83.2140°
 ROMT2B, ROMT2W93.4165°
 URAG2W, URAG2B63.8271°
 OLOP2W84.5330°
RW12
 URAG2A24.0275°
 BILR2A, OLOP2A, TENR2A32.4315°
RW30
 URAG2A24.0275°
 TENR2A, OLOP2A, BILR2A32.4315°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12ODLOR (297°)ODLOR
BW144 (11mi, 281°) 2000ft
BW146 (10mi, 294°) 2000ft
BW147 (5mi, 52°) 2000ft
 RNAVBW147 2000ft
BW148 (3mi, 117°) 2000ft
BW149 (3mi, 117°) 1140ft
UUBW (2mi, 117°) 454ft
BW138 (5mi, 116°) 1060ft
BW144 (5mi, 261°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BILR2ANUKDIVHFleft253 (73)°23000ft - 27000ft1.5min timedICAO rules
BILR2APREKIVHFright271 (91)°21000ft - 25000ft1.5min timedICAO rules
BILR2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
BILR2WNUKDIVHFleft253 (73)°23000ft - 27000ft1.5min timedICAO rules
BILR2WPREKIVHFright271 (91)°21000ft - 25000ft1.5min timedICAO rules
ESOL2ARATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ESOL2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
ESOL2ASUBODVHFright10 (190)°21000ft - 27000ft1.5min timedICAO rules
ESOL2BRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ESOL2BSUBODVHFright10 (190)°21000ft - 27000ft1.5min timedICAO rules
ESOL2WRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ESOL2WSUBODVHFright10 (190)°21000ft - 27000ft1.5min timedICAO rules
OLOP2APOZUKVHFright135 (315)°23000ft - 25000ft1.5min timedICAO rules
OLOP2ARIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
OLOP2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
OLOP2WPOZUKVHFright135 (315)°23000ft - 25000ft1.5min timedICAO rules
OLOP2WRIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
ROMT2AFILZIVHFright352 (172)°25000ft - 28000ft1.5min timedICAO rules
ROMT2ARATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ROMT2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
ROMT2BFILZIVHFright352 (172)°25000ft - 28000ft1.5min timedICAO rules
ROMT2BRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ROMT2WFILZIVHFright352 (172)°25000ft - 28000ft1.5min timedICAO rules
ROMT2WRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
TENR2APOZUKVHFright135 (315)°23000ft - 25000ft1.5min timedICAO rules
TENR2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
TENR2WPOZUKVHFright135 (315)°23000ft - 25000ft1.5min timedICAO rules
URAG2AORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG2ARTFIXleft120 (300)°4320ft - 9240ft1.0min timed230
URAG2BORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG2WORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
