Airports for X-Plane

Moscow - Sheremetyevo Intl

Airport details

CountryRussian Federation
StateMoscow Oblast
RegionUU
AirspaceMoscow Ctr
MunicipalityKhimki
Elevation627ft (191m)
TimezoneGMT +3
Coordinates55.98245, 37.44399
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUEE
IATA codeSVO
FAA coden/a

Communication

Sheremetyevo Intl ATIS129.000
Sheremetyevo Intl CLD128.600
Sheremetyevo Intl Ground Control123.600
Sheremetyevo Intl Tower118.700
Sheremetyevo Intl Approach126.600
Sheremetyevo Intl Departure118.100

Approach frequencies

ILS-cat-IIIRW06R109.118.00mi
ILS-cat-IIIRW06L108.7518.00mi
ILS-cat-IIIRW24R109.3518.00mi
ILS-cat-IIIRW24C111.318.00mi
ILS-cat-IIRW24L110.518.00mi
ILS-cat-IRW06C108.118.00mi
3° GSRW06R109.118.00mi
3° GSRW24C111.318.00mi
3° GSRW24R109.3518.00mi
3° GSRW24L110.518.00mi
3° GSRW06C108.118.00mi
3° GSRW06L108.7518.00mi
Nearby Points of Interest:
Trinity Church in Chashnikovo
-
Ezhi monument
-
Arkhangelsk-Tyurikova (estate)
-
Lianozovsky Park
-
Zhostovo painting
-
bust of Alexei Krylov
-
Shtyki Memorial
-
Bratzevo
-
Kazansky Golovinsky Monastery
-
Golovinskie Ponds
-
Russian State Archive of Literature and Art
-
Monument to Mitrofan Tursky
-
Chkalov Aeroclub
-
Victory Bridge
-
Pokrovskoye-Streshnevo
-
Krasnostudenchesky Passage Tram Stop
-
Pavilion No. 35 Tobacco at the VDNKh
-
Pavilion No. 44 Cuniculture at the VDNKh
-
Pavilion No. 32 Cosmos at the VDNKh

Runway info

Runway 06L / 24R
 length3190m (10466ft)
 bearing81° / 261°
 width60m (197ft)
 surfaceconcrete
Runway 06C / 24C
 length3542m (11621ft)
 bearing82° / 262°
 width60m (197ft)
 surfaceconcrete
Runway 06R / 24L
 length3689m (12103ft)
 bearing82° / 262°
 width60m (197ft)
 surfaceconcrete

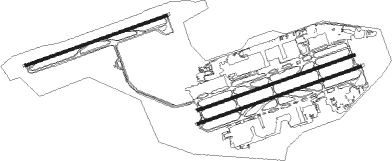

Airport layout


Taxiway locations

 14  A1  A2  A5  A8  A9  B  B1
 B2  B4  B5  B6  B7  D  E  E1
 E2  E3  E4  E5  G1  G2  G3  G4
 G5  MAIN|1  MAIN|A  N1  N2  N3  N5  N6
 N7  N8  N9  S1  S10  S12  S2  S7
 S9
Parking locations

 1  10  100A  102A  105A  107A  109A  11
 111A  113  114  115  116  117  119  12
 120A  122  123A  125  126A  128  129  13
 130A  132  132A  133  134  134A  135  136
 136A  137  138  139  139A  14  140  141
 142  142A  143  144  145  145A  146  147
 147A  148  149  149A  150  15A  162A  163
 163B  164  165  166  167  168  169  170
 171  172  173  174  175  176  177  177A
 177B  178  178A  179  179A  179B  17A  180
 181  181A  182  184  186A  187A  189  19
 190  191  192  193  194  195  196  197
 198  199  1A  20  200  201  201A  202
 203  203A  204  205  205A  206  207  207A
 208  209  209A  210  211  211A  212  213
 213A  214  215  215A  216  21A  220  23
 24  25  26  27A  29  30  31  32
 33  34A  36  37A  39  4  40  41
 42  43A  44  45  46  47  48A  5
 50  51  52  53A  55  56  57A  58
 59  6  60  61  62B  63A  64  65
 66  68  69  7  70  71  72  74A
 76A  77  78  79  8  81A  85  85A
 85B  85C  85D  85E  85I  85K  85L  85M
 85O  85P  85Q  85R  85T  85U  85V  85X
 85Y  85Z  86  87  88  89  89C  89D
 9  90A  93  94  95  96  97  98
 99

Nearby beacons

codeidentifierdistbearingfrequency
ASHEREMETYEVO (MOSCOW) NDB0.597°338
BSHEREMETYEVO (MOSCOW) NDB0.6103°770
ADSHEREMETYEVO (MOSCOW) NDB1.886°700
ERSHEREMETYEVO NDB1.8279°794
BWSHEREMETYEVO (MOSCOW) NDB2.188°380
MSHEREMETYEVO (MOSCOW) NDB2.5258°338
NSHEREMETYEVO (MOSCOW) NDB2.6256°770
MRSHEREMETYEVO (MOSCOW) VOR/DME3.9268°114.60
NLSHEREMETYEVO (MOSCOW) NDB4.1258°380
MRSHEREMETYEVO (MOSCOW) NDB4.3259°700
BPCHELOBITYEVO NDB9.1110°680
KSOPALIKHA NDB11228°565
OPHDME-ILS11228°109.70
UMIVANOVSKOYE NDB19.3257°405
IKODME21.140°113.20
KNKOSTINO NDB21.140°642
ARBUZHAROVO NDB21.6270°
SXVNUKOVO (MOSCOW) NDB22.4204°914
SWSAVELOVO NDB23.1358°12.850
SWODME23.1358°111.80
OBVNUKOVO (MOSCOW) NDB23.3200°852
WNKVNUKOVO VOR/DME24.5206°113.70
GTVNUKOVO (MOSCOW) NDB25209°294
OEVNUKOVO (MOSCOW) NDB25.1205°949
WTKARTINO NDB26.3139°12.150
POSTAFYEVO (OSTAVYEVO) NDB28.5170°305
NOSTAFYEVO NDB28.6176°305
PSOSTAFYEVO (OSTAVYEVO) NDB28.6164°625
NWOSTAFYEVO NDB28.7181°625
DMRAMENSKOYE NDB30.4122°581
MRNDME31109°112.50
RWMARYINO NDB31109°493
LPDME32.6126°109.20
DRAMENSKOYE NDB33.6122°11.850
RTRAMENSKOYE VOR/DME35.6121°117.90
DMDOMODEDOVO (MOSCOW) NDB36.1143°320
RRAMENSKOYE NDB37.1121°760
LOKLIMOVSK NDB38173°10.050
DMDDOMODEDOVO (MOSCOW) VOR/DME39142°113.30
RTRAMENSKOYE NDB39121°370
DODOMODEDOVO (MOSCOW) NDB39.1142°659
DRSKURYGINO NDB46.4186°415
IKMDME48.1211°111.60
WZKAMENKA NDB48.1211°230
DKGLOTAYEVO NDB50.6157°
GLWDME50.6157°113.50
AOAKSINYINO NDB57.4134°732

Departure and arrival routes

Transition altitude3936ft
SID end pointsdistanceoutbound heading
RW06C
 RILP3F, RILP3E60mi43°
 OLMU3F, OLMU3E71mi87°
 KOGO3F, KOGO3E75mi90°
 TOGM3F, TOGM3E110mi135°
 EMGA3E, EMGA3F93mi165°
 SOTO3E, SOTO3F80mi213°
 LIDR3E, LIDR3F66mi263°
 TOKN3F, TOKN3E42mi290°
RW06L
 RILP3G60mi43°
 OLMU3G71mi87°
 KOGO3G75mi90°
 TOGM3G110mi135°
 EMGA3G93mi165°
 SOTO3G80mi213°
 LIDR3G66mi263°
 TOKN3G42mi290°
RW06R
 RILP3F, RILP3E60mi43°
 OLMU3E, OLMU3F71mi87°
 KOGO3E, KOGO3F75mi90°
 TOGM3F, TOGM3E110mi135°
 EMGA3F, EMGA3E93mi165°
 SOTO3E, SOTO3F80mi213°
 LIDR3E, LIDR3F66mi263°
 TOKN3E, TOKN3F42mi290°
RW24C
 RILP3H, RILP3J60mi43°
 OLMU3H, OLMU3J71mi87°
 KOGO3J, KOGO3H75mi90°
 TOGM3H, TOGM3J110mi135°
 EMGA3H, EMGA3J93mi165°
 SOTO3H, SOTO3J80mi213°
 LIDR3J, LIDR3H66mi263°
 TOKN3H, TOKN3J42mi290°
RW24L
 RILP3J, RILP3H60mi43°
 OLMU3H, OLMU3J71mi87°
 KOGO3H, KOGO3J75mi90°
 TOGM3J, TOGM3H110mi135°
 EMGA3H, EMGA3J93mi165°
 SOTO3H, SOTO3J80mi213°
 LIDR3J, LIDR3H66mi263°
 TOKN3J, TOKN3H42mi290°
RW24R
 RILP3K60mi43°
 OLMU3K71mi87°
 KOGO3K75mi90°
 TOGM3K110mi135°
 EMGA3K93mi165°
 SOTO3K80mi213°
 LIDR3K66mi263°
 TOKN3K42mi290°

STAR starting pointsdistanceinbound heading
ALL
 BUKU3E, BUKU3F80.618°
 DIPO3F, DIPO3E53.888°
 NAMI3E, NAMI3F48.8140°
 ROMT3F, ROMT3E68.1193°
 DIMG3F, DIMG3E80.5275°
 OLOP3G, OLOP3F, OLOP3E116.3320°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06CKEZVU (149°)KEZVU 7000ft
TIRDE (10mi, 262°) 5000ft
DUFAR (9mi, 229°) 4000ft
AKFOL (6mi, 129°) 3000ft
VOTDO (6mi, 81°) 2500ft
 RNAVVOTDO 2500ft
EE632 (3mi, 81°) 2000ft
UUEE (6mi, 80°) 671ft
OLZON (10mi, 82°) 3000ft
RIMDE (7mi, 335°)
EE078 (5mi, 305°)
KEZVU (9mi, 261°) 7000ft
RW06LKEZVU (149°)KEZVU 7000ft
TIRDE (10mi, 262°) 5000ft
DUFAR (9mi, 229°) 4000ft
NIZUS (5mi, 128°) 3000ft
 RNAVNIZUS 3000ft
EE612 (5mi, 81°) 3000ft
22THR (5mi, 81°) 1330ft
UUEE (6mi, 86°) 650ft
(3821mi, 214°) 1700ft
EE018 (3828mi, 34°) 3000ft
KEZVU (9mi, 291°) 7000ft
RW06RKEZVU (149°)KEZVU 7000ft
TIRDE (10mi, 262°) 5000ft
DUFAR (9mi, 229°) 4000ft
KUSIP (6mi, 129°) 3000ft
ENKOZ (6mi, 81°) 2500ft
 RNAVENKOZ 2500ft
EE622 (3mi, 81°) 2000ft
UUEE (6mi, 79°) 676ft
(3821mi, 214°) 1500ft
EE057 (3825mi, 34°) 3000ft
OLZON (4mi, 57°) 3000ft
RIMDE (7mi, 335°)
EE078 (5mi, 305°)
KEZVU (9mi, 261°) 7000ft
RW24CKEZVU (149°)KEZVU 7000ft
EE078 (9mi, 81°) 5000ft
ARKUD (9mi, 119°) 4000ft
OLZON (5mi, 211°)
UMLOL (3mi, 262°) 2500ft
 RNAVUMLOL 2500ft
EE142 (3mi, 262°) 2000ft
UUEE (4mi, 264°) 675ft
AKFOL (15mi, 261°) 3000ft
DUFAR (6mi, 309°)
TIRDE (9mi, 49°)
KEZVU (10mi, 82°) 7000ft
RW24LKEZVU (149°)KEZVU 7000ft
EE078 (9mi, 81°) 5000ft
ARKUD (9mi, 119°) 4000ft
KUZUN (5mi, 210°)
ZUBHA (3mi, 262°) 2500ft
 RNAVZUBHA 2500ft
EE122 (3mi, 262°) 2000ft
UUEE (4mi, 265°) 671ft
(3821mi, 214°) 1400ft
EE245 (3811mi, 34°) 3000ft
AKFOL (9mi, 284°) 3000ft
DUFAR (6mi, 309°)
TIRDE (9mi, 49°)
KEZVU (10mi, 82°) 7000ft
RW24RKEZVU (149°)KEZVU 7000ft
EE078 (9mi, 81°) 5000ft
ARKUD (9mi, 119°) 4000ft
GENSI (4mi, 224°) 3000ft
 RNAVGENSI 3000ft
EE112 (5mi, 262°) 3000ft
18THR (5mi, 262°) 1200ft
UUEE (turn) 644ft
(3821mi, 214°) 1500ft
EE058 (3817mi, 34°) 3000ft
KEZVU (10mi, 62°) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUKU3EDENZAVHFright182 (2)°21000ft - 24000ft1.5min timedICAO rules
BUKU3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
BUKU3EULKEKVHFleft170 (350)°17000ft - 20000ft1.5min timedICAO rules
BUKU3FDENZAVHFright182 (2)°21000ft - 24000ft1.5min timedICAO rules
BUKU3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
BUKU3FLUNZAVHFleft133 (313)°7000ft - 10000ft1.0min timedICAO rules
BUKU3FULKEKVHFleft170 (350)°17000ft - 20000ft1.5min timedICAO rules
DIMG3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
DIMG3EMEFEDVHFleft72 (252)°22000ft - 28000ft1.5min timedICAO rules
DIMG3EPANZOVHFright117 (297)°15000ft - 20000ft1.5min timedICAO rules
DIMG3EVIVZOVHFleft72 (252)°22000ft - 28000ft1.5min timedICAO rules
DIMG3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
DIMG3FKNFIXleft174 (354)°11000ft - 13000ft1.0min timedICAO rules
DIMG3FMEFEDVHFleft72 (252)°22000ft - 28000ft1.5min timedICAO rules
DIMG3FPANZOVHFright117 (297)°15000ft - 20000ft1.5min timedICAO rules
DIMG3FVIVZOVHFleft72 (252)°22000ft - 28000ft1.5min timedICAO rules
DIPO3EDIPOPVHFleft257 (77)°15000ft - 19000ft1.5min timedICAO rules
DIPO3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
DIPO3ELASRAVHFleft251 (71)°11000ft - 14000ft1.0min timedICAO rules
DIPO3ELUNZAVHFleft133 (313)°7000ft - 10000ft1.0min timedICAO rules
DIPO3FDIPOPVHFleft257 (77)°15000ft - 19000ft1.5min timedICAO rules
DIPO3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
DIPO3FLASRAVHFleft251 (71)°11000ft - 14000ft1.0min timedICAO rules
DIPO3FLUNZAVHFleft133 (313)°7000ft - 10000ft1.0min timedICAO rules
NAMI3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
NAMI3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
NAMI3FTAZOLVHFright268 (88)°9000ft - 14000ft1.0min timedICAO rules
OLOP3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
OLOP3EOKPENVHFleft142 (322)°7000ft - 10000ft1.0min timedICAO rules
OLOP3ERIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
OLOP3ESURZAVHFright123 (303)°25000ft - 26000ft1.5min timedICAO rules
OLOP3EULKEKVHFleft170 (350)°17000ft - 20000ft1.5min timedICAO rules
OLOP3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
OLOP3FLUNZAVHFleft133 (313)°7000ft - 10000ft1.0min timedICAO rules
OLOP3FOKPENVHFleft142 (322)°7000ft - 10000ft1.0min timedICAO rules
OLOP3FRIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
OLOP3FSURZAVHFright123 (303)°25000ft - 26000ft1.5min timedICAO rules
OLOP3FULKEKVHFleft170 (350)°17000ft - 20000ft1.5min timedICAO rules
OLOP3GALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
OLOP3GDMDNDBleft164 (344)°22000ft - 25000ft1.5min timedICAO rules
OLOP3GKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
OLOP3GKNFIXleft174 (354)°11000ft - 13000ft1.0min timedICAO rules
OLOP3GMASUSVHFleft247 (67)°17000ft - 21000ft1.5min timedICAO rules
OLOP3GOKPENVHFleft142 (322)°7000ft - 10000ft1.0min timedICAO rules
OLOP3GPANZOVHFright117 (297)°15000ft - 20000ft1.5min timedICAO rules
OLOP3GRIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
ROMT3EKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
ROMT3ETAZOLVHFright268 (88)°9000ft - 14000ft1.0min timedICAO rules
ROMT3FBOZAKVHFleft360 (180)°9000ft - 14000ft1.0min timedICAO rules
ROMT3FKEZVUVHFleft351 (171)°3000ft - 10000ft1.0min timedICAO rules
ROMT3FTAZOLVHFright268 (88)°9000ft - 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
