Airports for X-Plane

Syktyvkar

Airport details

CountryRussian Federation
StateKomi Republic
RegionUU
AirspaceSyktyvkar Ctr
MunicipalitySyktyvkar
Elevation340ft (104m)
TimezoneGMT +3
Coordinates61.64695, 50.84500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUYY
IATA codeSCW
FAA coden/a

Communication

Syktyvkar ATIS128.800
Syktyvkar Tower124.600

Approach frequencies

ILS-cat-IRW36108.318.00mi
ILS-cat-IRW18111.718.00mi
3° GSRW36108.318.00mi
3° GSRW18111.718.00mi
Nearby Points of Interest:
Syktyvkar Theological College

Runway info

Runway 18 / 36
 length2498m (8196ft)
 bearing220° / 40°
 width45m (148ft)
 surfaceasphalt
 blast zone46m (151ft) / 49m (161ft)

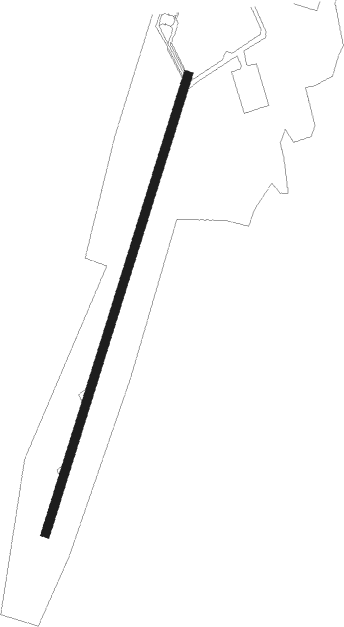

Airport layout


Parking locations

 10  11  12  13  14  15  16  17
 18  19  1B  2  4  5  6  6A
 7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
SSYKTYVKAR NDB1.140°705
PSYKTYVKAR NDB1.2220°705
PWSYKTYVKAR NDB2.7219°345
SRSYKTYVKAR NDB340°345

Departure and arrival routes

Transition altitude2635ft
SID end pointsdistanceoutbound heading
RW18
 NILI1F, NILI1C43mi6°
 TELR1F, TELR1C43mi56°
 UGBA1C, UGBA1F43mi76°
 DIKE1C, DIKE1F43mi82°
 SUGE1F, SUGE1C43mi107°
 PENI1F, PENI1C43mi152°
 GIRA1F, GIRA1C43mi205°
 DIKU1F, DIKU1C43mi229°
 RATU1C, RATU1F43mi254°
 ALAK1C, ALAK1F43mi260°
 ODRI1C, ODRI1F43mi277°
 ASNA1F, ASNA1C43mi283°
 REKR1F, REKR1C43mi314°
RW36
 NILI1E, NILI1A43mi6°
 TELR1E, TELR1A43mi56°
 UGBA1A, UGBA1E43mi76°
 DIKE1E, DIKE1A43mi82°
 SUGE1E, SUGE1A43mi107°
 PENI1E, PENI1A43mi152°
 GIRA1E, GIRA1A43mi205°
 DIKU1A, DIKU1E43mi229°
 RATU1E, RATU1A43mi254°
 ALAK1A, ALAK1E43mi260°
 ODRI1E, ODRI1A43mi277°
 ASNA1A, ASNA1E43mi283°
 REKR1E, REKR1A43mi314°

STAR starting pointsdistanceinbound heading
RW18
 GIRA1M, GIRA1J43.125°
 DIKU1J, DIKU1M43.049°
 ALAK1J, ALAK1M43.080°
 ADKO1M43.085°
 ASNA1J, ASNA1M43.0103°
 REKR1M, REKR1J43.0134°
 NILI1M43.1186°
 TELR1M43.0236°
 UGBA1M43.0256°
 DIKE1M43.0262°
 SUGE1J, SUGE1M43.0287°
 PENI1M43.1332°
RW36
 GIRA1G, GIRA1L43.125°
 DIKU1L, DIKU1G43.049°
 ALAK1G, ALAK1L43.080°
 ADKO1G, ADKO1L43.085°
 ASNA1G, ASNA1L43.0103°
 REKR1L, REKR1G43.0134°
 NILI1L, NILI1G43.1186°
 TELR1L, TELR1G43.0236°
 UGBA1G, UGBA1L43.0256°
 DIKE1G, DIKE1L43.0262°
 SUGE1L43.0287°
 PENI1L, PENI1G43.1332°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18YY006 (164°)YY006 2300ft
YY009 (6mi, 101°) 2300ft
RW18YY007 (220°)YY007 2300ft
YY009 (6mi, 220°) 2300ft
RW18YY008 (249°)YY008 2300ft
YY009 (6mi, 281°) 2300ft
 RNAVYY009 2300ft
YY010 (5mi, 220°) 1900ft
UUYY (6mi, 220°) 360ft
(4357mi, 220°) 1600ft
YY020 (4365mi, 40°)
YY008 (5mi, 40°) 2300ft
RW36YY001 (344°)YY001 2100ft
YY004 (6mi, 281°) 2100ft
RW36YY002 (40°)YY002 2100ft
YY004 (6mi, 40°) 2100ft
RW36YY003 (69°)YY003 2100ft
YY004 (6mi, 101°) 2100ft
 RNAVYY004 2100ft
YY005 (5mi, 40°) 1900ft
UUYY (5mi, 40°) 382ft
(4357mi, 220°) 1600ft
YY021 (4356mi, 40°)
YY001 (5mi, 220°) 2100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADKO1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
ADKO1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
ALAK1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
ALAK1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
ASNA1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
ASNA1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
DIKE1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
DIKE1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
DIKE1LYY001VHFright184 (4)°> 1900ft1.0min timed250
DIKE1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
DIKU1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
DIKU1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
DIKU1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
GIRA1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
GIRA1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
GIRA1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
NILI1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
NILI1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
PENI1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
PENI1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
PENI1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
REKR1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
REKR1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
SUGE1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
SUGE1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
SUGE1LYY001VHFright184 (4)°> 1900ft1.0min timed250
SUGE1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
TELR1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
TELR1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
TELR1LYY001VHFright184 (4)°> 1900ft1.0min timed250
UGBA1GPWFIXright184 (4)°> 2100ft1.0min timedICAO rules
UGBA1JSRFIXleft4 (184)°> 2300ft1.0min timedICAO rules
UGBA1LYY001VHFright184 (4)°> 1900ft1.0min timed250
UGBA1MYY008VHFleft4 (184)°> 1900ft1.0min timed250
*) magnetic outbound (inbound) holding course
