Airports for X-Plane

Kazan

Airport details

CountryRussian Federation
StateTatarstan
RegionUW
AirspaceSamara Ctr
MunicipalityСтолбищенское сельское поселение
Elevation411ft (125m)
TimezoneGMT +3
Coordinates55.60695, 49.28028
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUWKD
IATA codeKZN
FAA coden/a

Communication

Kazan ATIS126.800
Kazan TAXIING121.700
Kazan Tower120.300
Kazan RADAR119.400
Kazan RADAR129.000
Kazan RADAR124.000

Approach frequencies

ILS-cat-IIRW11110.518.00mi
ILS-cat-IRW29111.718.00mi
3° GSRW11110.518.00mi
3° GSRW29111.718.00mi
Nearby Points of Interest:
Ascension Monastery, Kazan
-
Tatarstan Street 14, Kazan
-
Mukhammadia
-
Kazan Art College
-
Buildings of Kazan University
-
Karetnikov House, Kazan
-
Klyachkin clinics
-
Zemlyanoy House (Kazan)
-
Category:Sveshnikov house (Kazan, Kavi Nadzhmi street)
-
Mergasov House
-
Trade arcade complex, Kazan
-
Trade Arcade, Kazan
-
Checkmaryov (Kamenev) House, Kazan
-
Kazansky Bogoroditsky Monastery

Runway info

Runway 11L / 29R
 length3717m (12195ft)
 bearing111° / 291°
 width44m (144ft)
 surfaceconcrete
 displ threshold255m (837ft) / 0m (0ft)
 blast zone0m (0ft) / 48m (157ft)
Runway 11 / 29
 length3746m (12290ft)
 bearing111° / 291°
 width45m (148ft)
 surfaceconcrete
 blast zone72m (236ft) / 72m (236ft)

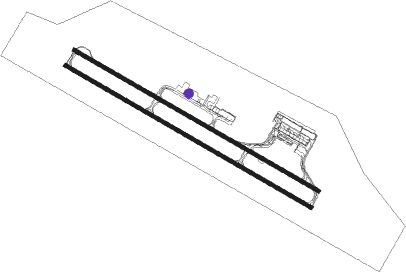

Airport layout - parking location 41


Taxiway locations

 A  B  C  D  E  H  MAIN
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  22A
 23  24  28  3  39  4  41  42
 43  44  45  46  47  48  5  5+
 6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
KZNKAZAN VOR/DME0.2260°112.70
BLKAZAN NDB1.4113°965
AMKAZAN NDB1.7290°475
PSKAZAN NDB3292°292
RDMATAKI DME48.4138°115.65
RDBAZARNYYE-MATAKI NDB48.5139°445

Departure and arrival routes

Transition altitude3363ft
SID end pointsdistanceoutbound heading
RW11
 RIMI1G, RIMI1D, RIMI1A27mi88°
 INTA1A, INTA1D, INTA1G27mi118°
 SONU1G, SONU1D, SONU1A27mi201°
 APTA1A, APTA1D, APTA1G27mi258°
RW29
 RIMI1J, RIMI1E, RIMI1B, RIMI1H27mi88°
 INTA1B, INTA1E, INTA1H27mi118°
 SONU1C, SONU1B, SONU1F, SONU1J, SONU1H, SONU1E27mi201°
 APTA1B, APTA1H, APTA1E27mi258°

STAR starting pointsdistanceinbound heading
RW11
 SONU1S, SONU1R, SONU1P, SONU1M, SONU1K26.921°
 KORO1K, KORO1M, KORO1P, KORO1R26.991°
 ORTI1R, ORTI1P, ORTI1M, ORTI1K26.9288°
 TONS1R, TONS1P, TONS1M, TONS1K26.9336°
RW29
 SONU1N, SONU1Q, SONU1T, SONU1L26.921°
 KORO1Q, KORO1N, KORO1L, KORO1T26.991°
 ORTI1T, ORTI1N, ORTI1L26.9288°
 TONS1T, TONS1Q, TONS1N, TONS1L26.9336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11KD001 (93°)KD001 4000ft
KD002 (6mi, 50°) 2700ft
 RNAVKD002 2700ft
KD003 (6mi, 111°) 1700ft
KD004 (3mi, 111°) 632ft
KD005 (4mi, 111°)
KD006 (10mi, 268°)
KD001 (6mi, 291°) 2000ft
KD001 (turn) 2000ft
RW29KD007 (319°)KD007 4000ft
KD009 (6mi, 50°) 2700ft
RW29KD008 (291°)KD008 4000ft
KD009 (6mi, 291°) 2700ft
 RNAVKD009 2700ft
KD010 (6mi, 291°) 1700ft
KD011 (3mi, 291°) 598ft
KD012 (4mi, 291°)
KD013 (10mi, 149°)
KD007 (6mi, 111°) 4000ft
KD007 (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KORO1KAMFIXleft119 (299)°3100ft - 7000ft1.0min timed190
KORO1LBLFIXleft119 (299)°3100ft - 7000ft1.0min timed190
KORO1MKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
KORO1NKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
KORO1QD260JVHFright259 (79)°2000ft - 7000ftDME 5.0mi200
KORO1RKD001VHFleft201 (21)°2000ft - 7000ft1.0min timed185
KORO1TKD007VHFright201 (21)°4000ft - 7000ft1.0min timedICAO rules
ORTI1KAMFIXleft119 (299)°3100ft - 7000ft1.0min timed190
ORTI1LBLFIXleft119 (299)°3100ft - 7000ft1.0min timed190
ORTI1MKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
ORTI1NKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
ORTI1PD105JVHFleft105 (285)°2200ft - 7000ftDME 5.8mi240
ORTI1RKD001VHFleft201 (21)°2000ft - 7000ft1.0min timed185
SONU1KAMFIXleft119 (299)°3100ft - 7000ft1.0min timed190
SONU1LBLFIXleft119 (299)°3100ft - 7000ft1.0min timed190
SONU1MKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
SONU1NKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
SONU1RKD001VHFleft201 (21)°2000ft - 7000ft1.0min timed185
SONU1SKD001VHFleft201 (21)°2000ft - 7000ft1.0min timed185
SONU1TKD007VHFright201 (21)°4000ft - 7000ft1.0min timedICAO rules
TONS1KAMFIXleft119 (299)°3100ft - 7000ft1.0min timed190
TONS1LBLFIXleft119 (299)°3100ft - 7000ft1.0min timed190
TONS1MKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
TONS1NKZNNDBleft129 (309)°3100ft - 7000ft1.0min timed190
TONS1RKD001VHFleft201 (21)°2000ft - 7000ft1.0min timed185
*) magnetic outbound (inbound) holding course
