Airports for X-Plane

Ulyanovsk - Baratayevka

Airport details

CountryRussian Federation
StateUlyanovsk Oblast
RegionUW
AirspaceSamara Ctr
Municipalityгородской округ Ульяновск
Elevation449ft (137m)
TimezoneGMT +4
Coordinates54.26833, 48.22361
Magnetic var
Typeland
Available sinceX-Plane v10.35
ICAO codeUWLL
IATA codeULV
FAA coden/a

Communication

Baratayevka Ground Control121.800
Baratayevka Tower120.400

Approach frequencies

ILS-cat-IRW20111.318.00mi
ILS-cat-IRW02110.318.00mi
3° GSRW20111.318.00mi
3° GSRW02110.318.00mi
Nearby Points of Interest:
Noble Assembly Building, Ulyanovsk
-
Undorsky Mineral Spring

Runway info

Runway 02 / 20
 length3095m (10154ft)
 bearing47° / 227°
 width45m (148ft)
 surfaceconcrete

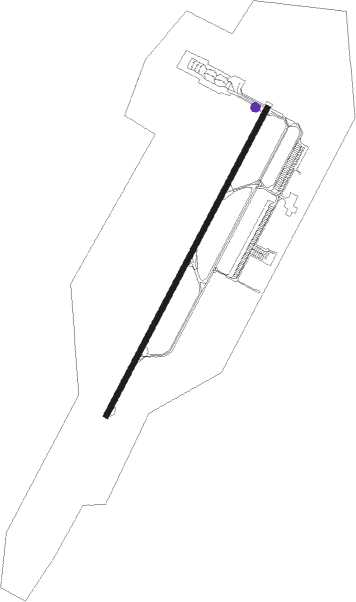

Airport layout - taxiway location B1


Taxiway locations

 A1  A2  A3  A4  B1  H1  H2  H3
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
BMKULYANOVSK-BARATAYEVKA VOR/DME0.3161°113.40
MBARATAYEVKA (ULYANOVSK) NDB1.2227°680
LBARATAYEVKA (ULYANOVSK) NDB1.547°680
LSBARATAYEVKA (ULYANOVSK) NDB3.147°332
ULVOSTOCHNY (ULYANOVSK) NDB19.181°408
UVOSTOCHNY (ULYANOVSK) NDB20.379°830
UWSULYANOVSK VOR/DME2277°113.70
WVOSTOCHNY (ULYANOVSK) NDB23.375°830
WNVOSTOCHNY (ULYANOVSK) NDB24.774°408
DWNIKOLSKOYE NDB36.2103°995
NKDME-ILS36.2103°108.10

Departure and arrival routes

Transition altitude3415ft
SID end pointsdistanceoutbound heading
RW02
 MOKE1L, MOKE1J, MOKE1G36mi4°
 AGUT1L, AGUT1J, AGUT1G39mi44°
 RUBE1L, RUBE1J, RUBE1G38mi128°
 NEPN1L, NEPN1J, NEPN1G37mi214°
 TERD1L, TERD1J, TERD1G48mi269°
 ARPU1L, ARPU1J, ARPU1G66mi288°
 OTPI1L, OTPI1J, OTPI1G53mi296°
RW20
 MOKE1M, MOKE1K, MOKE1H36mi4°
 AGUT1M, AGUT1K, AGUT1H39mi44°
 RUBE1H, RUBE1K, RUBE1M38mi128°
 NEPN1M, NEPN1K, NEPN1H37mi214°
 TERD1H, TERD1K, TERD1M48mi269°
 ARPU1H, ARPU1M, ARPU1K66mi288°
 OTPI1M, OTPI1K, OTPI1H53mi296°

STAR starting pointsdistanceinbound heading
RW02
 NEPN1A, NEPN1C, NEPN1E36.534°
 ULPO1A, ULPO1E, ULPO1C46.564°
 TERD1C, TERD1E, TERD1A47.989°
 OTPI1E, OTPI1C, OTPI1A53.3116°
 AGUT1A, AGUT1E, AGUT1C38.7224°
 REDM1E, REDM1C, REDM1A35.5291°
RW20
 NEPN1F, NEPN1D, NEPN1B36.534°
 ULPO1B, ULPO1D, ULPO1F46.564°
 TERD1F, TERD1D, TERD1B47.989°
 OTPI1B, OTPI1D, OTPI1F53.3116°
 AGUT1D, AGUT1B, AGUT1F38.7224°
 REDM1Z, REDM1B, REDM1D, REDM1F35.5291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02LL001 (7°)LL001
LL003 (6mi, 292°) 2100ft
RW02LL002 (72°)LL002 2300ft
LL003 (6mi, 110°) 2100ft
 RNAVLL003 2100ft
LL004 (5mi, 47°) 2100ft
UWLL (6mi, 47°) 499ft
(4030mi, 222°) 850ft
LL005 (4032mi, 42°)
LL006 (10mi, 258°)
LL002 (5mi, 227°) 2300ft
RW20LL008 (187°)LL008 2300ft
LL010 (6mi, 110°) 2000ft
RW20LL009 (252°)LL009 2300ft
LL010 (6mi, 290°) 2000ft
 RNAVLL010 2000ft
LL011 (5mi, 227°) 2000ft
UWLL (6mi, 227°) 427ft
(4030mi, 222°) 850ft
LL012 (4029mi, 42°)
LL013 (10mi, 351°)
LL008 (5mi, 47°) 2300ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGUT1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
AGUT1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
AGUT1CLL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
AGUT1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
AGUT1ELL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
AGUT1FLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
NEPN1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
NEPN1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
NEPN1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
NEPN1FLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
OTPI1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
OTPI1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
OTPI1CLL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
OTPI1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
OTPI1ELL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
OTPI1FLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
REDM1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
REDM1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
REDM1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
TERD1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
TERD1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
TERD1CLL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
TERD1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
TERD1ELL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
TERD1FLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
ULPO1AMFIXright289 (109)°3000ft - 14000ft1.0min timed230
ULPO1BLSFIXright357 (177)°2300ft - 10000ft1.0min timed215
ULPO1DLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
ULPO1ELL002VHFleft229 (49)°> 2200ftDME 7.5miICAO rules
ULPO1FLL008VHFleft289 (109)°2300ft - 14000ft1.0min timed270
*) magnetic outbound (inbound) holding course
