Airports for X-Plane

Saratov/saburovka - Saratov-gagarin

Airport details

CountryRussian Federation
StateSaratov Oblast
Region
AirspaceSamara Ctr
MunicipalityДубковское сельское поселение
Elevation103ft (31m)
TimezoneGMT +4
Coordinates51.71307, 46.14943
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUWSG
IATA codeGSV
FAA coden/a

Communication

Saratov-Gagarin ATIS Russian121.800
Saratov-Gagarin ATIS123.400
Saratov-Gagarin CTAF123.450
Saratov-Gagarin Apron RMP128.800
Saratov-Gagarin Ground119.000
Saratov-Gagarin Tower122.850
Saratov-Gagarin Approach133.300

Approach frequencies

ILS-cat-IIRW26108.7518.00mi
ILS-cat-IIRW08108.5518.00mi
3° GSRW26108.7518.00mi
3° GSRW08108.5518.00mi

Runway info

Runway 08 / 26
 length2999m (9839ft)
 bearing91° / 271°
 width45m (148ft)
 surfaceconcrete
 blast zone48m (157ft) / 48m (157ft)

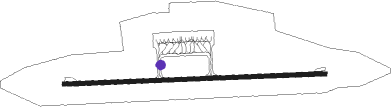

Airport layout - taxiway location A


Taxiway locations

 A  B
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
GRGAGARIN (SARATOV) NDB0.3272°479
RKGAGARIN VOR/DME1.394°113
SASARATOV NDB9.4223°479
USYELSHANKA NDB1168°970
KRKRASNOARMEYSK NDB45.1217°932

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW08
 EPIK1J, EPIK1E, EPIK1C18mi5°
 OGRE1E, OGRE1J, OGRE1C21mi42°
 BEBN1J, BEBN1E, BEBN1C22mi66°
 TIBD1J, TIBD1C, TIBD1E25mi75°
 OKLA1C, OKLA1J, OKLA1E29mi84°
 KR1C, KR1E, KR1J, KR1W, KR1Y45mi217°
 LUTI1C, LUTI1J, LUTI1E15mi281°
 SOKU1J, SOKU1E, SOKU1C21mi306°
RW26
 EPIK1K, EPIK1D, EPIK1F18mi5°
 OGRE1F, OGRE1K, OGRE1D21mi42°
 BEBN1K, BEBN1D, BEBN1F22mi66°
 TIBD1D, TIBD1K, TIBD1F25mi75°
 OKLA1F, OKLA1D, OKLA1K29mi84°
 KR1X, KR1K, KR1D, KR1F, KR1Z45mi217°
 LUTI1Z, LUTI1D, LUTI1F, LUTI1K, LUTI1X15mi281°
 SOKU1F, SOKU1K, SOKU1D21mi306°

STAR starting pointsdistanceinbound heading
ALL
 KR1A, KR1B45.137°
 SOKU1B, SOKU1A21.2126°
 EPIK1A, EPIK1B17.9185°
 OGRE1A, OGRE1B20.5222°
 TIBD1B, TIBD1A25.2255°
 OKLA1B, OKLA1A29.3264°
RW08
 KR1G45.137°
 SOKU1G21.2126°
 EPIK1G17.9185°
 OGRE1G20.5222°
 TIBD1G25.2255°
 OKLA1G29.3264°
RW26
 KR1H45.137°
 SOKU1H21.2126°
 EPIK1H17.9185°
 OGRE1H20.5222°
 TIBD1H25.2255°
 OKLA1H29.3264°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08SG083 (111°)SG083 3000ft
SG082 (7mi, 152°) 2000ft
 RNAVSG082 2000ft
SG081 (4mi, 91°) 1500ft
22THR (2mi, 91°) 820ft
UWSG (2mi, 91°) 138ft
(3879mi, 222°) 700ft
SG084 (3878mi, 42°)
SG083 (5mi, 271°) 3000ft
RW26SG263 (256°)SG263 3000ft
SG262 (6mi, 214°) 2000ft
RW26SG268 (267°)SG268 3000ft
SG262 (6mi, 259°) 2000ft
 RNAVSG262 2000ft
SG261 (5mi, 271°) 1500ft
UWSG (6mi, 271°) 153ft
(3879mi, 222°) 700ft
SG267 (3888mi, 42°)
SG263 (5mi, 91°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EPIK1ARKNDBleft261 (81)°> 2400ft1.0min timed230
EPIK1BGRFIXleft261 (81)°> 2400ft1.0min timed230
EPIK1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
EPIK1HSG263VHFleft12 (192)°> 2000ft1.0min timed230
KR1ARKNDBleft261 (81)°> 2400ft1.0min timed230
KR1BGRFIXleft261 (81)°> 2400ft1.0min timed230
KR1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
KR1HSG263VHFleft12 (192)°> 2000ft1.0min timed230
OGRE1ARKNDBleft261 (81)°> 2400ft1.0min timed230
OGRE1BGRFIXleft261 (81)°> 2400ft1.0min timed230
OGRE1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
OGRE1HSG263VHFleft12 (192)°> 2000ft1.0min timed230
OKLA1ARKNDBleft261 (81)°> 2400ft1.0min timed230
OKLA1BGRFIXleft261 (81)°> 2400ft1.0min timed230
OKLA1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
SOKU1ARKNDBleft261 (81)°> 2400ft1.0min timed230
SOKU1BGRFIXleft261 (81)°> 2400ft1.0min timed230
SOKU1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
SOKU1HSG263VHFleft12 (192)°> 2000ft1.0min timed230
TIBD1ARKNDBleft261 (81)°> 2400ft1.0min timed230
TIBD1BGRFIXleft261 (81)°> 2400ft1.0min timed230
TIBD1GSG083VHFleft331 (151)°> 2200ft1.0min timed230
*) magnetic outbound (inbound) holding course
