Airports for X-Plane

Udaipur

Airport details

CountryIndia
StateRajasthan
RegionVA
AirspaceMumbai Ctr
MunicipalityVallabhnagar Tehsil
Elevation1684ft (513m)
TimezoneGMT +5.5
Coordinates24.61756, 73.89445
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVAUD
IATA codeUDR
FAA coden/a

Communication

Udaipur Tower122.300

Approach frequencies

ILS-cat-IRW26109.918.00mi
3° GSRW26109.918.00mi
Nearby Points of Interest:
Sahastra Bahu Temples
-
Chetak Smarak
-
Haldighati Pass

Runway info

Runway 08 / 26
 length2283m (7490ft)
 bearing83° / 263°
 width46m (150ft)
 surfaceasphalt
 displ threshold150m (492ft) / 0m (0ft)
 blast zone220m (722ft) / 250m (820ft)

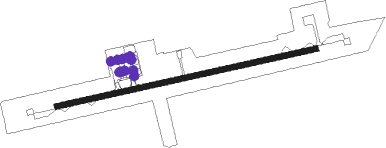

Airport layout - parking location Gate


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
UUDUDAIPUR VOR/DME0.1193°115.90
LUUDAIPUR NDB0.2329°384
PRAPRATAPGARH VOR/DME58.1124°114.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26-YUD263 (231°)UD263 5400ft
UD261 (8mi, 171°) 4000ft
RW26-YUD266 (305°)UD266 5400ft
UD016 (6mi, 10°) 4000ft
UD261 (5mi, 351°) 4000ft
 RNAVUD261 4000ft
UD269 (5mi, 262°) 3700ft
VAUD (7mi, 262°) 1714ft
UD267 (6mi, 262°)
UD268 (8mi, 179°)
UD266 (18mi, 92°) 5400ft
UD266 (turn) 5400ft
