Airports for X-Plane

Gaya

Airport details

CountryIndia
StateBihar
RegionVE
AirspaceKolkata Ctr
MunicipalityGaya
Elevation381ft (116m)
TimezoneGMT +5.5
Coordinates24.74806, 84.94250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVEGY
IATA codeGAY
FAA coden/a

Communication

Gaya ATIS127.050
Gaya Tower118.450
Gaya ApproachR118.450
Gaya Departure118.450

Approach frequencies

ILS-cat-IRW28109.318.00mi
3° GSRW28109.318.00mi
Nearby Points of Interest:
Lomas Rishi Cave

Runway info

Runway 10 / 28
 length2285m (7497ft)
 bearing103° / 283°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 77m (253ft)

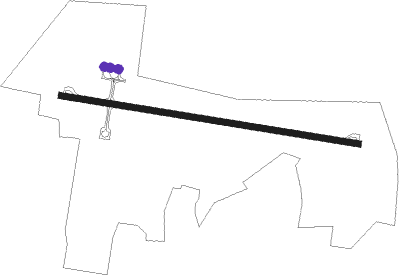

Airport layout - parking location Gate


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
GGCGAYA VOR/DME0.3174°115
PPTPATNA VOR/DME51.210°112.10

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW28-YGY423 (258°)GY423 2900ft
GY422 (7mi, 195°) 2900ft
RW28-YGY424 (283°)GY424 2900ft
GY422 (7mi, 283°) 2900ft
RW28-YGY425 (309°)GY425 2900ft
GY422 (7mi, 15°) 2900ft
 RNAVGY422 2900ft
GY421 (5mi, 283°) 2700ft
VEGY (8mi, 283°) 432ft
GY431 (6mi, 281°)
GY432 (7mi, 195°)
GY425 (19mi, 103°)
GY422 (7mi, 15°) 2900ft
GY422 (turn) 2900ft
