Airports for X-Plane

Kathmandu - Kathmandu Tribhuvan Intl

Airport details

CountryNepal
StateBagmati
RegionVN
AirspaceKathmandu Ctr
MunicipalityKathmandu
Elevation4390ft (1338m)
TimezoneGMT +5.75
Coordinates27.69716, 85.35793
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVNKT
IATA codeKTM
FAA coden/a

Communication

Kathmandu Tribhuvan Intl KATHMANDU ATIS127.000
Kathmandu Tribhuvan Intl KATHMANDU Ground Control121.900
Kathmandu Tribhuvan Intl KATHMANDU Tower118.500
Kathmandu Tribhuvan Intl KATHMANDU Tower118.100
Kathmandu Tribhuvan Intl KATHMANDU Approach120.600
Kathmandu Tribhuvan Intl KATHMANDU Approach125.100
Nearby Points of Interest:
Kathmandu Valley
-
Kirtipur
-
Bajrayogini Temple
-
Panauti
-
Khokana

Runway info

Runway 02 / 20
 length3090m (10138ft)
 bearing24° / 204°
 width45m (148ft)
 surfaceasphalt
 displ threshold298m (978ft) / 2m (7ft)

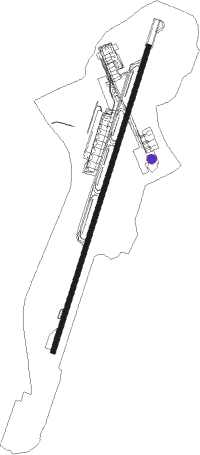

Airport layout - parking location Sita


Taxiway locations

 A  B  C  D  E  F  G  H
 J
Parking locations

 Buddha  D-1  D-10  D-11  D-12  D-13  D-14  D-15
 D-16  D-17  D-2  D-3  D-4  D-5  D-6  D-7
 D-8  Gate  Helipad  R1  R2  R3  R4  Sita

Nearby beacons

codeidentifierdistbearingfrequency
KAMKATHMANDU NDB0.3233°318
KTMKATHMANDU VOR/DME1.4202°113.20
LTHTHECHO (KATHMANDU) NDB5.4202°230
LNCNALINCHOWK (KATHMANDU) NDB6.3114°252
SMRSIMARA VOR/DME37.7215°112.90
BHPBHARATPUR NDB49.3269°295
JKPJANAKPUR NDB66.3150°287

Departure and arrival routes

Transition altitude13500ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW02
 IGRI1B51mi149°
 DARK1E, DARK1D, DARK1C38mi215°
RW20
 IGRI1A51mi149°
 DARK1A, DARK1B38mi215°

STAR starting pointsdistanceinbound heading
ALL
 ROMEO41.624°
 SMR37.735°
 NAYAK25.587°
 BIDUR24.9107°
RW02
 ROME2R41.624°
 SMRA2R37.735°
 KMTI1R49.9282°
 DLAL1R30.1283°
 IGRS1R15.0288°
 DARM1R24.7305°
 MUNA1R36.7339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02DANFE (69°)DANFE 10500ft
KT540 (2mi, 137°)
KT538 (8mi, 109°)
KT536 (7mi, 83°) 10500ft
KT534 (9mi, 83°)
KT532 (3mi, 55°)
KT530 (2mi, 4°) 8700ft
RW02RATAN (24°)RATAN 10500ft
GURAS (7mi, 24°)
KT532 (2mi, 24°)
KT530 (2mi, 4°) 8700ft
 RNAVKT530 8700ft
KT528 (2mi, 343°) 8240ft
DOVAN (4mi, 14°) 7100ft
KT524 (1mi, 43°) 6740ft
KT522 (2mi, 53°) 6260ft
KT520 (3mi, 45°) 5280ft
VNKT (4mi, 23°) 4370ft
KT590 (turn)
KT592 (6mi, 119°)
KT812 (5mi, 258°)
KT814 (2mi, 291°) 7500ft
KT914 (7mi, 291°)
DARKE (7mi, 291°)
KT890 (4mi, 280°)
KT892 (8mi, 270°)
KT894 (6mi, 251°)
KT896 (6mi, 232°)
KT898 (11mi, 185°)
DANFE (2mi, 137°) 10500ft
DANFE (turn) 10500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DARM1RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
DLAL1RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
IGRS1RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
KMTI1RMUNALVHFleft90 (270)°10500ft - 19000ft1.0min timed230
KMTI1RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
MUNA1RMUNALVHFleft90 (270)°10500ft - 19000ft1.0min timed230
MUNA1RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
ROME2RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
ROMEOGURASVHFleft202 (22)°11500ft - 13500ft1.0min timed230
SMRGURASVHFleft202 (22)°11500ft - 13500ft1.0min timed230
SMRA2RRATANVHFleft202 (22)°10500ft - 19000ft1.0min timed230
*) magnetic outbound (inbound) holding course
