Airports for X-Plane

Bangalore

Airport details

CountryIndia
StateKarnataka
RegionVO
AirspaceChennai Ctr
MunicipalityBengaluru
Elevation2912ft (888m)
TimezoneGMT +5.5
Coordinates12.95336, 77.66145
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVOBG
IATA coden/a
FAA coden/a

Communication

Bangalore ATIS128.250
Bangalore Tower123.500
Bangalore Approach127.700
Bangalore Approach122.700

Approach frequencies

ILS-cat-IRW27110.518.00mi
3° GSRW27110.518.00mi

Runway info

Runway 09 / 27
 length3322m (10899ft)
 bearing85° / 265°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

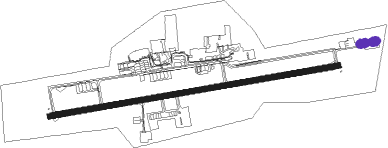

Airport layout - parking location Hanger


Taxiway locations

 A  E1  M  M1  M2
Parking locations

 Bay  Cargo  GA  H1  H10  H11  H2  H3
 H4  H5  H6  H7  H8  H9  Hanger  Mil

Nearby beacons

codeidentifierdistbearingfrequency
BBGBENGALURU VOR/DME1.1100°115.50
BIABENGALURU VOR/DME15.716°116.80
BIBBENGALURU VOR/DME30.730°114.50
