Airports for X-Plane

Bangalore - Kempegowda Intl

Airport details

CountryIndia
StateKarnataka
RegionVO
AirspaceChennai Ctr
MunicipalityDevanahalli taluk
Elevation3000ft (914m)
TimezoneGMT +5.5
Coordinates13.20524, 77.70518
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVOBL
IATA codeBLR
FAA coden/a

Communication

Kempegowda Intl Bangalore Ground121.650
Kempegowda Intl Bangalore Tower124.350
Kempegowda Intl Bangalore Approach121.250

Approach frequencies

ILS-cat-IIIRW09R109.918.00mi
ILS-cat-IIIRW27L111.518.00mi
ILS-cat-IRW09L109.318.00mi
ILS-cat-IRW27R108.318.00mi
3° GSRW09L109.318.00mi
3° GSRW09R109.918.00mi
3° GSRW27R108.318.00mi
3° GSRW27L111.518.00mi

Runway info

Runway 9R / 27L
 length3993m (13100ft)
 bearing90° / 270°
 width55m (180ft)
 surfaceconcrete
 blast zone60m (197ft) / 62m (203ft)
Runway 09L / 27R
 length3994m (13104ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 blast zone63m (207ft) / 59m (194ft)

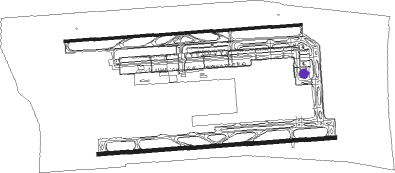

Airport layout - parking location 121


Taxiway locations

 A  A1  A11  A4  A6  A8  A9  B
 B1  B2  B3  B4  G  G1  H  H1
 H10  H2  H3  H4  H5  H6  H8  H9
 J  K  M  N1  N2  P  P1  Q
 R  S
Parking locations

 1  10  100  101  102  103  104  105
 106  107  108  109  11  110  111  113
 114  115  116  117  118  119  12  120
 121  122  123  13  14  15  16  17
 18  19  2  20  21  22  23  24
 25  26  27  28  29  3  30  31
 32  33  33W  34  35  36  37  38
 39  4  40  41  42  43  45  47
 49  5  501  502  503  504  505  506
 507  508  509  51  510  51W  52  52W
 53  53W  54  54W  55  56  57  58
 59  6  60  61  62  63  64  65
 66  67  68  69  69A  7  70  71
 71A  72  72A  73  74  74A  75  75A
 76  77  77A  78  78A  79  8  80
 80A  81  81A  82  83  83A  84  84A
 85  86  86A  9  90  91  92  93
 94  95  96  97  98  99  V69  V70

Nearby beacons

codeidentifierdistbearingfrequency
BIABENGALURU VOR/DME1.587°116.80
BBGBENGALURU VOR/DME15.4185°115.50
BIBBENGALURU VOR/DME1747°114.50
SAISRI SATYA SAI NDB56.95°241

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW09L
 SAI7A57mi5°
 LATI7A78mi11°
 ANIR7A73mi47°
 VEMB7A70mi71°
 TULN7A83mi100°
 AKTI7A69mi186°
 PEXE7A98mi265°
 GUNI7A, GUNI7L137mi292°
 OPAM7A91mi336°
 VAGP7A161mi338°
RW09R
 SAI7C57mi5°
 LATI7C78mi11°
 ANIR7C73mi47°
 VEMB7C70mi71°
 TULN7C83mi100°
 AKTI7C69mi186°
 PEXE7C98mi265°
 GUNI7M, GUNI7C137mi292°
 OPAM7C91mi336°
 VAGP7C161mi338°
RW27L
 SAI7D57mi5°
 LATI7D78mi11°
 ANIR7D, ANIR7Y73mi47°
 VEMB7Y, VEMB7D70mi71°
 TULN7D83mi100°
 AKTI7D69mi186°
 PEXE7D98mi265°
 GUNI7U, GUNI7D137mi292°
 OPAM7D91mi336°
 VAGP7D161mi338°
RW27R
 SAI7B57mi5°
 LATI7B78mi11°
 ANIR7S, ANIR7B73mi47°
 VEMB7B, VEMB7S70mi71°
 TULN7B83mi100°
 AKTI7B69mi186°
 PEXE7B98mi265°
 GUNI7B, GUNI7J137mi292°
 OPAM7B91mi336°
 VAGP7B161mi338°

STAR starting pointsdistanceinbound heading
RW09 (ALL)
 UGAB7E67.821°
 PEXE7E97.685°
 GUNI7E137.2112°
 SUSI7E, SUSI7J114.9128°
 RIKB7E141.4146°
 TELU7E63.9207°
 XIVI7E71.0266°
 LEKA7E129.7301°
 ADKA7E88.1337°
RW27 (ALL)
 UGAB7F67.821°
 PEXE7F, PEXE7N97.685°
 GUNI7F, GUNI7N137.2112°
 SUSI7L, SUSI7F114.9128°
 RIKB7F141.4146°
 TELU7F63.9207°
 XIVI7F71.0266°
 LEKA7F129.7301°
 ADKA7F88.1337°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09RYATPUK (85°)ATPUK
BL918 (5mi, 76°) 7000ft
BL117 (6mi, 90°) 5000ft
RW09RYBL454 (113°)BL454 7000ft
BL117 (7mi, 180°) 5000ft
RW09RYBL458 (74°)BL458 7000ft
BL918 (5mi, 0°) 7000ft
BL117 (6mi, 90°) 5000ft
 RNAVBL117 5000ft
BL116 (7mi, 90°) 5000ft
VOBL (7mi, 83°) 3025ft
(4687mi, 260°) 3700ft
BL912 (4690mi, 80°)
BL454 (18mi, 271°) 7000ft
BL454 (turn) 7000ft
RW27LYBL552 (246°)BL552
BL923 (7mi, 181°) 5000ft
RW27LYBL558 (290°)BL558
BL920 (5mi, 0°) 7000ft
BL923 (3mi, 271°) 5000ft
RW27LYDOXIT (259°)DOXIT
BL920 (14mi, 241°) 7000ft
BL923 (3mi, 271°) 5000ft
 RNAVBL923 5000ft
BL921 (6mi, 271°) 5000ft
VOBL (8mi, 277°) 3017ft
BL901 (15mi, 267°)
BL902 (7mi, 0°)
BL552 (29mi, 90°) 6000ft
BL552 (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADKA7EGURBIVHFright160 (340)°12000ft - 24000ft1.0min timed230
ADKA7FGURBIVHFright160 (340)°12000ft - 24000ft1.0min timed230
GUNI7FATPUKVHFleft267 (87)°15000ft - 24000ft1.0min timed230
GUNI7NATPUKVHFleft267 (87)°15000ft - 24000ft1.0min timed230
LEKA7EGURBIVHFright160 (340)°12000ft - 24000ft1.0min timed230
LEKA7FGURBIVHFright160 (340)°12000ft - 24000ft1.0min timed230
PEXE7EBL807VHFleft267 (87)°15000ft - 24000ft1.0min timed230
PEXE7FATPUKVHFleft267 (87)°15000ft - 24000ft1.0min timed230
PEXE7FBL807VHFleft267 (87)°15000ft - 24000ft1.0min timed230
PEXE7NATPUKVHFleft267 (87)°15000ft - 24000ft1.0min timed230
PEXE7NBL807VHFleft267 (87)°15000ft - 24000ft1.0min timed230
RIKB7EBL805VHFright329 (149)°15000ft - 24000ft1.0min timed230
RIKB7ERIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
RIKB7FBL805VHFright329 (149)°15000ft - 24000ft1.0min timed230
RIKB7FRIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
SUSI7EBL805VHFright329 (149)°15000ft - 24000ft1.0min timed230
SUSI7ERIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
SUSI7FBL805VHFright329 (149)°15000ft - 24000ft1.0min timed230
SUSI7FRIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
SUSI7JRIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
SUSI7LRIGBAVHFleft329 (149)°12000ft - 24000ft1.0min timed230
TELU7ERURPAVHFleft4 (184)°12000ft - 24000ft1.0min timed230
TELU7ETELUVVHFleft27 (207)°15000ft - 24000ft1.0min timed230
TELU7FRURPAVHFleft4 (184)°12000ft - 24000ft1.0min timed230
TELU7FTELUVVHFleft27 (207)°15000ft - 24000ft1.0min timed230
UGAB7EMUGPAVHFright204 (24)°12000ft - 24000ft1.0min timed230
UGAB7FMUGPAVHFright204 (24)°12000ft - 24000ft1.0min timed230
XIVI7EDOXITVHFright101 (281)°12000ft - 24000ft1.0min timed230
XIVI7FDOXITVHFright101 (281)°12000ft - 24000ft1.0min timed230
*) magnetic outbound (inbound) holding course
