Airports for X-Plane

Cochin - Cochin Intl

Airport details

CountryIndia
StateKerala
RegionVO
AirspaceChennai Ctr
MunicipalityAluva
Elevation26ft (8m)
TimezoneGMT +5.5
Coordinates10.15389, 76.40694
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVOCI
IATA codeCOK
FAA coden/a

Communication

Cochin Intl ATIS126.200
Cochin Intl Ground Control121.750
Cochin Intl Tower118.800
Cochin Intl Approach119.750

Approach frequencies

ILS-cat-IRW27110.318.00mi
ILS-cat-IRW09111.118.00mi
3° GSRW27110.318.00mi
3° GSRW09111.118.00mi

Runway info

Runway 09 / 27
 length3396m (11142ft)
 bearing88° / 268°
 width50m (164ft)
 surfaceasphalt
 blast zone59m (194ft) / 59m (194ft)

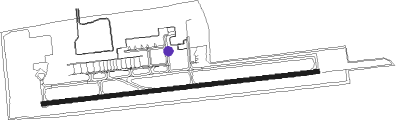

Airport layout - taxiway location G


Taxiway locations

 C  C1  C2  C3  C4  C5  D  F
 G  H
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
CIACOCHIN VOR/DME2264°113.50
CICOCHIN INTL NDB4.592°217
CIBCOCHIN VOR/DME16.398°117.30
CBCOIMBATORE NDB64.436°354
CLCCALICUT VOR/DME64.5335°116.50
CCBCOIMBATORE VOR/DME64.936°112.90

Departure and arrival routes

Transition altitude11000ft
SID end pointsdistanceoutbound heading
RW09
 CCB265mi36°
 DODSI238mi113°
 TUMLA251mi138°
 CLC265mi335°
RW27
 CCB5, CCB1A65mi36°
 DODS1A, DODS5A38mi113°
 TUML1A, TUML5A51mi138°
 POMA1A, POMAN5281mi292°
 CLC1A, CLC565mi335°

STAR starting pointsdistanceinbound heading
RW27
 CLC64.5155°
 LUNTA73.9176°
 CCBA, CCBB64.9216°
 DODSI37.7293°
 TUMLA51.1318°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW27-YCABOT (184°)CABOT 8700ft
CI512 (7mi, 140°)
CI510 (7mi, 140°) 5500ft
CI508 (6mi, 140°) 4700ft
CI506 (5mi, 155°) 4700ft
CI504 (5mi, 198°) 3800ft
RW27-YMESAT (294°)MESAT 5800ft
CI504 (10mi, 334°) 3800ft
RW27-YRAMSO (120°)RAMSO 4700ft
CI538 (18mi, 92°) 4700ft
CI508 (19mi, 97°) 4700ft
CI506 (5mi, 155°) 4700ft
CI504 (5mi, 198°) 3800ft
RW27-YTOPAK (240°)TOPAK 6500ft
CI514 (3mi, 205°) 5200ft
CI506 (3mi, 205°) 4700ft
CI504 (5mi, 198°) 3800ft
 RNAVCI504 3800ft
CI502 (5mi, 268°) 3000ft
VOCI (10mi, 269°) 80ft
CI550 (6mi, 266°)
RAMSO (20mi, 309°) 4700ft
RAMSO (turn) 4700ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CCBACABOTVHFright333 (153)°8700ft - 11000ft1.0min timed220
CLCCABOTVHFright333 (153)°8700ft - 11000ft1.0min timed220
DODSIMESATVHFleft157 (337)°5800ft - 12000ft1.0min timed220
LUNTACABOTVHFright333 (153)°8700ft - 11000ft1.0min timed220
TUMLAMESATVHFleft157 (337)°5800ft - 12000ft1.0min timed220
*) magnetic outbound (inbound) holding course
