Airports for X-Plane

Chennai - Chennai Intl

Airport details

CountryIndia
StateTamil Nadu
RegionVO
AirspaceChennai Ctr
MunicipalitySt. Thomas Mount Cantonment
Elevation49ft (15m)
TimezoneGMT +5.5
Coordinates12.99770, 80.17982
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVOMM
IATA codeMAA
FAA coden/a

Communication

Chennai Intl Chennai Intl ATIS127.450
Chennai Intl Chennai Intl Ground Control121.900
Chennai Intl Chennai Intl Tower118.100
Chennai Intl Chennai Intl Approach124.450
Chennai Intl Chennai Intl Approach127.900

Approach frequencies

ILS-cat-IRW25109.718.00mi
ILS-cat-IRW07110.318.00mi
3° GSRW25109.718.00mi
3° GSRW07110.318.00mi
Nearby Points of Interest:
Dhenupureeswarar Temple (Madambakkam)
-
Krishna's Butterball
-
Mahabalipuram temples
-
Mahishasuramardini Mandapa
-
Descent of the Ganges
-
Bhima Ratha
-
Dharmaraja Ratha
-
Matangesvara Temple
-
Vaikunda Perumal Temple, Uthiramerur

Runway info

Runway 07 / 25
 length3658m (12001ft)
 bearing69° / 249°
 width45m (148ft)
 surfaceasphalt
 blast zone147m (482ft) / 150m (492ft)
Runway 12 / 30
 length2891m (9485ft)
 bearing117° / 297°
 width45m (148ft)
 surfaceasphalt
 displ threshold778m (2552ft) / 0m (0ft)

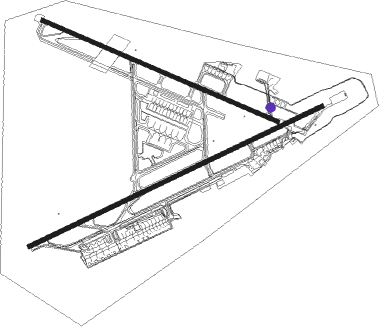

Airport layout - taxiway location M1


Taxiway locations

 B  C  E  F  G  K  L1  L3
 M  M1  N  P  P1  P2  Q  Q1
Parking locations

 Bay  Cargo  Cargp  Coast  Gate  GAX1  GAX2  GAX3

Nearby beacons

codeidentifierdistbearingfrequency
CNICHENNAI VOR/DME0.8296°114.90
MMVCHENNAI VOR/DME1.5248°112.50
MACHENNAI NDB6.6248°228
KKPKANCHEEPURAM VOR/DME30.1246°115.40
TTPTIRUPATI VOR/DME52.5316°115.70

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW07
 KOLCA85mi61°
 SIDAT199mi96°
 OXENA203mi114°
 DAMAD180mi182°
 PATTY101mi213°
 HALCO76mi283°
 DOHIA127mi339°
RW12
 KOLCA85mi61°
 SIDAT199mi96°
 OXENA203mi114°
 DAMAD180mi182°
 PATTY101mi213°
 HALCO76mi283°
 DOHIA127mi339°
RW25
 KOLCA85mi61°
 SIDAT199mi96°
 OXENA203mi114°
 COLTY101mi213°
 HALCO76mi283°
 DOHIA127mi339°
RW30
 KOLCA85mi61°
 SIDAT199mi96°
 OXENA203mi114°
 COLTY101mi213°
 HALCO76mi283°
 DOHIA127mi339°

STAR starting pointsdistanceinbound heading
RW07
 TRYCO40.328°
 BUTLA40.778°
 GUANI40.3129°
 RUPKU39.8194°
 RAAGA, GAVID39.5287°
RW12
 TRYCO40.328°
 BUTLA40.778°
 GUANI40.3129°
 RUPKU39.8194°
 GAVID39.5287°
RW25
 TRYCO40.328°
 BUTLA40.778°
 GUANI40.3129°
 RUPKU39.8194°
 GAVID39.5287°
 ARDAB40.3348°
RW30
 TRYCO40.328°
 ACUBU, BUTLA40.778°
 GUANI40.3129°
 RUPKU39.8194°
 GAVID39.5287°
 ARDAB40.3348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YMM513 (89°)MM513 2300ft
MM915 (6mi, 153°) 2300ft
RW07-YMM514 (48°)MM514 2300ft
MM915 (6mi, 345°) 2300ft
RW07-YMM911 (69°)MM911 2300ft
MM915 (7mi, 69°) 2300ft
 RNAVMM915 2300ft
MM916 (7mi, 69°) 2100ft
VOMM (8mi, 68°) 93ft
MM917 (5mi, 72°)
MM918 (7mi, 339°)
MM513 (21mi, 247°)
MM915 (6mi, 153°) 2300ft
MM915 (turn) 2300ft
RW12-YMM515 (135°)MM515 2300ft
MM815 (10mi, 165°) 2100ft
RW12-YMM516 (99°)MM516 2300ft
MM815 (10mi, 71°) 2100ft
RW12-YMM811 (117°)MM811 2300ft
MM815 (7mi, 117°) 2100ft
 RNAVMM815 2100ft
MM816 (7mi, 117°) 2100ft
VOMM (8mi, 116°) 94ft
MM817 (6mi, 119°)
MM818 (7mi, 28°)
MM813 (20mi, 297°)
MM815 (7mi, 208°) 2100ft
MM815 (turn) 2100ft
RW25-YMM510 (227°)MM510 2300ft
MM715 (6mi, 162°) 2300ft
RW25-YMM512 (272°)MM512 2300ft
MM715 (6mi, 334°) 2300ft
RW25-YMM711 (250°)MM711 2300ft
MM715 (7mi, 249°) 2300ft
 RNAVMM715 2300ft
MM716 (7mi, 249°) 2100ft
VOMM (7mi, 251°) 104ft
MM717 (7mi, 248°)
MM718 (7mi, 339°)
MM510 (21mi, 72°)
MM715 (6mi, 162°) 2300ft
MM715 (turn) 2300ft
RW30-YMM411 (298°)MM411 2300ft
MM415 (7mi, 297°) 2100ft
RW30-YMM509 (320°)MM509 2300ft
MM415 (6mi, 26°) 2100ft
RW30-YMM512 (272°)MM512 2300ft
MM415 (7mi, 212°) 2100ft
 RNAVMM415 2100ft
MM416 (7mi, 297°) 2100ft
VOMM (7mi, 299°) 98ft
MM417 (7mi, 296°)
MM418 (7mi, 28°)
MM512 (21mi, 118°)
MM415 (7mi, 212°) 2100ft
MM415 (turn) 2100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ACUBUBUTLAVHFleft251 (71)°9000ft - 18000ftDME 10.0mi250
ARDABARDABVHFright185 (5)°9000ft - 18000ftDME 10.0mi250
BUTLABUTLAVHFleft251 (71)°9000ft - 18000ftDME 10.0mi250
GAVIDGAVIDVHFright112 (292)°9000ft - 18000ftDME 10.0mi250
GUANIGUANIVHFright303 (123)°9000ft - 18000ftDME 10.0mi250
RAAGAGAVIDVHFright112 (292)°9000ft - 18000ftDME 10.0mi250
RUPKURUPKUVHFleft14 (194)°9000ft - 18000ftDME 10.0mi250
TRYCOTRYCOVHFright195 (15)°9000ft - 18000ftDME 10.0mi250
*) magnetic outbound (inbound) holding course
