Airports for X-Plane

Tirupati

Airport details

CountryIndia
StateAndhra Pradesh
RegionVO
AirspaceChennai Ctr
MunicipalityRenigunta
Elevation350ft (107m)
TimezoneGMT +5.5
Coordinates13.63308, 79.54181
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVOTP
IATA codeTIR
FAA coden/a

Communication

Tirupati Tower119.000

Approach frequencies

ILS-cat-IRW26111.318.00mi
3.2° GSRW26111.318.00mi

Runway info

Runway 08 / 26
 length2296m (7533ft)
 bearing82° / 262°
 width52m (172ft)
 surfaceasphalt
 blast zone59m (194ft) / 59m (194ft)

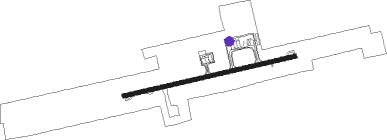

Airport layout - parking location 12


Parking locations

 1  10  10A  11  11A  12  12A  2
 3  4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
TTPTIRUPATI VOR/DME1.286°115.70
MACHENNAI NDB51.2142°228
KKPKANCHEEPURAM VOR/DME51.9169°115.40
CNICHENNAI VOR/DME52.5135°114.90
MMVCHENNAI VOR/DME52.7136°112.50
CPKADAPA NDB69.4319°263

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08-YTP408 (105°)TP408
TP412 (7mi, 171°) 4300ft
RW08-YTP409 (58°)TP409
TP412 (7mi, 351°) 4300ft
RW08-YTP410 (82°)TP410
TP412 (7mi, 82°) 4300ft
 RNAVTP412 4300ft
TP417 (6mi, 82°) 3200ft
VOTP (10mi, 81°) 402ft
(4795mi, 260°) 900ft
TP413 (4814mi, 80°) 5900ft
TP413 (turn) 5900ft
RW26-YTP401 (238°)TP401
TP404 (7mi, 171°) 3500ft
RW26-YTP402 (286°)TP402
TP404 (7mi, 351°) 3500ft
RW26-YTP403 (262°)TP403
TP404 (7mi, 262°) 3500ft
 RNAVTP404 3500ft
TP405 (7mi, 262°) 3000ft
VOTP (9mi, 262°) 383ft
(4795mi, 260°) 900ft
TP406 (4794mi, 80°)
TP407 (10mi, 81°)
TP402 (11mi, 40°) 5900ft
TP402 (turn) 5900ft
