Airports for X-Plane

Chiang Mai - Chiang Mai Intl

Airport details

CountryThailand
StateChiang Mai Province
RegionVT
AirspaceBangkok Ctr
MunicipalityChiang Mai
Elevation1036ft (316m)
TimezoneGMT +7
Coordinates18.77956, 98.96609
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVTCC
IATA codeCNX
FAA coden/a

Communication

Chiang Mai Intl ATIS127.200
Chiang Mai Intl Ground Control121.900
Chiang Mai Intl Tower118.100
Chiang Mai Intl Approach129.600

Approach frequencies

ILS-cat-IRW36109.918.00mi
3° GSRW36109.918.00mi
Nearby Points of Interest:
Chiang Mai city wall
-
Chiang Mai
-
Wat Hang Dong
-
Wat Khun Khong Luang
-
Wat Pa Hiang
-
Wat Hua Khua
-
Wat Phra Yuen
-
Wat Mongkhon
-
Wat San Sai

Runway info

Runway 18 / 36
 length3419m (11217ft)
 bearing180° / 0°
 width45m (148ft)
 surfaceasphalt
 displ threshold302m (991ft) / 0m (0ft)
 blast zone0m (0ft) / 104m (341ft)

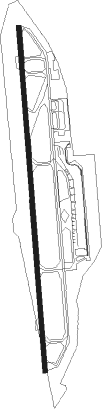

Airport layout


Taxiway locations

 B  C  E  F  G  H  P  P5
 P6
Parking locations

 13  2  3  4  5  6  7  8
 GA1  GA11A  GA11B  GA12A  GA12B  GA14  GA15  GA17
 New  RTAF  VIP

Nearby beacons

codeidentifierdistbearingfrequency
CHMCHIANG MAI TACAN0.6158°116.20
CMACHIANG MAI VOR/DME0.8200°116.90
LPNLAMPANG VOR/DME42.9133°114.70
LPLAMPANG NDB43.1133°395
MHMAE HONG SON NDB64.3298°384

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW18
 PR1A78mi119°
 UTTA1A106mi126°
 PSL1A142mi147°
 KEDO1A39mi162°
 MHS1A68mi297°
RW36
 ADLU1N24mi38°
 MONL1N38mi90°
 PR1B78mi119°
 KABM1N38mi119°
 UTTA1B106mi126°
 ASAV1N38mi126°
 PANT1N39mi147°
 PSL1B142mi147°
 ENBA1N, KEDO1B39mi162°
 GOGO1N39mi189°
 PUMA1N39mi192°
 VISE1N, VISE1X25mi296°
 MHS1B68mi297°
 LAMU1X, LAMU1N25mi317°

STAR starting pointsdistanceinbound heading
RW36
 GOGO1A39.09°
 PUMA1A39.012°
 VISE1A24.8116°
 LAMU1A24.6137°
 ADLU1A24.2218°
 MONL1A37.6270°
 KABM1A38.1299°
 ASAV1A38.3306°
 PANT1A38.6327°
 ENBA1A38.8342°
 MARN1A38.9348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18ADLUS (218°)ADLUS 8000ft
PAPAI (10mi, 218°) 8000ft
LAMMY (7mi, 281°) 5200ft
MALIM (4mi, 211°) 3700ft
RW18ANGET (138°)ANGET 9000ft
WANCA (6mi, 114°) 8000ft
ZUTEP (5mi, 114°) 5600ft
MALIM (5mi, 114°) 3700ft
RW18NIWAT (308°)NIWAT 8000ft
WISTA (8mi, 356°) 8000ft
PAPAI (12mi, 356°) 8000ft
LAMMY (7mi, 281°) 5200ft
MALIM (4mi, 211°) 3700ft
RW18YAMUN (116°)YAMUN 9000ft
WANCA (12mi, 72°) 8000ft
ZUTEP (5mi, 114°) 5600ft
MALIM (5mi, 114°) 3700ft
 RNAVMALIM 3700ft
CNXNF (6mi, 180°) 2500ft
SAPUT (turn) 2200ft
VTCC (4mi, 177°) 1086ft
NEWLY (21mi, 181°)
NIWAT (16mi, 42°) 8000ft
NIWAT (turn) 8000ft
RW36BAIPU (1°)BAIPU 7000ft
MAKOK (7mi, 0°) 5600ft
RW36EASTA (344°)EASTA 7000ft
MAKOK (10mi, 314°) 5600ft
RW36NAZAI (338°)NAZAI 7000ft
MAKOK (7mi, 270°) 5600ft
RW36PINNY (23°)PINNY 6000ft
MAKOK (7mi, 90°) 5600ft
 RNAVMAKOK 5600ft
CNXSF (9mi, 0°) 3500ft
MA36 (6mi, 0°) 1671ft
SAIYA (7mi, 11°)
DANAI (5mi, 90°)
EASTA (28mi, 179°) 7000ft
EASTA (turn) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADLU1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
ASAV1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
ENBA1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
GOGO1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
KABM1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
LAMU1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
MARN1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
MONL1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
PANT1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
PUMA1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
VISE1AMAKOKVHFright181 (1)°> 5600ftDME 3.8mi210
*) magnetic outbound (inbound) holding course
