Airports for X-Plane

Lampang

Airport details

CountryThailand
StateLampang Province
RegionVT
AirspaceBangkok Ctr
MunicipalityLampang
Elevation811ft (247m)
TimezoneGMT +7
Coordinates18.27570, 99.50493
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVTCL
IATA codeLPT
FAA coden/a

Communication

Lampang Tower122.300
Lampang Approach119.300

Approach frequencies

LOCRW36109.718.00mi

Runway info

Runway 18 / 36
 length1975m (6480ft)
 bearing175° / 355°
 width29m (95ft)
 surfaceasphalt
 displ threshold200m (656ft) / 98m (322ft)
 blast zone72m (236ft) / 0m (0ft)

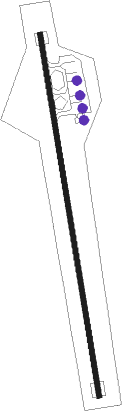

Airport layout - parking location New


Parking locations

 New  Platform

Nearby beacons

codeidentifierdistbearingfrequency
LPNLAMPANG VOR/DME0.1290°114.70
LPLAMPANG NDB0.248°395
PRPHRAE NDB38.4103°340
PAEPHRAE VOR/DME38.6102°111.80
CHMCHIANG MAI TACAN42.5313°116.20
CMACHIANG MAI VOR/DME42.7312°116.90

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW18
 PAE1D, PAMO1A39mi102°
 WANS1A33mi152°
 PSL1E101mi152°
 SAMA1A49mi159°
 MARW1A14mi196°
 CMA1F, JUMK1A43mi312°
RW36
 PAE1C, PAHI1A, PHAT1A39mi102°
 MARB1A33mi152°
 PSL1D101mi152°
 CMA1E, TOHA1A43mi312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18HOLUA (254°)HOLUA 6000ft
MOLEK (10mi, 311°) 5000ft
NAPFY (8mi, 266°) 3500ft
RW18MAKOM (154°)MAKOM 6000ft
LPTN2 (5mi, 131°) 4700ft
NAPFY (4mi, 131°) 3500ft
RW18MARBO (333°)MARBO 6000ft
PALAT (14mi, 0°) 6000ft
MOLEK (13mi, 355°) 5000ft
NAPFY (8mi, 266°) 3500ft
RW18PALAT (282°)PALAT 6000ft
MOLEK (13mi, 355°) 5000ft
NAPFY (8mi, 266°) 3500ft
 RNAVNAPFY 3500ft
LPTNF (6mi, 175°) 2400ft
VTCL (5mi, 174°) 839ft
(5947mi, 260°) 4000ft
BIGGY (5950mi, 80°) 5000ft
MARBO (7mi, 62°) 6000ft
MARBO (turn) 6000ft
RW36KOKIT (1°)KOKIT 6000ft
TONUN (5mi, 327°) 4000ft
LPTS1 (4mi, 39°) 3600ft
PIWAN (3mi, 39°) 3300ft
RW36MARBO (333°)MARBO 6000ft
LPTS2 (5mi, 309°) 4900ft
PIWAN (5mi, 309°) 3300ft
RW36PAHIN (282°)PAHIN 6000ft
MARBO (16mi, 222°) 6000ft
LPTS2 (5mi, 309°) 4900ft
PIWAN (5mi, 309°) 3300ft
 RNAVPIWAN 3300ft
LPTSF (4mi, 355°) 2400ft
VTCL (6mi, 356°) 861ft
(5947mi, 260°) 2500ft
MAMOR (5955mi, 80°) 3200ft
MARBO (17mi, 179°) 6000ft
MARBO (turn) 6000ft
