Chiang Rai - Chiang Rai Intl

Airport details

Country	Thailand
State	Chiang Rai Province
Region	VT
Airspace	Bangkok Ctr
Municipality	Ban Du
Elevation	1276ft (389m)
Timezone	GMT +7
Coordinates	19.95222, 99.88306
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VTCT
IATA code	CEI
FAA code	n/a

Communication

Chiang Rai Intl Tower	118.400
Chiang Rai Intl Approach	120.050

Approach frequencies

ILS-cat-I	RW03	109.5	18.00mi
3° GS	RW03	109.5	18.00mi

Nearby Points of Interest:

Wat Phra That Doi Ku Kaeo

Wat Chedi Chet Yot

Wat Saen Mueang Ma

Runway info

Runway 03 / 21
	length	3010m (9875ft)
	bearing	30° / 210°
	width	45m (148ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

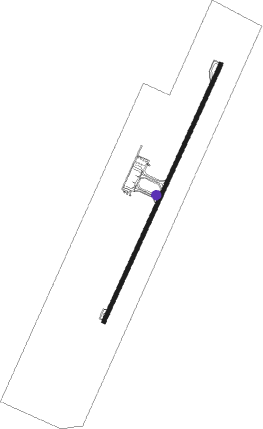

Airport layout - taxiway location A

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
CTR	CHIANG RAI VOR/DME	0.2	176°	116.50
CT	CHIANG RAI NDB	0.4	0°	277
TCL	TACHILEIK VOR/DME	32	6°	114.50
TL	TACHILEIK NDB	32	6°	375
MS	MONG-HSAT NDB	48.9	312°	312

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW03
	PONU1A	36mi	54°
	NAN1A	85mi	141°
	DUBE1A	30mi	142°
	BENV1A	30mi	171°
	PAE1A	110mi	171°
	CMA1A	88mi	218°
	NUMD1A	30mi	218°
RW21
	PONU1B	36mi	54°
	NAN1B	85mi	141°
	DUBE1B	30mi	142°
	PAE1B	110mi	171°
	BENV1B	30mi	171°
	CMA1B	88mi	218°
	NUMD1B	30mi	218°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW03	BENVI (351°)	BENVI 10000ft REDIP (20mi, 319°) 6000ft
RW03	DUBEN (322°)	DUBEN 10000ft MIKAV (21mi, 286°) 7000ft REDIP (7mi, 298°) 6000ft
RW03	NUMDO (38°)	NUMDO 10000ft REDIP (14mi, 47°) 6000ft
RW03	PONUK (234°)	PONUK 11000ft EMTOD (26mi, 227°) 8000ft CT035 (10mi, 210°) 8000ft MIKAV (15mi, 210°) 7000ft REDIP (7mi, 298°) 6000ft
	RNAV	REDIP 6000ft CT034 (9mi, 30°) 3600ft CT033 (7mi, 30°) 1330ft (5962mi, 259°) 4500ft EMTOD (5972mi, 79°) 8000ft EMTOD (turn) 8000ft
RW21	BENVI (351°)	BENVI 10000ft ADNES (24mi, 0°) 10000ft TEPED (16mi, 30°) 6000ft LAREV (7mi, 298°) 4500ft
RW21	DUBEN (322°)	DUBEN 10000ft ADNES (23mi, 322°) 10000ft TEPED (16mi, 30°) 6000ft LAREV (7mi, 298°) 4500ft
RW21	NUMDO (38°)	NUMDO 10000ft ADNES (29mi, 53°) 10000ft TEPED (16mi, 30°) 6000ft LAREV (7mi, 298°) 4500ft
RW21	PONUK (234°)	PONUK 10000ft TEPED (21mi, 231°) 6000ft LAREV (7mi, 298°) 4500ft
	RNAV	LAREV 4500ft CT216 (6mi, 210°) 3200ft CT215 (3mi, 210°) 2280ft CT214 (3mi, 210°) 1325ft (5963mi, 259°) 3200ft TEPED (5975mi, 79°) 6000ft TEPED (turn) 6000ft
