Chumphon

Airport details

Country	Thailand
State	Chumphon Province
Region	VT
Airspace	Bangkok Ctr
Municipality	Chum Kho
Elevation	18ft (5m)
Timezone	GMT +7
Coordinates	10.71428, 99.36033
Magnetic var	-0.7°
Type	land
Available since	X-Plane v10.40
ICAO code	VTSE
IATA code	CJM
FAA code	n/a

Communication

Chumphon Tower	122.150
Chumphon Approach	119.750
Chumphon Approach	129.600

Approach frequencies

ILS-cat-I	RW24	109.9	18.00mi
3° GS	RW24	109.9	18.00mi

Runway info

Runway 06 / 24
	length	2103m (6900ft)
	bearing	60° / 240°
	width	45m (148ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

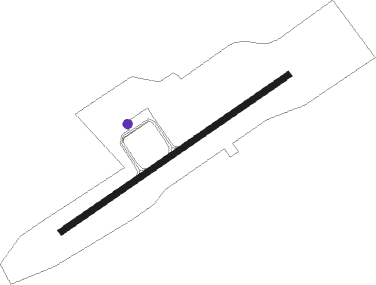

Airport layout - parking location 4

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	sancs001
Released	25 Jan 2021
Features	› has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
CPN	CHUMPHON VOR/DME	0.3	121°	110
CP	CHUMPHON NDB	0.4	59°	279
KT	KAWTHOUNG NDB	62.7	231°	290
RN	RANONG NDB	72	220°	375
RAN	RANONG VOR/DME	72.5	220°	113.40

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	LERBU (224°)	LERBU 8000ft SE065 (19mi, 242°) 8000ft SE064 (15mi, 240°) 5000ft NUDSO (7mi, 150°) 3200ft
RW06	MAGMI (39°)	VEMLO 7000ft MAGMI (6mi, 40°) 5000ft NUDSO (7mi, 354°) 3200ft
	RNAV	NUDSO 3200ft SE063 (7mi, 60°) 1900ft SE062 (2mi, 60°) 1200ft SE061 (4mi, 60°) 68ft (5957mi, 264°) 1500ft NUDSO (5946mi, 84°) 3200ft NUDSO (turn) 3200ft
RW24	ANDET (223°)	ANDET 7000ft LERBU (7mi, 223°) 5000ft IGAKO (9mi, 195°) 3000ft
RW24	MAGMI (39°)	MAGMI 8000ft SE244 (16mi, 63°) 8000ft SE243 (15mi, 60°) 5000ft IGAKO (7mi, 330°) 3000ft
	RNAV	IGAKO 3000ft SE242 (8mi, 240°) 1900ft SE241 (6mi, 240°) 68ft (5958mi, 264°) 1500ft IGAKO (5970mi, 84°) 3000ft IGAKO (turn) 3000ft

Actual weather data

METAR VTSE 240000Z VRB03KT 9000 SCT020 26/25 Q1009 NOSIG

TAF VTSE 232300Z 2400/2424 30003KT 9000 FEW020 BECMG 2403/2405 12008KT TEMPO 2408/2412 VRB15G25KT -TSRA FEW016CB SCT018 BKN100 BECMG 2413/2415 30003KT
