Ranong

Airport details

Country	Thailand
State	Ranong Province
Region	VT
Airspace	Bangkok Ctr
Municipality	Ratchakrut
Elevation	57ft (17m)
Timezone	GMT +7
Coordinates	9.77762, 98.58548
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VTSR
IATA code	UNN
FAA code	n/a

Communication

Ranong Tower	122.250
Ranong Approach	125.100

Approach frequencies

ILS-cat-I	RW02	110.5	18.00mi
3° GS	RW02	110.5	18.00mi

Runway info

Runway 02 / 20
	length	2010m (6594ft)
	bearing	24° / 204°
	width	45m (148ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

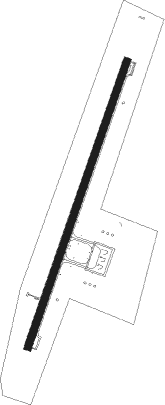

Airport layout

Taxiway locations

Parking locations

Pad

Nearby beacons

code	identifier	dist	bearing	frequency
RAN	RANONG VOR/DME	0.1	304°	113.40
RN	RANONG NDB	0.4	44°	375
KT	KAWTHOUNG NDB	16.5	351°	290
SRT	SURAT THANI TACAN	50.6	140°	113.20
STN	SURAT THANI VOR/DME	50.7	140°	110.60
CPN	CHUMPHON VOR/DME	72.5	40°	110
CP	CHUMPHON NDB	72.9	40°	279

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW02
	PAYU1A	73mi	40°
	KAOY1A	101mi	190°
RW20
	CPN1A, PAYU1B	73mi	40°
	KAOY1B, PUT1A	101mi	190°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW02	FASAI (75°)	FASAI 5000ft GAPER (6mi, 136°) 5000ft RUNTA (8mi, 114°) 3400ft
RW02	GAYOU (220°)	GAYOU 7000ft MINTA (9mi, 229°) 6000ft KOKAM (24mi, 229°) 6000ft GAPER (5mi, 204°) 5000ft RUNTA (8mi, 114°) 3400ft
RW02	KAOYA (10°)	KAOYA 7000ft GOWHA (9mi, 340°) 5400ft RUNTA (5mi, 24°) 3400ft
RW02	NEETA (320°)	NEETA 7000ft RAKSA (13mi, 285°) 5600ft RUNTA (10mi, 294°) 3400ft
	RNAV	RUNTA 3400ft UNNSF (6mi, 24°) 2000ft UNNHM (4mi, 24°) 851ft UNDAR (7mi, 11°) 1500ft MANAM (7mi, 281°) 4000ft FASAI (14mi, 225°) 5000ft FASAI (turn) 5000ft
