Airports for X-Plane

Udon Thani - Udon Thani Intl

Airport details

CountryThailand
StateUdon Thani Province
RegionVT
AirspaceBangkok Ctr
MunicipalityUdon Thani
Elevation579ft (176m)
TimezoneGMT +7
Coordinates17.38644, 102.78825
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVTUD
IATA codeUTH
FAA coden/a

Communication

Udon Thani Intl Ground Control121.900
Udon Thani Intl Tower122.500
Udon Thani Intl Approach126.200

Approach frequencies

ILS-cat-IRW30110.118.00mi
3° GSRW30110.118.00mi
Nearby Points of Interest:
Wat Si Khun Mueang
-
Phu Phra Bat Historical Park

Runway info

Runway 12 / 30
 length3051m (10010ft)
 bearing116° / 296°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

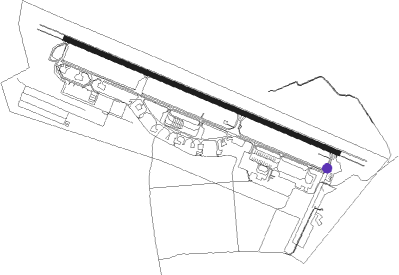

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D  E  F  G  H
 I  J  K  L  M  N
Parking locations

 Civil  G2  M1  M2  M3  M5  New

Nearby beacons

codeidentifierdistbearingfrequency
UDNUDON THANI VOR/DME0.7262°114.30
UDUDON THANI NDB1274°236
VTNVIENTIANE VOR/DME40338°117.50
VTGTHANGONE NDB45.8348°405
KKNKHON KAEN VOR/DME54.9180°114.90
KNKHON KAEN NDB55.5180°393
CMPCHUM PHAE VOR/DME64.3227°112.90

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW12
 GULN1B29mi97°
 POVE1B30mi143°
 ANPU1B25mi181°
 TERC1B31mi207°
 SURG1B31mi228°
 ESGI1B31mi273°
 ELNE1B25mi338°
RW30
 GULN1D29mi97°
 POVE1D30mi143°
 ANPU1D25mi181°
 TERC1D31mi207°
 SURG1D31mi228°
 ESGI1D31mi273°
 ELNE1D25mi338°

STAR starting pointsdistanceinbound heading
RW12
 ANPU1A25.21°
 SURG1A30.648°
 ESGI1A30.693°
 ELNE1A24.9158°
 MUGN1A29.7201°
 GULN1A29.2277°
 POVE1A29.7323°
RW30
 ANPU1C25.21°
 SURG1C30.648°
 ESGI1C30.693°
 ELNE1C24.9158°
 MUGN1C29.7201°
 GULN1C29.2277°
 POVE1C29.7323°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LEBOG (116°)LEBOG 5000ft
TELUG (5mi, 116°) 3500ft
RW12RIRMI (90°)RIRMI 5000ft
TELUG (7mi, 28°) 3500ft
RW12RUGBU (143°)RUGBU 5000ft
TELUG (7mi, 208°) 3500ft
 RNAVTELUG 3500ft
UD124 (7mi, 116°) 2500ft
UD123 (6mi, 116°) 629ft
(6137mi, 260°) 1500ft
ENGEB (6138mi, 80°)
RUGBU (11mi, 296°) 5000ft
TELUG (7mi, 208°) 3500ft
TELUG (turn) 3500ft
RW30ALDES (268°)ALDES 5000ft
MUNUR (7mi, 208°) 3500ft
RW30LATUR (296°)LATUR 5000ft
MUNUR (5mi, 296°) 3500ft
RW30OTLOR (325°)OTLOR 5000ft
MUNUR (7mi, 28°) 3500ft
 RNAVMUNUR 3500ft
UD305 (6mi, 296°) 2500ft
UD304 (6mi, 296°) 629ft
(6138mi, 260°) 1500ft
OSPEK (6142mi, 80°)
ALDES (11mi, 116°) 5000ft
MUNUR (7mi, 208°) 3500ft
MUNUR (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANPU1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
ANPU1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
ELNE1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
ELNE1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
ESGI1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
ESGI1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
GULN1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
GULN1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
MUGN1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
MUGN1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
POVE1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
POVE1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
SURG1ATELUGVHFright298 (118)°> 3500ft1.0min timed230
SURG1CMUNURVHFright118 (298)°> 3500ft1.0min timed230
*) magnetic outbound (inbound) holding course
