Khon Kaen

Airport details

Country	Thailand
State	Khon Kaen Province
Region	VT
Airspace	Bangkok Ctr
Municipality	Ban Pet
Elevation	668ft (204m)
Timezone	GMT +7
Coordinates	16.46455, 102.78227
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VTUK
IATA code	KKC
FAA code	n/a

Communication

Khon Kaen Tower	122.250
Khon Kaen Approach	123.400

Runway info

Runway 03 / 21
	length	3062m (10046ft)
	bearing	34° / 214°
	width	44m (144ft)
	surface	asphalt
	displ threshold	150m (492ft) / 150m (492ft)

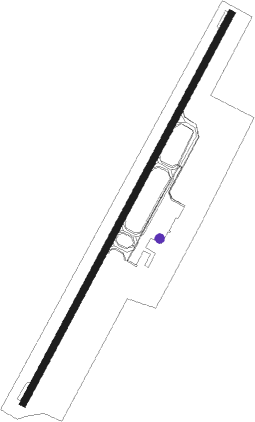

Airport layout - parking location 4

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
KN	KHON KAEN NDB	0.1	138°	393
KKN	KHON KAEN VOR/DME	0.4	42°	114.90
CMP	CHUM PHAE VOR/DME	46.8	282°	112.90
UDN	UDON THANI VOR/DME	55.2	360°	114.30
UD	UDON THANI NDB	55.4	359°	236
ROT	ROI ET VOR/DME	60.7	109°	111.20
RE	ROI ET NDB	61.2	110°	319

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW03
	AKRE1A	24mi	61°
	SEDN1C	31mi	109°
	EMRU1A	30mi	202°
	NEMT1A	30mi	216°
	ONUV1A	20mi	283°
	ALGI1A	25mi	360°
RW21
	AKRE1B	24mi	61°
	SEDN1D	31mi	109°
	EMRU1B	30mi	202°
	NEMT1B	30mi	216°
	ONUV1B	20mi	283°
	ALGI1B	25mi	360°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW03	AKRET (241°)	AKRET 10000ft URBOM (11mi, 221°) 10000ft IRNIP (10mi, 221°) 9000ft BILIL (14mi, 221°) 5000ft KASRA (7mi, 302°) 3400ft
RW03	ALGIT (180°)	ALGIT 10000ft MOLVU (10mi, 202°) 10000ft MABDI (12mi, 202°) 9000ft SUBNU (12mi, 202°) 5000ft KASRA (7mi, 122°) 3400ft
RW03	EMRUT (22°)	EMRUT 8000ft KASRA (18mi, 14°) 3400ft
RW03	ONUVI (103°)	ONUVI 9000ft OMBEV (5mi, 149°) 7000ft SUBNU (8mi, 149°) 5000ft KASRA (7mi, 122°) 3400ft
RW03	SEDNO (289°)	SEDNO 7000ft KASDU (15mi, 263°) 5000ft BILIL (15mi, 263°) 5000ft KASRA (7mi, 302°) 3400ft
	RNAV	KASRA 3400ft BOPLA (7mi, 34°) 2200ft VIDOL (5mi, 34°) 651ft (6141mi, 261°) 1500ft KASRA (6135mi, 81°) 3400ft KASRA (turn) 3400ft
RW21	AKRET (241°)	AKRET 7000ft ELGEV (14mi, 266°) 3400ft
RW21	ALGIT (180°)	ALGIT 7000ft ELGEV (16mi, 151°) 3400ft
RW21	EMRUT (22°)	EMRUT 11000ft AGIMI (34mi, 36°) 8000ft SUSMI (9mi, 34°) 5000ft ELGEV (7mi, 302°) 3400ft
RW21	ONUVI (103°)	ONUVI 9000ft MAKVO (7mi, 64°) 8000ft ONIBU (16mi, 64°) 5000ft ELGEV (7mi, 122°) 3400ft
RW21	SEDNO (289°)	SEDNO 7000ft EGISO (12mi, 317°) 6000ft SUSMI (12mi, 317°) 5000ft ELGEV (7mi, 302°) 3400ft
	RNAV	ELGEV 3400ft IGNOG (7mi, 214°) 2500ft ATPEM (6mi, 214°) 720ft (6141mi, 261°) 1500ft ELGEV (6147mi, 81°) 3400ft ELGEV (turn) 3400ft
