Airports for X-Plane

Dien Bien Phu - Dien Bien

Airport details

CountryVietnam
StateĐiện Biên Province
RegionVV
AirspaceHanoi Ctr
MunicipalityĐiện Biên Phủ
Elevation1583ft (482m)
TimezoneGMT +7
Coordinates21.40000, 103.00500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVDB
IATA codeDIN
FAA coden/a

Communication

Dien Bien Tower118.700

Runway info

Runway 16 / 34
 length1835m (6020ft)
 bearing155° / 335°
 width30m (98ft)
 surfaceconcrete

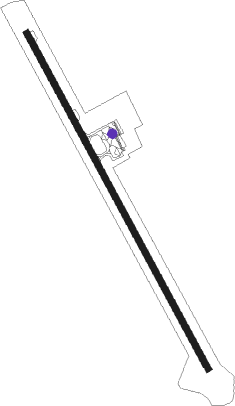

Airport layout - parking location 1


Taxiway locations

 E1  E2
Parking locations

 1  2  3

Nearby beacons

codeidentifierdistbearingfrequency
DBDIENBIEN NDB0.1135°380
DIBDIENBIEN VOR/DME0.2188°113.60

Departure and arrival routes

Transition altitude9000ft
SID end pointsdistanceoutbound heading
RW16
 LAIT2A, BQ1J, BQ1H, BQ1B, BQ1A, LAIT2B59mi100°
 LADO1A, LADO1H18mi187°
 LADO2A, LADO2B51mi205°

STAR starting pointsdistanceinbound heading
RW34
 LADO1B17.97°
 NOBO1B, NOBO1A50.925°
 BQ1C, NASA1C, NASA1B, NASA1A, BQ1L, BQ1K, BQ1G, BQ1F, BQ1D58.8280°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW34-YUGITI (299°)UGITI 8000ft
XOKBO (7mi, 221°)
DB503 (4mi, 243°)
DB502 (7mi, 266°) 7200ft
 RNAVDB502 7200ft
DB501 (8mi, 346°) 5250ft
DB500 (7mi, 349°) 2610ft
DB610 (4mi, 349°)
DB611 (14mi, 51°)
DB612 (9mi, 126°)
AKLUV (9mi, 161°)
UGITI (7mi, 201°) 8000ft
UGITI (turn) 8000ft
RW34-ZLADON (7°)LADON 9000ft
DB504 (3mi, 112°)
DB502 (3mi, 73°) 7200ft
RW34-ZXOKBO (316°)XOKBO
DB503 (4mi, 243°) 9000ft
DB502 (7mi, 266°) 7200ft
 RNAVDB502 7200ft
DB501 (8mi, 346°) 5250ft
DB500 (7mi, 349°) 2610ft
DB610 (4mi, 349°)
DB611 (14mi, 51°)
DB612 (9mi, 126°)
AKLUV (9mi, 161°)
UGITI (7mi, 201°) 8000ft
UGITI (turn) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BQ1FAKLUVVHFleft30 (210)°14000ft - 14000ft1.0min timed230
BQ1GXOKBOVHFleft63 (243)°10000ft - 14000ft1.0min timed230
BQ1KXOKBOVHFleft63 (243)°10000ft - 14000ft1.0min timed230
BQ1LAKLUVVHFleft30 (210)°14000ft - 14000ft1.0min timed230
BQ1LXOKBOVHFleft63 (243)°10000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
