Airports for X-Plane

Hanoi - Noi Bai Intl

Airport details

CountryVietnam
StateHanoi
RegionVV
AirspaceHanoi Ctr
Elevation39ft (12m)
TimezoneGMT +7
Coordinates21.22167, 105.80556
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVNB
IATA codeHAN
FAA coden/a

Communication

Noi Bai Intl ATIS127.000
Noi Bai Intl DEL119.250
Noi Bai Intl DEL_2nd125.225
Noi Bai Intl Tower_2nd118.900
Noi Bai Intl Tower118.400
Noi Bai Intl Approach_2nd121.000
Noi Bai Intl Approach125.100
Noi Bai Intl Approach_2nd126.575

Approach frequencies

ILS-cat-IIRW11R108.318.00mi
ILS-cat-IRW29L111.918.00mi
ILS-cat-IRW11L110.518.00mi
3° GSRW29L111.918.00mi
3° GSRW11L110.518.00mi
3° GSRW11R108.318.00mi

Runway info

Runway 11L / 29R
 length3198m (10492ft)
 bearing106° / 286°
 width45m (148ft)
 surfaceasphalt
 blast zone100m (328ft) / 100m (328ft)
Runway 11R / 29L
 length3797m (12457ft)
 bearing106° / 286°
 width45m (148ft)
 surfaceconcrete
 blast zone100m (328ft) / 100m (328ft)

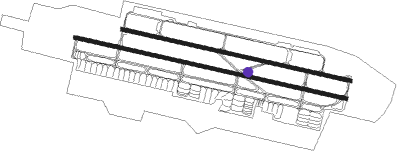

Airport layout - taxiway location S3


Taxiway locations

 S1  S1A  S1D  S1E  S2  S2A  S2B  S3
 S4  S5  S5A  S6  S7
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
KNOI BAI INTL (HANOI) NDB1.3286°230
NOBNOI BAI (HANOI) VOR/DME1.7106°116.10
KWNOI BAI (HANOI) NDB3.5286°320
VPHVINHPHUC (HANOI) VOR/DME11.8285°113.90
AMGIALAM (HANOI) NDB14.3167°294
HLNAM DINH NDB53159°304
NAHNAM HA (HANOI) VOR/DME53159°115.50
CBICAT BI VOR/DME56.9114°117.40

Departure and arrival routes

Transition altitude9030ft
Transition level10000ft
SID end pointsdistanceoutbound heading
RW11 (ALL)
 HAKA2A, HAKA2C59mi43°
 PHUT2A41mi114°
 VITR2A53mi159°
 HUVA2A, HUVA2C99mi270°
 TONG2A128mi305°
 TAMD3A40mi334°
RW11L
 BUNB1A59mi43°
 TINL1A53mi159°
 HUVA1D99mi270°
 JULU1A57mi339°
RW11R
 BUNB1B59mi43°
 TINL1B53mi159°
 HUVA1E99mi270°
 JULU1B57mi339°
RW29 (ALL)
 HAKA2B59mi43°
 PHUT2B41mi114°
 VITR2B53mi159°
 HUVA2B99mi270°
 TONG2B128mi305°
 TAMD3B40mi334°
RW29L
 DIHA1A59mi43°
 FINA1A53mi159°
 LENU1A99mi270°
 JULU1C57mi339°
RW29R
 DIHA1B59mi43°
 FINA1B53mi159°
 LENU1B99mi270°
 JULU1D57mi339°

STAR starting pointsdistanceinbound heading
RW11 (ALL)
 XIVI1A40.920°
 BQ3A98.990°
 LAOC2A127.6125°
 TAMD3A39.5154°
 HAKA2A58.9223°
 NAH1A53.0339°
RW11L
 BISO1L, BISO1F48.212°
 XIVI1C40.920°
 MUCH1H, MUCH1J45.570°
 HUVA1M, HUVA1L38.889°
 BQ3C98.990°
 LAOC2C127.6125°
 TAMD1N39.5154°
 HAKA1M40.1222°
 HAKA2C, HAKA1K, HAKA1L, HAKA1N58.9223°
 PHUT2C40.6294°
 NAH1C53.0339°
RW11R
 BISO1A, BISO1R48.212°
 MUCH1D, MUCH1C45.570°
 HUVA1F, HUVA1G38.889°
 TAMD1R, TAMD1C39.5154°
 HAKA1D40.1222°
 HAKA1J, HAKA1G, HAKA1R58.9223°
RW29 (ALL)
 XIVI1B40.920°
 BQ3B98.990°
 LAOC2B127.6125°
 HAKA2B58.9223°
 NAH1B53.0339°
RW29L
 BISO1P48.212°
 MUCH1P, MUCH1G, MUCH1E45.570°
 HUVA1P, HUVA1K, HUVA1H38.889°
 TAMD1P39.5154°
 HAKA1P, HAKA1H, HAKA1E58.9223°
RW29R
 XIVI1C40.920°
 MUCH1F45.570°
 HUVA1J38.889°
 BQ3C98.990°
 LAOC2C127.6125°
 HAKA2C, HAKA1F58.9223°
 PHUT2C40.6294°
 NAH1C53.0339°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BISO1ABISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1BBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1CBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1DBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1EBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1FBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1GBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1LBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1PBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
BISO1RBISONVHFleft180 (0)°8000ft - 14000ft1.0min timed230
HAKA1DHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1EHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1FHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1GHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1HHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1JHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1KHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1LHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1MHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1NHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1PHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA1RHAKAOVHFright51 (231)°7000ft - 14000ft1.0min timed230
HAKA2AD039OVHFright39 (219)°> 7000ft1.0min timedICAO rules
HAKA2BD039OVHFright39 (219)°> 7000ft1.0min timedICAO rules
HUVA1FHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1GHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1HHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1JHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1KHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1LHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1MHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1NHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1PHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
HUVA1RHUVANVHFleft329 (149)°11000ft - 14000ft1.0min timed230
MUCH1CMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1DMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1EMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1FMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1GMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1HMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1JMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1LMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1PMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
MUCH1RMUCHIVHFright250 (70)°10000ft - 14000ft1.0min timed230
NAH1AHALANVHFright225 (45)°> 8000ft1.0min timedICAO rules
NAH1BHALANVHFright225 (45)°> 8000ft1.0min timedICAO rules
NAH1CHALANVHFright225 (45)°> 8000ft1.0min timedICAO rules
TAMD1CTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1DTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1ETAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1FTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1GTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1HTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1JTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1KTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1LTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1NTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1PTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD1RTAMDAVHFright297 (117)°12000ft - 14000ft1.0min timed230
TAMD3AVPHNDBright287 (107)°3000ft - 14000ft1.0min timedICAO rules
XIVI1AUPVANVHFleft237 (57)°> 10000ft1.0min timedICAO rules
XIVI1BHALANVHFright225 (45)°> 8000ft1.0min timedICAO rules
XIVI1CHALANVHFright225 (45)°> 8000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
