Airports for X-Plane

Pleiku

Airport details

CountryVietnam
StateGia Lai Province
RegionVV
AirspaceHo Chi Minh Ctr
MunicipalityPleiku
Elevation2439ft (743m)
TimezoneGMT +7
Coordinates14.00083, 108.01722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVPK
IATA codePXU
FAA coden/a

Communication

Pleiku Tower118.100

Approach frequencies

ILS-cat-IRW27109.118.00mi
3° GSRW27109.118.00mi

Runway info

Runway 09 / 27
 length2398m (7867ft)
 bearing91° / 271°
 width45m (148ft)
 surfaceasphalt
 blast zone100m (328ft) / 100m (328ft)

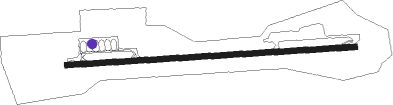

Airport layout - parking location Gate2


Parking locations

 Gate1  Gate2  Gate3  Gate4  Gate5

Nearby beacons

codeidentifierdistbearingfrequency
PKPLEIKU NDB0.5305°282
PLKPLEIKU VOR/DME0.554°113.40

Departure and arrival routes

SID end pointsdistanceoutbound heading
RW09
 DAKA1D63mi5°
 DAKA1A27mi6°
 TORU1D65mi8°
 TORU1A28mi18°
 TALA1D94mi26°
 TALA1A28mi26°
 GIAL1D, GIAL1A27mi164°
 MADE1D, MADE1A27mi175°
RW27
 DAKA1C, DAKA1B27mi6°
 TORU1B, TORU1C28mi18°
 TALA1B, TALA1C28mi26°
 GIAL1B, GIAL1C27mi164°
 MADE1B, MADE1C27mi175°

STAR starting pointsdistanceinbound heading
ALL
 DAKA1A, DAKA1C27.4186°
 TORU1C, TORU1A27.5198°
 TALA1C, TALA1A27.5206°
 GIAL1D, GIAL1C, GIAL1A26.9344°
 MADE1C, MADE1D, MADE1A26.8355°
RW27
 DAKA1B27.4186°
 TORU1B27.5198°
 TALA1B27.5206°
 GIAL1B26.9344°
 MADE1B26.8355°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DAKA1APLKNDBleft68 (248)°> 6890ft1.0min timedICAO rules
DAKA1BD006NVHFleft6 (186)°> 7710ft1.0min timedICAO rules
DAKA1CPKFIXright60 (240)°> 6890ft1.0min timedICAO rules
GIAL1APLKNDBleft68 (248)°> 6890ft1.0min timedICAO rules
GIAL1BD166NVHFleft166 (346)°> 7710ft1.0min timedICAO rules
GIAL1CPKFIXright60 (240)°> 6890ft1.0min timedICAO rules
GIAL1DD166OVHFright166 (346)°> 8040ft1.0min timedICAO rules
MADE1APLKNDBleft68 (248)°> 6890ft1.0min timedICAO rules
MADE1BD176NVHFleft176 (356)°> 7710ft1.0min timedICAO rules
MADE1CPKFIXright60 (240)°> 6890ft1.0min timedICAO rules
MADE1DD176OVHFright176 (356)°> 8040ft1.0min timedICAO rules
TALA1APLKNDBleft68 (248)°> 6890ft1.0min timedICAO rules
TALA1BD026NVHFleft26 (206)°> 7710ft1.0min timedICAO rules
TALA1CPKFIXright60 (240)°> 6890ft1.0min timedICAO rules
TORU1APLKNDBleft68 (248)°> 6890ft1.0min timedICAO rules
TORU1BD026NVHFleft26 (206)°> 7710ft1.0min timedICAO rules
TORU1CPKFIXright60 (240)°> 6890ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
