Airports4XP | VVTS | Ho Chi Minh City

Ho Chi Minh City - Tan Son Nhat Intl

Airport details

Country	Vietnam
State	Ha Tinh Province
Region	VV
Airspace	Ho Chi Minh Ctr
Municipality	Cần Giờ
Elevation	33ft (10m)
Timezone	GMT +7
Coordinates	10.82056, 106.66084
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VVTS
IATA code	SGN
FAA code	n/a

Communication

Tan Son Nhat Intl ATIS	128.000
Tan Son Nhat Intl Ground Control	121.600
Tan Son Nhat Intl Ground Control	121.900
Tan Son Nhat Intl Tower	118.700
Tan Son Nhat Intl Tower	130.000
Tan Son Nhat Intl Approach	134.100
Tan Son Nhat Intl Approach	120.100
Tan Son Nhat Intl Approach	125.500

Approach frequencies

ILS-cat-I	RW25R	110.5	18.00mi
ILS-cat-I	RW07R	111.7	18.00mi
ILS-cat-I	RW25L	108.3	18.00mi
3° GS	RW25R	110.5	18.00mi
3° GS	RW07R	111.7	18.00mi
3° GS	RW25L	108.3	18.00mi

Runway info

Runway 07L / 25R
	length	3042m (9980ft)
	bearing	69° / 249°
	width	47m (153ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)
Runway 07R / 25L
	length	3803m (12477ft)
	bearing	69° / 249°
	width	47m (153ft)
	surface	concrete
	displ threshold	744m (2441ft) / 0m (0ft)
	blast zone	255m (837ft) / 255m (837ft)

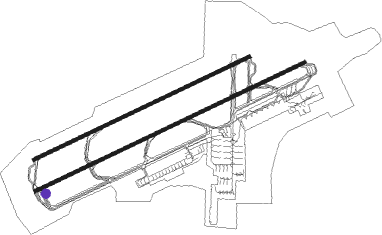

Airport layout - taxiway location W9A

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
TSH	TAN SON NHAT VOR/DME	0.6	258°	116.80
GN	TANSONNHAT (HOCHIMINH) NDB	1	70°	343
SG	TANSONNHAT (HOCHIMINH) NDB	5.7	69°	326
TD	TANSONNHAT (HOCHIMINH) NDB	5.7	67°	358
AC	ANLOC NDB	31.9	77°	320
XVL	VUNGTAU NDB	36.9	137°	235
VTV	VUNG TAU VOR/DME	37.1	136°	114.70
VT	VUNGTAU NDB	38.6	137°	291
M	CANTHO NDB	70.3	232°	408
TRN	CAN THO VOR/DME	71.7	232°	113.20

Departure and arrival routes

Transition altitude

9022ft

Transition level

10000ft

SID end points		distance	outbound heading
RW07L
	ANTR1A, KADU1D	113mi	37°
	KADU1Q	40mi	37°
	ANRA1Q	40mi	38°
	AC1Q	32mi	77°
	KADU2A, TANO1A, TANO2B, ANTR2B	83mi	86°
	BAOM1Q	40mi	86°
	LANH1D, LANH2B	67mi	128°
	LANH1Q	40mi	128°
	VTV1Q	37mi	136°
	VICA2A, XOBA2B	86mi	181°
	XOBA1Q	41mi	182°
	MALA2B, MALA1A	76mi	216°
	BITI1Q	41mi	217°
	MISA1D, MISA2C, MISA2A	72mi	232°
	ENPA1Q	41mi	233°
	MISA1Q	41mi	241°
	ENPA1D, ENPA2B	71mi	241°
	BACH1D, BACH2A, BACH1Q, BACH2C	41mi	250°
	SAPE1Q, SAPE1D, SAPE1F, SAPE2B, SAPE2A	31mi	293°
RW07R
	KADU1E, ANTR1B	113mi	37°
	KADU1P	40mi	37°
	ANRA1P	40mi	38°
	AC1P	32mi	77°
	TANO1B, KADU2A, TANO2B, ANTR2B	83mi	86°
	BAOM1P	40mi	86°
	LANH2B, LANH1E	67mi	128°
	LANH1P	40mi	128°
	VTV1P	37mi	136°
	VICA2B, XOBA2B	86mi	181°
	XOBA1P	41mi	182°
	MALA2B, MALA1B	76mi	216°
	BITI1P	41mi	217°
	MISA2C, MISA2A, MISA1E	72mi	232°
	ENPA1P	41mi	233°
	MISA1P	41mi	241°
	ENPA1E, ENPA2B	71mi	241°
	BACH2A, BACH2C, BACH1P, BACH1E	41mi	250°
	SAPE2B, SAPE2A, SAPE1P, SAPE1G, SAPE1E	31mi	293°
RW25 (ALL)
	DONX1R	40mi	26°
	KADU1R	40mi	37°
	AC1R	32mi	77°
	BAOM1R	40mi	86°
	LANH1R	40mi	128°
	VTV1R	37mi	136°
	XOBA1R	41mi	182°
	BITI1R	41mi	217°
	ENPA1R	41mi	233°
	MISA1R	41mi	241°
	BACH1R	41mi	250°
	SAPE1R	31mi	293°
RW25L
	KADU1F, ANTR1E, ANTR1C	113mi	37°
	TANO2D, TANO2E, KADU2F, KADU2D, TANO1E, ANTR2D, ANTR2E, TANO1C, ANTR2F	83mi	86°
	LANH2D, LANH1F, LANH1H, LANH2E	67mi	128°
	XOBA2D, XOBA1D	86mi	181°
	ENPA1F, ENPA2D	76mi	216°
	MISA1F, MISA2D	72mi	232°
	BACH2D, BACH1F	41mi	250°
	SAPE2D, SAPE1H	31mi	293°
RW25R
	ANTR1F, ANTR1D, KADU1G	113mi	37°
	TANO2E, TANO2D, TANO1F, TANO1D, KADU2F, KADU2D, ANTR2D, ANTR2E, ANTR2F	83mi	86°
	LANH1G, LANH1J, LANH2D, LANH2E	67mi	128°
	XOBA2D, XOBA1E	86mi	181°
	ENPA2D, ENPA1G	76mi	216°
	MISA1G, MISA2D	72mi	232°
	BACH1G, BACH2D	41mi	250°
	SAPE1J, SAPE2D	31mi	293°

STAR starting points		distance	inbound heading
ALL
	XOBA1S	40.8	2°
	DONX1S	40.0	206°
	VTV1S	37.1	316°
RW07 (ALL)
	BITI2G, BITI1S	41.2	37°
	ENPA1S	41.1	53°
	MISA1S	41.4	61°
	BACH1S	41.1	70°
	SAPE2G, SAPE1S	30.5	113°
	DONX1U	40.0	206°
	DALA2G	44.5	255°
	AC1S	31.9	257°
	VICA3G	40.8	352°
RW07L
	XOBA1F	40.8	2°
	BITI2D	41.2	37°
	SAPE2K	30.5	113°
	BAOM2D	39.5	266°
RW07R
	XOBA1G	40.8	2°
	BITI2E	41.2	37°
	SAPE2L	30.5	113°
	BAOM2E	39.5	266°
RW25 (ALL)
	BITI2J, BITI2H, BITI1T	41.2	37°
	ENPA1T	41.1	53°
	MISA1T	41.4	61°
	BACH1T	41.1	70°
	SAPE2J, SAPE2H, SAPE1T	30.5	113°
	DALA2J, DALA2H	44.5	255°
	AC1T	31.9	257°
	ELSA2H	66.5	308°
	VICA3H, VICA3J	40.8	352°
RW25L
	BITI2F	41.2	37°
	SAPE2M	30.5	113°
	BAOM2F	39.5	266°
	VICA2C	40.8	352°
RW25R
	BITI3G	41.2	37°
	SAPE2N	30.5	113°
	BAOM2G	39.5	266°
	VICA2D	40.8	352°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07L	SAMDU (56°)	SAMDU 5000ft TS526 (5mi, 24°) 2000ft
	RNAV	TS526 2000ft TS524 (3mi, 69°) 2000ft VVTS (7mi, 71°) 69ft TS594 (8mi, 68°) TS596 (7mi, 159°) TUNBI (14mi, 189°) 3000ft TUNBI (turn) 3000ft
RW07R	SAMDU (56°)	SAMDU 5000ft TS516 (5mi, 27°) 2000ft
	RNAV	TS516 2000ft TS514 (4mi, 69°) 2000ft VVTS (7mi, 69°) 78ft TS592 (8mi, 69°) TS596 (7mi, 159°) TUNBI (14mi, 189°) 3000ft TUNBI (turn) 3000ft
RW25L	BOMSU (249°)	BOMSU TS416 (5mi, 249°) 2000ft
RW25L	SOKAN (258°)	SOKAN TS416 (5mi, 277°) 2000ft
	RNAV	TS416 2000ft TS414 (3mi, 249°) 2000ft VVTS (7mi, 249°) 84ft TS612 (5mi, 249°) TS626 (10mi, 159°) TUNBI (11mi, 124°) 3000ft TUNBI (turn) 3000ft
RW25R	BOMSU (249°)	BOMSU TS426 (5mi, 252°) 2000ft
RW25R	SOKAN (258°)	SOKAN TS426 (5mi, 279°) 2000ft
	RNAV	TS426 2000ft TS424 (4mi, 249°) 2000ft VVTS (6mi, 248°) 84ft TS614 (5mi, 251°) TS626 (10mi, 159°) TUNBI (11mi, 124°) 3000ft TUNBI (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BAOM2D	BAOMY	VHF	left	71 (251)°	13000ft - 14000ft	1.0min timed	230
BAOM2D	MEKIN	VHF	left	43 (223)°	14000ft - 14000ft	1.0min timed	230
BAOM2D	PTH	NDB	left	220 (40)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2D	VETOM	VHF	left	56 (236)°	14000ft - 14000ft	1.0min timed	230
BAOM2E	BAOMY	VHF	left	71 (251)°	13000ft - 14000ft	1.0min timed	230
BAOM2E	MEKIN	VHF	left	43 (223)°	14000ft - 14000ft	1.0min timed	230
BAOM2E	PTH	NDB	left	220 (40)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2E	VETOM	VHF	left	56 (236)°	14000ft - 14000ft	1.0min timed	230
BAOM2F	BAOMY	VHF	left	71 (251)°	13000ft - 14000ft	1.0min timed	230
BAOM2F	ELSAS	VHF	left	128 (308)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2F	MEKIN	VHF	left	43 (223)°	14000ft - 14000ft	1.0min timed	230
BAOM2F	PTH	NDB	left	220 (40)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2F	VETOM	VHF	left	56 (236)°	14000ft - 14000ft	1.0min timed	230
BAOM2G	BAOMY	VHF	left	71 (251)°	13000ft - 14000ft	1.0min timed	230
BAOM2G	ELSAS	VHF	left	128 (308)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2G	MEKIN	VHF	left	43 (223)°	14000ft - 14000ft	1.0min timed	230
BAOM2G	PTH	NDB	left	220 (40)°	14000ft - 60000ft	1.5min timed	ICAO rules
BAOM2G	VETOM	VHF	left	56 (236)°	14000ft - 14000ft	1.0min timed	230
BITI2D	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2E	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2F	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2G	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2H	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2H	NOKUM	VHF	right	293 (113)°	12000ft - 14000ft	1.0min timed	220
BITI2J	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
BITI2J	BUTGA	VHF	left	275 (95)°	7000ft - 8000ft	1.0min timed	220
BITI3G	BITIS	VHF	right	216 (36)°	14000ft - 60000ft	1.5min timed	240
DALA2G	DALAP	VHF	left	57 (237)°	11000ft - 14000ft	1.0min timed	220
DALA2H	DALAP	VHF	left	57 (237)°	11000ft - 14000ft	1.0min timed	220
DALA2J	DALAP	VHF	left	57 (237)°	11000ft - 14000ft	1.0min timed	220
SAPE2H	NOKUM	VHF	right	293 (113)°	12000ft - 14000ft	1.0min timed	220
SAPE2J	BUTGA	VHF	left	275 (95)°	7000ft - 8000ft	1.0min timed	220
SAPE2K	SAPEN	VHF	right	295 (115)°	12000ft - 14000ft	1.0min timed	230
SAPE2L	SAPEN	VHF	right	295 (115)°	12000ft - 14000ft	1.0min timed	230
SAPE2M	SAPEN	VHF	right	295 (115)°	12000ft - 14000ft	1.0min timed	230
SAPE2N	SAPEN	VHF	right	295 (115)°	12000ft - 14000ft	1.0min timed	230
VICA2C	VICAL	VHF	right	181 (1)°	7000ft - 14000ft	1.0min timed	230
VICA2D	VICAL	VHF	right	181 (1)°	7000ft - 14000ft	1.0min timed	230
VICA3G	VICAL	VHF	right	181 (1)°	7000ft - 14000ft	1.0min timed	230
VICA3H	VICAL	VHF	right	181 (1)°	7000ft - 14000ft	1.0min timed	230
VICA3J	BUTGA	VHF	left	275 (95)°	7000ft - 8000ft	1.0min timed	220
XOBA1F	ELSAS	VHF	left	128 (308)°	14000ft - 60000ft	1.5min timed	ICAO rules
XOBA1F	XOBAV	VHF	right	182 (2)°	14000ft - 60000ft	1.5min timed	240
XOBA1G	ELSAS	VHF	left	128 (308)°	14000ft - 60000ft	1.5min timed	ICAO rules
XOBA1G	XOBAV	VHF	right	182 (2)°	14000ft - 60000ft	1.5min timed	240
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
