Airports for X-Plane

Van Don - Van Don Intl

Airport details

CountryVietnam
StateQuang Ninh Province
Region
AirspaceHanoi Ctr
MunicipalityVân Đồn District
Elevation23ft (7m)
TimezoneGMT +7
Coordinates21.10581, 107.40775
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVVD
IATA coden/a
FAA coden/a

Communication

Van Don Intl Tower_Pri118.100
Van Don Intl Tower Sec118.850

Approach frequencies

ILS-cat-IRW03109.918.00mi
3° GSRW03109.918.00mi
Nearby Points of Interest:
Ha Long Bay
-
Cat Ba Island

Runway info

Runway 03 / 21
 length3613m (11854ft)
 bearing27° / 207°
 width45m (148ft)
 surfaceconcrete
 blast zone100m (328ft) / 100m (328ft)

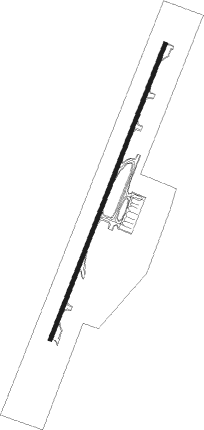

Airport layout


Taxiway locations

 A1  A2  B  B4  B5
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
VDOVANDON VOR/DME2.1209°115.40
CBICAT BI VOR/DME42.1247°117.40

Departure and arrival routes

Transition altitude2750ft
SID end pointsdistanceoutbound heading
RW03
 CATB1A, CATB1C18mi224°
 HALA1D, HALA1A18mi245°
 DOCH1D, DOCH1A17mi269°
 BACH1A16mi308°
 SAMS1A73mi313°
RW21
 CATB1D, CATB1B18mi224°
 HALA1B, HALA1E18mi245°
 DOCH1B17mi269°
 BACH1B16mi308°
 DOCH1E73mi313°

STAR starting pointsdistanceinbound heading
ALL
 HALA1C17.965°
 DOCH1C17.089°
 BACH1C15.6128°
RW03
 DOCH1F17.089°
 BACH1D15.6128°
RW21
 HALA1F17.965°
 DOCH1G17.089°
 NAKH1A72.6133°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YVD901 (320°)VD901 3000ft
VD902 (9mi, 267°) 3000ft
VD031 (5mi, 294°) 2630ft
 RNAVVD031 2630ft
VD030 (5mi, 27°) 1780ft
VVVD (5mi, 27°) 80ft
VD900 (5mi, 27°)
VD901 (17mi, 155°) 3000ft
VD901 (turn) 3000ft
RW03-ZVD032 (56°)VD032 4000ft
VD031 (6mi, 114°) 2630ft
 RNAVVD031 2630ft
VD030 (5mi, 27°) 1780ft
VVVD (5mi, 27°) 80ft
VD900 (5mi, 27°)
VD901 (17mi, 155°) 3000ft
VD901 (turn) 3000ft
RW21-YVD801 (286°)VD801 3000ft
VD802 (13mi, 347°) 3000ft
VD211 (5mi, 294°) 2600ft
 RNAVVD211 2600ft
VD210 (4mi, 208°) 1970ft
VVVD (8mi, 207°) 71ft
VD800 (2mi, 207°)
VD801 (13mi, 97°) 3000ft
VD801 (turn) 3000ft
RW21-ZSAMSU (172°)SAMSU 5000ft
VD211 (8mi, 114°) 2600ft
 RNAVVD211 2600ft
VD210 (4mi, 208°) 1970ft
VVVD (8mi, 207°) 71ft
VD800 (2mi, 207°)
VD801 (13mi, 97°) 3000ft
VD801 (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BACH1DBACHEVHFright354 (174)°6000ft - 14000ft1.0min timed230
DOCH1FDOCHUVHFright315 (135)°6000ft - 14000ft1.0min timed230
DOCH1GDOCHUVHFright315 (135)°6000ft - 14000ft1.0min timed230
DOCH1GSAMSUVHFright298 (118)°5000ft - 14000ft1.0min timed230
HALA1FHALAMVHFright214 (34)°7000ft - 14000ft1.0min timed230
HALA1FSAMSUVHFright298 (118)°5000ft - 14000ft1.0min timed230
NAKH1ASAMSUVHFright298 (118)°5000ft - 14000ft1.0min timed230
VAMA1AVAMAPVHFright252 (72)°6000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
