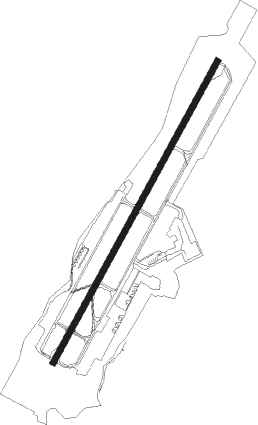

Yangon - Yangon Intl
Airport details
| Country | Myanmar |
| State | Yangon |
| Region | VY |
| Airspace | Yangon Ctr |
| Elevation | 106ft (32m) |
| Timezone | GMT +6.5 |
| Coordinates | 16.90682, 96.13773 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | VYYY |
| IATA code | RGN |
| FAA code | n/a |
Communication
| Yangon INTL ATIS | 128.400 |
| Yangon INTL MINGALADON Ground Control | 121.900 |
| Yangon INTL MINGALADON Tower | 118.100 |
| Yangon INTL MINGALADON Approach | 119.700 |
Approach frequencies
| ILS-cat-I | RW21 | 109.9 | 18.00mi |
| 3° GS | RW21 | 109.9 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MDS | MINGALADON (YANGON) NDB | 2.9 | 219° | 397 |
| HGU | HLEGU VOR/DME | 12.2 | 33° | 112.30 |
| BGO | BAGO VOR/DME | 33 | 43° | 112.60 |
Departure and arrival routes
| Transition altitude | 6000ft |
| Transition level | 7500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| BAGO1A | 33mi | 43° | |
| RISN1A | 165mi | 120° | |
| REBO1A | 162mi | 131° | |
| MAPK1A | 118mi | 137° | |
| RW21 | |||
| VISA1B, VISA1A, VISA1C | 136mi | 92° | |
| BOSP1B, BOSP1A | 259mi | 111° | |
| MARD1A | 162mi | 131° | |
| POME1A | 118mi | 137° | |
| PTN1A | 78mi | 266° | |
| MULG1A, MULG1B | 141mi | 310° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW03 | |||
| BAGO1B | 33.0 | 223° | |
| RISN1B | 165.4 | 300° | |
| REBO1B | 161.5 | 311° | |
| MAPK1B | 117.7 | 317° | |
| RW21 | |||
| OKIK1B, OKIK1A | 60.3 | 159° | |
| OROM1A | 80.8 | 195° | |
| RELA1A | 59.7 | 245° | |
| ENSI1B, ENSI1A | 59.7 | 301° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | EMREL (62°) | EMREL 4000ft YY902 (5mi, 122°) 1800ft |
| RW03 | OSIDA (35°) | OSIDA 4000ft YY902 (5mi, 34°) 1800ft |
| RW03 | PALPO (7°) | PALPO 4000ft YY902 (5mi, 302°) 1800ft |
| RNAV | YY902 1800ft LUNGO (5mi, 34°) 1800ft VYYY (6mi, 36°) 160ft YY903 (4mi, 14°) 1200ft YY904 (10mi, 288°) 2700ft BODIN (5mi, 200°) 3000ft BODIN (turn) 3000ft | |
| RW21 | BAGOO (223°) | BAGOO PAKSU (15mi, 229°) 4000ft HLEGU (6mi, 228°) 3000ft |
| RW21 | DANSO (241°) | DANSO 4000ft HLEGU (6mi, 301°) 3000ft |
| RW21 | GONAS (192°) | GONAS 4000ft HLEGU (6mi, 146°) 3000ft |
| RNAV | HLEGU 3000ft SULAP (7mi, 214°) 1500ft VYYY (6mi, 212°) 93ft YY901 (4mi, 231°) 1100ft PUKIS (12mi, 313°) 3000ft PUKIS (turn) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BAGO1B | BAGOO | VHF | right | 48 (228)° | 8000ft - 14000ft | 1.0min timed | 230 |
| BAGO1B | EMREL | VHF | left | 304 (124)° | > 4000ft | 1.0min timed | 230 |
| ENSI1A | BAGOO | VHF | right | 48 (228)° | 8000ft - 14000ft | 1.0min timed | 230 |
| ENSI1A | ENSIT | VHF | right | 154 (334)° | > 12000ft | 1.0min timed | 230 |
| ENSI1A | PAKSU | VHF | right | 48 (228)° | > 4000ft | 1.0min timed | 230 |
| ENSI1B | DANSO | VHF | right | 123 (303)° | > 4000ft | 1.0min timed | 230 |
| ENSI1B | ENSIT | VHF | right | 154 (334)° | > 12000ft | 1.0min timed | 230 |
| MAPK1B | PALPO | VHF | left | 124 (304)° | > 4000ft | 1.0min timed | 230 |
| OKIK1A | BAGOO | VHF | right | 48 (228)° | 8000ft - 14000ft | 1.0min timed | 230 |
| OKIK1A | OKIKO | VHF | right | 307 (127)° | > 13000ft | 1.0min timed | 230 |
| OKIK1A | PAKSU | VHF | right | 48 (228)° | > 4000ft | 1.0min timed | 230 |
| OKIK1B | GONAS | VHF | right | 328 (148)° | > 4000ft | 1.0min timed | 230 |
| OKIK1B | OKIKO | VHF | right | 307 (127)° | > 13000ft | 1.0min timed | 230 |
| OROM1A | BAGOO | VHF | right | 48 (228)° | 8000ft - 14000ft | 1.0min timed | 230 |
| OROM1A | OROMO | VHF | right | 359 (179)° | > 15000ft | 1.5min timed | 240 |
| OROM1A | PAKSU | VHF | right | 48 (228)° | > 4000ft | 1.0min timed | 230 |
| REBO1B | PALPO | VHF | left | 124 (304)° | > 4000ft | 1.0min timed | 230 |
| RELA1A | BAGOO | VHF | right | 48 (228)° | 8000ft - 14000ft | 1.0min timed | 230 |
| RELA1A | PAKSU | VHF | right | 48 (228)° | > 4000ft | 1.0min timed | 230 |
| RELA1A | RELAP | VHF | right | 88 (268)° | > 12000ft | 1.0min timed | 230 |
| RISN1B | PALPO | VHF | left | 124 (304)° | > 4000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
