Airports for X-Plane

Yangon - Yangon Intl

Airport details

CountryMyanmar
StateYangon
RegionVY
AirspaceYangon Ctr
Elevation106ft (32m)
TimezoneGMT +6.5
Coordinates16.90682, 96.13773
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVYYY
IATA codeRGN
FAA coden/a

Communication

Yangon INTL ATIS128.400
Yangon INTL MINGALADON Ground Control121.900
Yangon INTL MINGALADON Tower118.100
Yangon INTL MINGALADON Approach119.700

Approach frequencies

ILS-cat-IRW21109.918.00mi
3° GSRW21109.918.00mi

Runway info

Runway 03 / 21
 length3429m (11250ft)
 bearing34° / 214°
 width61m (200ft)
 surfaceasphalt
 blast zone60m (197ft) / 58m (190ft)

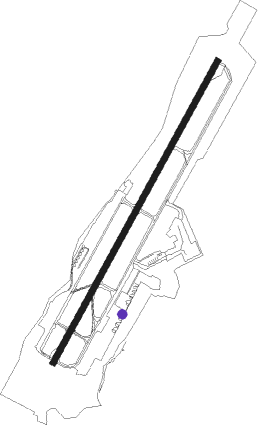

Airport layout - parking location 8


Taxiway locations

 A1  A2  A3  A4  A5  A6
Parking locations

 1  10  11  12  13  15  18  2
 3  4  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
MDSMINGALADON (YANGON) NDB2.9219°397
HGUHLEGU VOR/DME12.233°112.30
BGOBAGO VOR/DME3343°112.60

Departure and arrival routes

Transition altitude6000ft
Transition level7500ft
SID end pointsdistanceoutbound heading
RW03
 BAGO1A33mi43°
 RISN1A165mi120°
 REBO1A162mi131°
 MAPK1A118mi137°
RW21
 VISA1B, VISA1A, VISA1C136mi92°
 BOSP1B, BOSP1A259mi111°
 MARD1A162mi131°
 POME1A118mi137°
 PTN1A78mi266°
 MULG1A, MULG1B141mi310°

STAR starting pointsdistanceinbound heading
RW03
 BAGO1B33.0223°
 RISN1B165.4300°
 REBO1B161.5311°
 MAPK1B117.7317°
RW21
 OKIK1B, OKIK1A60.3159°
 OROM1A80.8195°
 RELA1A59.7245°
 ENSI1B, ENSI1A59.7301°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03EMREL (62°)EMREL 4000ft
YY902 (5mi, 122°) 1800ft
RW03OSIDA (35°)OSIDA 4000ft
YY902 (5mi, 34°) 1800ft
RW03PALPO (7°)PALPO 4000ft
YY902 (5mi, 302°) 1800ft
 RNAVYY902 1800ft
LUNGO (5mi, 34°) 1800ft
VYYY (6mi, 36°) 160ft
YY903 (4mi, 14°) 1200ft
YY904 (10mi, 288°) 2700ft
BODIN (5mi, 200°) 3000ft
BODIN (turn) 3000ft
RW21BAGOO (223°)BAGOO
PAKSU (15mi, 229°) 4000ft
HLEGU (6mi, 228°) 3000ft
RW21DANSO (241°)DANSO 4000ft
HLEGU (6mi, 301°) 3000ft
RW21GONAS (192°)GONAS 4000ft
HLEGU (6mi, 146°) 3000ft
 RNAVHLEGU 3000ft
SULAP (7mi, 214°) 1500ft
VYYY (6mi, 212°) 93ft
YY901 (4mi, 231°) 1100ft
PUKIS (12mi, 313°) 3000ft
PUKIS (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAGO1BBAGOOVHFright48 (228)°8000ft - 14000ft1.0min timed230
BAGO1BEMRELVHFleft304 (124)°> 4000ft1.0min timed230
ENSI1ABAGOOVHFright48 (228)°8000ft - 14000ft1.0min timed230
ENSI1AENSITVHFright154 (334)°> 12000ft1.0min timed230
ENSI1APAKSUVHFright48 (228)°> 4000ft1.0min timed230
ENSI1BDANSOVHFright123 (303)°> 4000ft1.0min timed230
ENSI1BENSITVHFright154 (334)°> 12000ft1.0min timed230
MAPK1BPALPOVHFleft124 (304)°> 4000ft1.0min timed230
OKIK1ABAGOOVHFright48 (228)°8000ft - 14000ft1.0min timed230
OKIK1AOKIKOVHFright307 (127)°> 13000ft1.0min timed230
OKIK1APAKSUVHFright48 (228)°> 4000ft1.0min timed230
OKIK1BGONASVHFright328 (148)°> 4000ft1.0min timed230
OKIK1BOKIKOVHFright307 (127)°> 13000ft1.0min timed230
OROM1ABAGOOVHFright48 (228)°8000ft - 14000ft1.0min timed230
OROM1AOROMOVHFright359 (179)°> 15000ft1.5min timed240
OROM1APAKSUVHFright48 (228)°> 4000ft1.0min timed230
REBO1BPALPOVHFleft124 (304)°> 4000ft1.0min timed230
RELA1ABAGOOVHFright48 (228)°8000ft - 14000ft1.0min timed230
RELA1APAKSUVHFright48 (228)°> 4000ft1.0min timed230
RELA1ARELAPVHFright88 (268)°> 12000ft1.0min timed230
RISN1BPALPOVHFleft124 (304)°> 4000ft1.0min timed230
*) magnetic outbound (inbound) holding course
