Airports for X-Plane

Biak-supiori Island - Biak Frans Kaisiepo

Airport details

CountryIndonesia
StatePapua
RegionWA
AirspaceUjung Pandang Ctr
MunicipalityBiak Kota
Elevation43ft (13m)
TimezoneGMT +9
Coordinates-1.19194, 136.11000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWABB
IATA codeBIK
FAA coden/a

Communication

Biak Frans Kaisiepo ATIS126.500
Biak Frans Kaisiepo Tower118.100
Biak Frans Kaisiepo BIAK Approach119.300
Biak Frans Kaisiepo BIAK Approach121.200

Approach frequencies

ILS-cat-IRW11110.518.00mi
3° GSRW11110.518.00mi

Runway info

Runway 11 / 29
 length3572m (11719ft)
 bearing109° / 289°
 width44m (144ft)
 surfaceconcrete
 blast zone59m (194ft) / 61m (200ft)

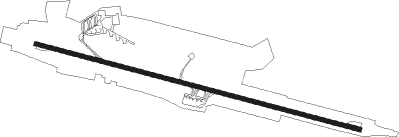

Airport layout


Taxiway locations

 B  C
Parking locations

 Biak  Stand

Nearby beacons

codeidentifierdistbearingfrequency
ZMBIAK NDB1303°230
BIKBIAK VOR/DME1.5292°112.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW11
 JODR1B, JODR1A116mi108°
 LINL1A, LINL1B99mi136°
 IBOG1F, IBOG1E100mi168°
 NOBY1A, NOBY1B100mi196°
 PEBD1B, PEBD1A101mi224°
 ONTA1B, ONTA1A100mi253°
 SEGL1A101mi278°
 FILM1A102mi284°
RW29
 JODR1E, JODR1D, JODR1C116mi108°
 LINL1E, LINL1C, LINL1D99mi136°
 IBOG1G, IBOG1H, IBOG1J100mi168°
 NOBY1E, NOBY1C, NOBY1D100mi196°
 PEBD1E, PEBD1C, PEBD1D101mi224°
 ONTA1C, ONTA1D, ONTA1E100mi253°
 SEGL1B, SEGL1C, SEGL1D101mi278°
 FILM1B, FILM1C, FILM1D102mi284°

STAR starting pointsdistanceinbound heading
ALL
 NOBY1F100.316°
 PEBD1F101.044°
 ONTA1F100.373°
 FILM1E101.6104°
 JODR1F116.4288°
 LINL1F98.8316°
 IBOG1K99.6348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11BIYAX (112°)BIYAX 5000ft
ANEPO (12mi, 258°)
GERAL (5mi, 300°) 4000ft
RILGA (5mi, 19°) 3000ft
BB503 (5mi, 109°) 2500ft
 RNAVBB503 2500ft
BB502 (4mi, 109°) 2000ft
BB501 (2mi, 109°) 1500ft
WABB (6mi, 110°) 88ft
(8174mi, 271°) 2500ft
BIYAX (8172mi, 90°) 5000ft
BIYAX (turn) 5000ft
RW29BIYAX (112°)BIYAX 5000ft
JAKMA (13mi, 86°)
NULOF (5mi, 109°) 4000ft
HADEE (5mi, 199°) 3000ft
BB602 (5mi, 289°) 2400ft
 RNAVBB602 2400ft
BB601 (4mi, 289°) 1700ft
BB603 (3mi, 289°) 786ft
(8177mi, 271°) 2500ft
BIYAX (8172mi, 90°) 5000ft
BIYAX (turn) 5000ft
