Biak-supiori Island - Biak Frans Kaisiepo

Airport details

Country	Indonesia
State	Papua
Region	WA
Airspace	Ujung Pandang Ctr
Municipality	Biak Kota
Elevation	43ft (13m)
Timezone	GMT +9
Coordinates	-1.19194, 136.11000
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	WABB
IATA code	BIK
FAA code	n/a

Communication

Biak Frans Kaisiepo ATIS	126.500
Biak Frans Kaisiepo Tower	118.100
Biak Frans Kaisiepo BIAK Approach	121.200
Biak Frans Kaisiepo BIAK Approach	119.300

Approach frequencies

ILS-cat-I	RW11	110.5	18.00mi
3° GS	RW11	110.5	18.00mi

Runway info

Runway 11 / 29
	length	3572m (11719ft)
	bearing	109° / 289°
	width	44m (144ft)
	surface	concrete
	blast zone	59m (194ft) / 61m (200ft)

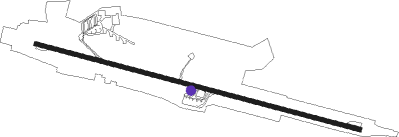

Airport layout - taxiway location B

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
ZM	BIAK NDB	1	303°	230
BIK	BIAK VOR/DME	1.5	292°	112.50

Departure and arrival routes

Transition altitude

18000ft

Transition level

18000ft

SID end points		distance	outbound heading
RW11
	JODR1B, JODR1A	116mi	108°
	LINL1A, LINL1B	99mi	136°
	IBOG1F, IBOG1E	100mi	168°
	NOBY1A, NOBY1B	100mi	196°
	PEBD1B, PEBD1A	101mi	224°
	ONTA1B, ONTA1A	100mi	253°
	SEGL1A	101mi	278°
	FILM1A	102mi	284°
RW29
	JODR1E, JODR1D, JODR1C	116mi	108°
	LINL1E, LINL1C, LINL1D	99mi	136°
	IBOG1G, IBOG1H, IBOG1J	100mi	168°
	NOBY1E, NOBY1C, NOBY1D	100mi	196°
	PEBD1E, PEBD1C, PEBD1D	101mi	224°
	ONTA1C, ONTA1D, ONTA1E	100mi	253°
	SEGL1B, SEGL1C, SEGL1D	101mi	278°
	FILM1B, FILM1C, FILM1D	102mi	284°

STAR starting points		distance	inbound heading
ALL
	NOBY1F	100.3	16°
	PEBD1F	101.0	44°
	ONTA1F	100.3	73°
	FILM1E	101.6	104°
	JODR1F	116.4	288°
	LINL1F	98.8	316°
	IBOG1K	99.6	348°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW11	BIYAX (112°)	BIYAX 5000ft ANEPO (12mi, 258°) GERAL (5mi, 300°) 4000ft RILGA (5mi, 19°) 3000ft BB503 (5mi, 109°) 2500ft
	RNAV	BB503 2500ft BB502 (4mi, 109°) 2000ft BB501 (2mi, 109°) 1500ft WABB (6mi, 110°) 88ft (8174mi, 271°) 2500ft BIYAX (8172mi, 90°) 5000ft BIYAX (turn) 5000ft
RW29	BIYAX (112°)	BIYAX 5000ft JAKMA (13mi, 86°) NULOF (5mi, 109°) 4000ft HADEE (5mi, 199°) 3000ft BB602 (5mi, 289°) 2400ft
	RNAV	BB602 2400ft BB601 (4mi, 289°) 1700ft BB603 (3mi, 289°) 786ft (8177mi, 271°) 2500ft BIYAX (8172mi, 90°) 5000ft BIYAX (turn) 5000ft
