Airports for X-Plane

Jayapura-papua Island - Jayapura Sentani

Airport details

CountryIndonesia
StatePapua
RegionWA
AirspaceUjung Pandang Ctr
MunicipalitySentani
Elevation289ft (88m)
TimezoneGMT +9
Coordinates-2.57570, 140.51811
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWAJJ
IATA codeDJJ
FAA coden/a

Communication

Jayapura Sentani ATIS128.800
Jayapura Sentani ATIS126.250
Jayapura Sentani Tower118.100
Jayapura Sentani JAYAPURA Approach119.100

Approach frequencies

ILS-cat-IRW30110.318.00mi
3° GSRW30110.318.00mi

Runway info

Runway 12 / 30
 length3002m (9849ft)
 bearing127° / 307°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 186m (610ft)

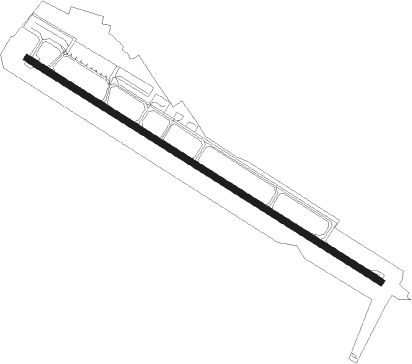

Airport layout


Taxiway locations

 A1  A2  A3  A4  A5  A6  B  B1
Parking locations

 G2  G3  G4  New

Nearby beacons

codeidentifierdistbearingfrequency
JPAJAYAPURA VOR/DME0.1208°116.20
VNOVANIMO NDB47.597°257

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW12
 VANK1A30mi107°
 MELA1A101mi178°
 MALI1A100mi226°
 TIST1A100mi240°
 KUBI1A99mi287°

STAR starting pointsdistanceinbound heading
RW30
 MALI2B100.246°
 TIST2B99.960°
 KUBI2B99.4107°
 VANK2B30.2287°
 MELA2B101.3358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW30TOARE (307°)TOARE 4000ft
JJ405 (3mi, 307°) 2800ft
 RNAVJJ405 2800ft
JJ406 (4mi, 307°) 2200ft
JJ407 (3mi, 307°) 1380ft
WAJJ (4mi, 308°) 318ft
TOARE (14mi, 127°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KUBI2BTOAREVHFleft123 (303)°> 4000ft1.0min timedICAO rules
MALI2BTOAREVHFleft123 (303)°> 4000ft1.0min timedICAO rules
MELA2BTOAREVHFleft123 (303)°> 4000ft1.0min timedICAO rules
TIST2BTOAREVHFleft123 (303)°> 4000ft1.0min timedICAO rules
VANK2BTOAREVHFleft123 (303)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
