Airports for X-Plane

Kota Kinabalu - Kota Kinabalu Intl

Airport details

CountryMalaysia
StateSabah
RegionWB
AirspaceKota Kinabalu Ctr
MunicipalityKota Kinabalu
Elevation7ft (2m)
TimezoneGMT +8
Coordinates5.93956, 116.05037
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWBKK
IATA codeBKI
FAA coden/a

Communication

Kota Kinabalu Intl ATIS127.400
Kota Kinabalu Intl KINABALU Ground Control121.600
Kota Kinabalu Intl KINABALU133.300
Kota Kinabalu Intl KINABALU Tower118.300
Kota Kinabalu Intl KINABALU Approach119.100

Approach frequencies

ILS-cat-IRW20111.118.00mi
ILS-cat-IRW02108.118.00mi
3° GSRW20111.118.00mi
3° GSRW02108.118.00mi

Runway info

Runway 02 / 20
 length3788m (12428ft)
 bearing23° / 203°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 269m (883ft)
 blast zone59m (194ft) / 7m (23ft)

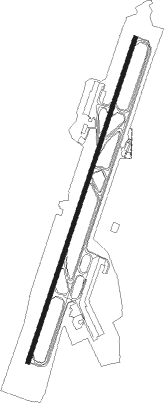

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  H
 J
Parking locations

 1  10  11  12  13  14  14A  15
 16  17  18  19  1A  1B  2  26
 27  28  29  2A  2B  3  30  31
 32  33  34  3A  3B  4  4A  4B
 5  5A  5B  6  6A  6B  7  8
 9

Nearby beacons

codeidentifierdistbearingfrequency
JSLKOTA KINABALU NDB2.5201°400
VJNKOTA KINABALU VOR/DME2.6202°113.10
VLBLABUAN VOR/DME61.3231°116.30
LABLABUAN NDB61.4230°260

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW02
 ENBA1J, ENBA1F48mi3°
 RUME2J, VETA1F129mi35°
 KABD1J, KABD1F48mi39°
 ANLO2J, ANLO2F, ANLO2G60mi92°
 TUSV1J, TUSV1F, TUSV1G74mi113°
 MAKS2J, MAKS2G, MAKS2F113mi128°
 ELAD2F, ELAD2J, ELAD2G64mi188°
 PIME2J, PIME2F82mi218°
 DULI2J, DULI2F82mi219°
 OREK1J, OREK1F93mi223°
 SUKU1F, SUKU1J61mi231°
 EGEN2F, EGEN2J55mi254°
 ADLE1J, ADLE1F48mi269°
RW20
 ENBA1K, ENBA1H, ENBA1G48mi3°
 VETA1H, VETA1G, RUME2K129mi35°
 KABD1K, KABD1H, KABD1G48mi39°
 ANLO2K, ANLO2H, ANLO2L60mi92°
 TUSV1L, TUSV1K, TUSV1H74mi113°
 MAKS2L, MAKS2H, MAKS2K113mi128°
 ELAD2H, ELAD2K64mi188°
 PIME2G, PIME2K82mi218°
 DULI2G, DULI2K82mi219°
 OREK1K, OREK1G93mi223°
 SUKU1K, SUKU1G61mi231°
 EGEN2K, EGEN2G55mi254°
 ADLE1K, ADLE1G48mi269°

STAR starting pointsdistanceinbound heading
RW02
 ELAD2D, ELAD2C63.88°
 PIME2B, PIME2D82.338°
 DULI2B, DULI2D81.839°
 OREK1B, OREK1D92.943°
 SUKU1B, SUKU1D61.351°
 EGEN2D, EGEN2B54.974°
 ADLE1D, ADLE1B47.689°
 ENBA1C, ENBA1B, ENBA1D47.7183°
 VETA1C, VETA1B, RUME2D128.6215°
 KABD1C, KABD1D, KABD1B47.6219°
 ANLO2B, ANLO2D59.8272°
 TUSV1D, TUSV1B73.7293°
 MAKS2D, MAKS2B113.3308°
RW20
 ELAD2E63.88°
 ELAD2A, ELAD2B42.79°
 PIME2A42.637°
 PIME2E82.338°
 DULI2E81.839°
 OREK1A42.542°
 OREK1E92.943°
 DULI2A42.546°
 SUKU1A42.350°
 SUKU1E61.351°
 EGEN2E54.974°
 EGEN2A41.374°
 ADLE1A47.689°
 ENBA1E, ENBA1A47.7183°
 RUME2E128.6215°
 VETA1A47.6216°
 KABD1E, KABD1A47.6219°
 ANLO2E59.8272°
 ANLO2A39.0274°
 TUSV1E73.7293°
 TUSV1A40.0294°
 MAKS2E113.3308°
 MAKS2A40.8311°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-ZANLOD (274°)ANLOD
KK826 (10mi, 260°) 10000ft
KK822 (4mi, 245°) 10000ft
KK818 (11mi, 231°) 7000ft
KK814 (4mi, 248°) 6100ft
KK586 (7mi, 265°) 6100ft
KK810 (3mi, 265°) 5100ft
KK584 (6mi, 296°) 3300ft
KK572 (3mi, 343°) 2600ft
KK570 (4mi, 359°) 1500ft
KK420 (2mi, 11°) 900ft
RW02-ZBEGRA (329°)BEGRA
KK580 (10mi, 299°) 6400ft
DOGVU (6mi, 299°) 6000ft
KK578 (2mi, 321°) 5900ft
KK576 (5mi, 321°) 4500ft
KK574 (3mi, 340°) 3400ft
KK572 (3mi, 359°) 2600ft
KK570 (4mi, 359°) 1500ft
KK420 (2mi, 11°) 900ft
RW02-ZEGENU (74°)EGENU
KK488 (22mi, 81°) 4000ft
KK480 (8mi, 81°) 2000ft
KK470 (6mi, 84°) 1900ft
KK562 (1mi, 72°) 1500ft
KK420 (2mi, 41°) 900ft
RW02-ZENBAX (183°)ENBAX
OKVUG (27mi, 183°) 5000ft
RUMAL (7mi, 203°) 4000ft
KK486 (9mi, 203°) 4000ft
KK482 (5mi, 203°) 4000ft
KK478 (2mi, 203°) 3600ft
KK474 (3mi, 180°) 3100ft
KK470 (4mi, 120°) 1900ft
KK562 (1mi, 72°) 1500ft
KK420 (2mi, 41°) 900ft
RW02-ZISNIN (49°)ISNIN 4000ft
LULPO (6mi, 52°) 2000ft
KK562 (11mi, 59°) 1500ft
KK420 (2mi, 41°) 900ft
 RNAVKK420 900ft
WBKK (4mi, 21°) 72ft
KK630 (4mi, 24°)
KK486 (7mi, 293°)
KK482 (5mi, 203°) 4000ft
RW20-ZANLOD (274°)ANLOD 11000ft
KK660 (11mi, 270°) 7200ft
GORKA (9mi, 270°) 7200ft
KK560 (6mi, 306°) 5400ft
KK558 (2mi, 288°) 4000ft
KK554 (2mi, 271°) 4000ft
KK552 (turn) 3700ft
KK550 (2mi, 310°) 2900ft
KK642 (2mi, 314°) 2400ft
KK636 (2mi, 280°) 2000ft
KK630 (3mi, 233°) 1000ft
RW20-ZELADO (9°)ELADO 7100ft
KK656 (16mi, 23°) 7100ft
DUMUB (22mi, 23°) 6200ft
KK566 (4mi, 358°) 5000ft
KK646 (5mi, 358°) 3400ft
KK550 (2mi, 345°) 2900ft
KK642 (2mi, 314°) 2400ft
KK636 (2mi, 280°) 2000ft
KK630 (3mi, 233°) 1000ft
RW20-ZRUMPA (55°)RUMPA
KK696 (6mi, 32°) 7600ft
KK692 (9mi, 32°) 4500ft
KK688 (4mi, 32°) 4000ft
KK684 (4mi, 32°) 3000ft
KK658 (4mi, 65°) 2100ft
KK638 (4mi, 125°) 2000ft
KK630 (4mi, 177°) 1000ft
RW20-ZSABNU (132°)SABNU
KK662 (6mi, 97°) 3300ft
KK658 (4mi, 97°) 2100ft
KK638 (4mi, 125°) 2000ft
KK630 (4mi, 177°) 1000ft
 RNAVKK630 1000ft
WBKK (4mi, 204°) 66ft
KK620 (4mi, 202°)
KK692 (10mi, 297°)
KK688 (4mi, 32°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADLE1DGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
ADLE1EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
ANLO2DBEKOVVHFleft202 (22)°6000ft - 14000ft1.0min timed210
ANLO2ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
DULI2EGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
DULI2EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
EGEN2DGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
EGEN2EGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
EGEN2EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
ELAD2DBEKOVVHFleft202 (22)°6000ft - 14000ft1.0min timed210
ENBA1ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
KABD1ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
MAKS2DBEKOVVHFleft202 (22)°6000ft - 14000ft1.0min timed210
MAKS2ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
OREK1EGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
OREK1EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
PIME2EGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
PIME2EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
RUME2ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
SUKU1EGOKISVHFright257 (77)°4000ft - 14000ft1.0min timed220
SUKU1EIKONOVHFright290 (110)°4000ft - 14000ft1.0min timed220
TUSV1DBEKOVVHFleft202 (22)°6000ft - 14000ft1.0min timed210
TUSV1ELANEKVHFright23 (203)°3700ft - 14000ft1.0min timed220
*) magnetic outbound (inbound) holding course
