Airports for X-Plane

Ketaping/padang-sumatra Island - Minangkabau Intl

Airport details

CountryIndonesia
StateWest Sumatra
RegionWI
AirspaceJakarta Ctr
MunicipalityPadang
Elevation18ft (5m)
TimezoneGMT +7
Coordinates-0.78833, 100.28639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWIEE
IATA codePDG
FAA coden/a

Communication

Minangkabau Intl Minang ATIS127.250
Minangkabau Intl Minang Tower118.300
Minangkabau Intl Padang Approach124.000

Approach frequencies

ILS-cat-IRW33111.518.00mi
3° GSRW33111.518.00mi
Nearby Points of Interest:
Ombilin coal mine
-
Sawahlunto

Runway info

Runway 15 / 33
 length2771m (9091ft)
 bearing155° / 335°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 62m (203ft)

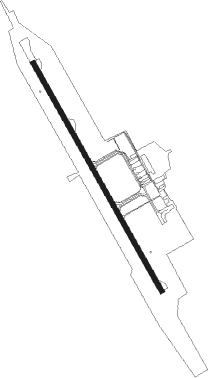

Airport layout


Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
MKBMINANGKABAU (PADANG PARIA VOR/DME0.4279°114.70
PDGPADANG VOR/DME6.3141°116.40
OQPADANG NDB9.2153°295
QQPADANG NDB9.2151°325

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW15
 OSNI1A26mi64°
 BEPN1A78mi116°
 PASO2E141mi116°
 NONA1A152mi133°
 LEBE1E68mi166°
 RIVM1A105mi299°
 ELDE1G201mi323°
 DOTM1E141mi336°
 NOKE1E144mi339°
RW33
 OSNI1B26mi64°
 BEPN1B78mi116°
 PASO2F141mi116°
 NONA1B152mi133°
 LEBE1F68mi166°
 RIVM1B105mi299°
 ELDE1H201mi323°
 DOTM1F141mi336°
 NOKE1F144mi339°

STAR starting pointsdistanceinbound heading
RW15
 ODIS1A100.8140°
 ELDE1J201.3143°
 NOKE1G144.1159°
 OSNI1C25.7244°
 PASO1G140.5296°
 NONA1C151.6313°
 LEBE1G68.1346°
RW33
 ODIS1B100.8140°
 ELDE1K201.3143°
 NOKE1H144.1159°
 OSNI1D25.7244°
 PASO1H140.5296°
 NONA1D151.6313°
 LEBE1H68.1346°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15BINIB (120°)BINIB 4000ft
EE501 (7mi, 63°) 2000ft
 RNAVEE501 2000ft
EE502 (5mi, 155°) 1700ft
WIEE (6mi, 153°) 68ft
(6023mi, 270°) 1500ft
BINIB (6012mi, 90°) 4000ft
BINIB (turn) 4000ft
RW33BAYUR (17°)BAYUR 5000ft
EE701 (10mi, 61°) 2500ft
 RNAVEE701 2500ft
EE702 (4mi, 335°) 2000ft
WIEE (7mi, 337°) 66ft
(6023mi, 270°) 1500ft
BAYUR (6018mi, 91°) 5000ft
BAYUR (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELDE1JBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
ELDE1KBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
LEBE1GBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
LEBE1HBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
NOKE1GBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
NOKE1HBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
NONA1CBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
NONA1DBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
ODIS1ABINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
ODIS1BBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
OSNI1CBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
OSNI1DBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
PASO1GBINIBVHFright300 (120)°> 4000ft1.0min timedICAO rules
PASO1HBAYURVHFleft195 (15)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
