Jakarta - Jakarta Halim Perdanakusuma Intl

Airport details

CountryIndonesia
StateJakarta Raya
RegionWI
AirspaceJakarta Ctr
MunicipalitySpecial Capital Region of Jakarta
Elevation83ft (25m)
TimezoneGMT +7
Coordinates-6.26750, 106.88639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWIHH
IATA codeHLP
FAA coden/a

Communication

Jakarta Halim Perdanakusuma Intl ATIS128.800
Jakarta Halim Perdanakusuma Intl Tower118.300
Jakarta Halim Perdanakusuma Intl JAKARTA Approach127.900
Jakarta Halim Perdanakusuma Intl JAKARTA DIRECTOR120.000
Jakarta Halim Perdanakusuma Intl JAKARTA ARR125.450
Jakarta Halim Perdanakusuma Intl JAKARTA Approach119.750
Jakarta Halim Perdanakusuma Intl JAKARTA ARR135.900
Jakarta Halim Perdanakusuma Intl JAKARTA Approach127.950
Jakarta Halim Perdanakusuma Intl JAKARTA DIRECTOR119.700

Approach frequencies

ILS-cat-IRW24111.718.00mi
3° GSRW24111.718.00mi

Runway info

Runway 06 / 24
 length3002m (9849ft)
 bearing65° / 245°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 198m (650ft)

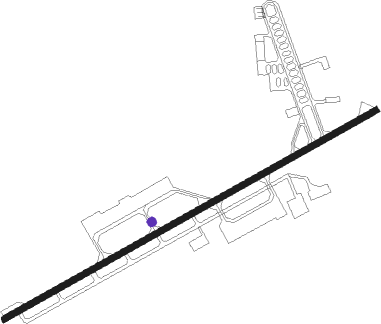

Airport layout - taxiway location B


Taxiway locations

 A  B  C  G  H
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
HLMHALIM PERDANAKUSUMA (JAKA VOR/DME0.2172°113.30
OBJAKARTA NDB4.7338°360
CBPONDOK CABE (JAKARTA) NDB8.6239°225
TGJAKARTA NDB8.6342°275
ALHALIM PERDANAKUSUMA (JAKARTA) NDB10.164°215
CLSOEKARNO-HATTA INTL (JAKARTA) NDB13.2317°258
CRSOEKARNO-HATTA INTL (JAKARTA) NDB14.5318°242
ASATANG SENDJAJA (BOGOR) NDB18.4203°398
BBJAKARTA NDB18.8351°310
TNTANGERANG NDB19266°400
BTOBUDIARTO (TANGERANG) VOR/DME19.2266°115.80
GLSOEKARNO-HATTA INTL (JAKARTA) NDB19.9291°324
GRSOEKARNO-HATTA INTL (JAKARTA) NDB19.9286°282
DKIJAKARTA VOR/DME20.426°114.60
CKGCENGKARENG (JAKARTA) VOR/DME21.8283°113.60
PWPURWAKARTA NDB38.1118°250
OZKALIJATI NDB50.4110°385
BNDBANDUNG VOR/DME52.5134°117
YYBANDUNG NDB54.7133°205
OYBANDUNG NDB60.1131°300

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06KOMIT (244°)KOMIT 4000ft
HH501 (10mi, 243°) 2500ft
HH502 (8mi, 215°) 2000ft
HH503 (4mi, 245°) 2000ft
HH504 (4mi, 335°) 2000ft
 RNAVHH504 2000ft
HH505 (5mi, 65°) 1600ft
WIHH (6mi, 65°) 129ft
KOMIT (10mi, 64°) 2500ft
