Jakarta - Jakarta Soekarno-hatta Intl

Airport details

Country	Indonesia
State	Banten
Region	WI
Airspace	Jakarta Ctr
Municipality	Tangerang
Elevation	34ft (10m)
Timezone	GMT +7
Coordinates	-6.12361, 106.66111
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	WIII
IATA code	CGK
FAA code	n/a

Communication

Jakarta Soekarno-Hatta Intl Soekarno-Hatta ATIS	126.850
Jakarta Soekarno-Hatta Intl Soekarno-Hatta DLV 1	125.150
Jakarta Soekarno-Hatta Intl Soekarno-Hatta DLV 2	121.950
Jakarta Soekarno-Hatta Intl Soekarno-Hatta Ground Control 1	121.750
Jakarta Soekarno-Hatta Intl Soekarno-Hatta Ground Control 2	121.600
Jakarta Soekarno-Hatta Intl Soekarno-Hatta Tower 2	118.200
Jakarta Soekarno-Hatta Intl PABELOKAN INFO	129.800
Jakarta Soekarno-Hatta Intl Soekarno-Hatta Tower 1	120.250
Jakarta Soekarno-Hatta Intl JAKARTA ARR	125.450
Jakarta Soekarno-Hatta Intl JAKARTA Approach	119.750
Jakarta Soekarno-Hatta Intl JAKARTA ARR	135.900
Jakarta Soekarno-Hatta Intl JAKARTA Approach	127.900
Jakarta Soekarno-Hatta Intl JAKARTA Departure	127.950

Approach frequencies

ILS-cat-I	RW25L	111.1	18.00mi
ILS-cat-I	RW25R	110.9	18.00mi
ILS-cat-I	RW07L	111.5	18.00mi
ILS-cat-I	RW07R	110.5	18.00mi
3° GS	RW25L	111.1	18.00mi
3° GS	RW25R	110.9	18.00mi
3° GS	RW07L	111.5	18.00mi
3° GS	RW07R	110.5	18.00mi

Runway info

Runway 07R / 25L
	length	3662m (12014ft)
	bearing	68° / 248°
	width	60m (197ft)
	surface	concrete
	blast zone	61m (200ft) / 58m (190ft)
Runway 07L / 25R
	length	3602m (11818ft)
	bearing	68° / 248°
	width	60m (197ft)
	surface	concrete
	blast zone	60m (197ft) / 60m (197ft)
Runway 06 / 24
	length	2991m (9813ft)
	bearing	68° / 248°
	width	60m (197ft)
	surface	asphalt

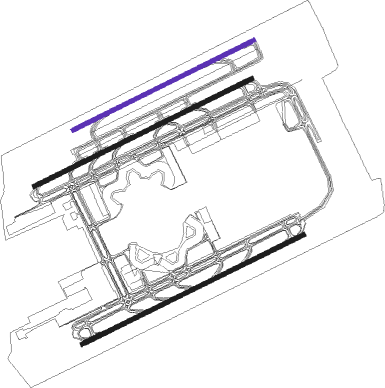

Airport layout - runway 06 / 24

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	Julian
Released	02 Aug 2021
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
CR	SOEKARNO-HATTA INTL (JAKARTA) NDB	4.3	60°	242
CL	SOEKARNO-HATTA INTL (JAKARTA) NDB	4.5	77°	258
GL	SOEKARNO-HATTA INTL (JAKARTA) NDB	5.3	255°	324
GR	SOEKARNO-HATTA INTL (JAKARTA) NDB	6.4	242°	282
CKG	CENGKARENG (JAKARTA) VOR/DME	8.7	244°	113.60
TG	JAKARTA NDB	10.8	92°	275
TN	TANGERANG NDB	11.4	209°	400
BTO	BUDIARTO (TANGERANG) VOR/DME	11.6	209°	115.80
OB	JAKARTA NDB	12.4	110°	360
CB	PONDOK CABE (JAKARTA) NDB	14.3	155°	225
BB	JAKARTA NDB	14.5	47°	310
HLM	HALIM PERDANAKUSUMA (JAKA VOR/DME	16.1	123°	113.30
AL	HALIM PERDANAKUSUMA (JAKARTA) NDB	23	101°	215
DKI	JAKARTA VOR/DME	24.3	67°	114.60
AS	ATANG SENDJAJA (BOGOR) NDB	26.3	166°	398
PW	PURWAKARTA NDB	54	119°	250
BND	BANDUNG VOR/DME	68.2	132°	117
YY	BANDUNG NDB	70.5	131°	205

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW06
	ABAS2J	79mi	27°
	AMBO2J	150mi	37°
	EGUK2J	154mi	57°
	AKSO2J	151mi	71°
	IMAB1A	77mi	138°
	REND1A	76mi	154°
	BOLA1A	124mi	189°
	GUPU1A	84mi	228°
	GUDB1A	74mi	297°
	RIMT1A	75mi	304°
	IGBO1A	74mi	308°
	GOME1A	75mi	318°
	DOLT2J	74mi	324°
RW07L
	ABAS2A	79mi	27°
	AMBO2A	150mi	37°
	EGUK2A	154mi	57°
	AKSO2A	151mi	71°
	IMAB1B	77mi	138°
	REND1B	76mi	154°
	BOLA1B	124mi	189°
	GUPU1B	84mi	228°
	GUDB1B	74mi	297°
	RIMT1B	75mi	304°
	IGBO1B	74mi	308°
	GOME1B	75mi	318°
	DOLT2A	74mi	324°
RW07R
	ABAS2B	79mi	27°
	AMBO2B	150mi	37°
	EGUK2B	154mi	57°
	AKSO2B	151mi	71°
	IMAB1C	77mi	138°
	REND1C	76mi	154°
	BOLA1C	124mi	189°
	GUPU1C	84mi	228°
	GUDB1C	74mi	297°
	RIMT1C	75mi	304°
	IGBO1C	74mi	308°
	GOME1C	75mi	318°
	DOLT2B	74mi	324°
RW24
	ABAS2K	79mi	27°
	AMBO2K	150mi	37°
	EGUK2K	154mi	57°
	AKSO2K	151mi	71°
	IMAB1D	77mi	138°
	REND1D	76mi	154°
	BOLA1D	124mi	189°
	GUPU1D	84mi	228°
	GUDB1D	74mi	297°
	RIMT1D	75mi	304°
	IGBO1D	74mi	308°
	GOME1D	75mi	318°
	DOLT2K	74mi	324°
RW25L
	ABAS2C	79mi	27°
	AMBO2C	150mi	37°
	EGUK2C	154mi	57°
	AKSO2C	151mi	71°
	IMAB1E	77mi	138°
	REND1E	76mi	154°
	BOLA1E	124mi	189°
	GUPU1E	84mi	228°
	GUDB1E	74mi	297°
	RIMT1E	75mi	304°
	IGBO1E	74mi	308°
	GOME1E	75mi	318°
	DOLT2C	74mi	324°
RW25R
	ABAS2D	79mi	27°
	AMBO2D	150mi	37°
	EGUK2D	154mi	57°
	AKSO2D	151mi	71°
	IMAB1F	77mi	138°
	REND1F	76mi	154°
	BOLA1F	124mi	189°
	GUPU1F	84mi	228°
	GUDB1F	74mi	297°
	RIMT1F	75mi	304°
	IGBO1F	74mi	308°
	GOME1F	75mi	318°
	DOLT2D	74mi	324°

STAR starting points		distance	inbound heading
RW06
	LADI1A	150.4	10°
	EGUK2L	154.1	237°
	AKSO2L	151.0	251°
	KURU2L	108.9	265°
	IMU2L	100.7	276°
	IPKO2L	150.7	320°
	TOPA1A	150.7	337°
RW07L
	LADI1B	150.4	10°
	EGUK2E	154.1	237°
	AKSO2E	151.0	251°
	KURU2E	108.9	265°
	IMU2E	100.7	276°
	IPKO2E	150.7	320°
	TOPA1B	150.7	337°
RW07R
	TKG2F	101.8	120°
	BIDA1A	130.5	163°
	BUNI2F	75.8	178°
	AMBO2F	149.6	217°
RW24
	TKG2M	101.8	120°
	BIDA1B	130.5	163°
	BUNI2M	75.8	178°
	AMBO2M	149.6	217°
RW25L
	LADI1C	150.4	10°
	EGUK2G	154.1	237°
	AKSO2G	151.0	251°
	KURU2G	108.9	265°
	IMU2G	100.7	276°
	IPKO2G	150.7	320°
	TOPA1C	150.7	337°
RW25R
	TKG2H	101.8	120°
	BIDA1C	130.5	163°
	BUNI2H	75.8	178°
	AMBO2H	149.6	217°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	NININ (77°)	NININ 2000ft KILIG (4mi, 89°) 2000ft
	RNAV	KILIG 2000ft LAXOX (4mi, 68°) 2000ft WIII (7mi, 76°) 79ft IBUVO (16mi, 8°) 3000ft LUVAX (27mi, 27°) 9000ft LUVAX (turn) 9000ft
RW07L	NININ (77°)	NININ 2000ft ODBAN (3mi, 96°) 2000ft
	RNAV	ODBAN 2000ft NEGLA (4mi, 68°) 2000ft WIII (7mi, 73°) 79ft IBUVO (16mi, 8°) 3000ft LUVAX (27mi, 27°) 9000ft LUVAX (turn) 9000ft
RW07R	OLPAS (76°)	OLPAS 5000ft KOTAB (4mi, 122°) 4000ft
	RNAV	KOTAB 4000ft GULEX (6mi, 68°) 3000ft WIII (11mi, 65°) 84ft OBGEG (17mi, 70°) UBNUX (23mi, 80°) 3000ft UBNUX (turn) 3000ft
RW24	PRIOK (235°)	PRIOK 3000ft MILEA (7mi, 221°) 2000ft
	RNAV	MILEA 2000ft LUXAT (4mi, 248°) 2000ft NOBOS (3mi, 248°) 1200ft WIII (5mi, 237°) 69ft TIKAM (11mi, 358°) 3000ft LUVAX (32mi, 27°) 6000ft LUVAX (turn) 6000ft
RW25L	OBGEG (250°)	OBGEG 4000ft UGSEL (2mi, 248°) 4000ft
	RNAV	UGSEL 4000ft LEKOT (5mi, 248°) 3000ft POROX (6mi, 248°) 1300ft WIII (5mi, 257°) 77ft (6400mi, 273°) 3000ft KINEZ (6409mi, 93°) 5000ft UBNUX (31mi, 74°) 6000ft UBNUX (turn) 6000ft
RW25R	PRIOK (235°)	PRIOK 3000ft ARKAP (7mi, 219°) 2000ft
	RNAV	ARKAP 2000ft INSTO (3mi, 248°) 2000ft RUROM (3mi, 248°) 1200ft WIII (4mi, 240°) 71ft TIKAM (11mi, 358°) 3000ft LUVAX (32mi, 27°) 6000ft LUVAX (turn) 6000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AKSO2E	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
AKSO2E	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
AKSO2E	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
AKSO2G	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
AKSO2G	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
AKSO2G	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
AKSO2L	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
AKSO2L	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
AKSO2L	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
AMBO2F	DENDY	VHF	right	27 (207)°	> 26000ft	1.5min timed	265
AMBO2F	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
AMBO2H	DENDY	VHF	right	27 (207)°	> 26000ft	1.5min timed	265
AMBO2H	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
AMBO2M	DENDY	VHF	right	27 (207)°	> 26000ft	1.5min timed	265
AMBO2M	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BIDA1A	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BIDA1A	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BIDA1B	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BIDA1B	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BIDA1C	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BIDA1C	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BUNI2F	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BUNI2F	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BUNI2H	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BUNI2H	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
BUNI2M	BUNIK	VHF	left	334 (154)°	> 26000ft	1.5min timed	265
BUNI2M	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
EGUK2E	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
EGUK2E	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
EGUK2E	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
EGUK2G	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
EGUK2G	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
EGUK2G	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
EGUK2L	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
EGUK2L	OLDUN	VHF	right	89 (269)°	> 26000ft	1.5min timed	265
EGUK2L	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IMU2E	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IMU2E	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IMU2E	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IMU2G	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IMU2G	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IMU2G	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IMU2L	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IMU2L	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IMU2L	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IPKO2E	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IPKO2E	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IPKO2E	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IPKO2G	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IPKO2G	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IPKO2G	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
IPKO2L	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
IPKO2L	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
IPKO2L	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
KURU2E	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
KURU2E	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
KURU2G	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
KURU2G	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
KURU2L	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
KURU2L	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
LADI1A	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
LADI1A	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
LADI1A	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
LADI1B	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
LADI1B	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
LADI1B	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
LADI1C	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
LADI1C	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
LADI1C	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
TKG2F	BIDOV	VHF	left	269 (89)°	> 26000ft	1.5min timed	265
TKG2F	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
TKG2H	BIDOV	VHF	left	269 (89)°	> 26000ft	1.5min timed	265
TKG2H	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
TKG2M	BIDOV	VHF	left	269 (89)°	> 26000ft	1.5min timed	265
TKG2M	LUVAX	VHF	right	334 (154)°	21000ft - 24000ft	1.5min timed	240
TOPA1A	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
TOPA1A	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
TOPA1A	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
TOPA1B	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
TOPA1B	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
TOPA1B	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
TOPA1C	IGUNA	VHF	right	89 (269)°	18000ft - 25000ft	1.5min timed	265
TOPA1C	IMU	NDB	right	89 (269)°	> 26000ft	1.5min timed	265
TOPA1C	UBNUX	VHF	right	89 (269)°	19000ft - 22000ft	1.5min timed	240
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.

capital control tower arriving airdrome flight attendant airport apron taxiway train station stolport landing area heliport concrete nation transit air safety hotel customs landing runway lighting airbase

Airports for X-Plane
