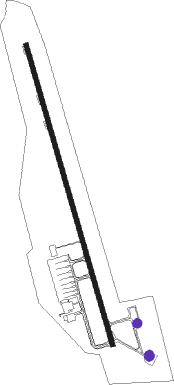

Banda Aceh - Banda Aceh Sultan Iskandarmuda
Airport details
| Country | Indonesia |
| State | Aceh |
| Region | WI |
| Airspace | Jakarta Ctr |
| Municipality | Blang Bintang |
| Elevation | 62ft (19m) |
| Timezone | GMT +7 |
| Coordinates | 5.51413, 95.42490 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.32 |
| ICAO code | WITT |
| IATA code | BTJ |
| FAA code | n/a |
Communication
| Banda Aceh Sultan Iskandarmuda Tower | 122.200 |
Approach frequencies
| ILS-cat-I | RW17 | 111.3 | 18.00mi |
| 3° GS | RW17 | 111.3 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| BAC | BANDA ACEH VOR/DME | 0.5 | 343° | 113.40 |
| WE | SABANG NDB | 22.3 | 346° | 310 |
Departure and arrival routes
| Transition altitude | 11000ft |
| Transition level | 13000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW17 | |||
| ANSA2E, ANSA1A | 30mi | 10° | |
| TASE1B, TASE1A | 173mi | 95° | |
| DUAM1A, DUAM2E | 126mi | 97° | |
| AVDI1A, AVDI1C | 117mi | 107° | |
| OPUN1G, OPUN1E | 112mi | 122° | |
| ELDE1C, ELDE1A | 276mi | 142° | |
| IVRA1A, IVRA1C | 101mi | 151° | |
| BULV1C, BULV1A | 102mi | 236° | |
| EMRE1A | 37mi | 237° | |
| OTKU1A | 43mi | 247° | |
| RW35 | |||
| ANSA2F, ANSA3B | 30mi | 10° | |
| TASE1C, TASE1D | 173mi | 95° | |
| DUAM2F, DUAM3B | 126mi | 97° | |
| AVDI1D, AVDI1B | 117mi | 107° | |
| OPUN1F, OPUN1H | 112mi | 122° | |
| ELDE1D, ELDE1B | 276mi | 142° | |
| IVRA1D, IVRA1B | 101mi | 151° | |
| BULV1B, BULV1D | 102mi | 236° | |
| EMRE1B | 37mi | 237° | |
| OTKU1B | 43mi | 247° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW17 | |||
| BULV1E | 102.4 | 56° | |
| UDOL1A | 37.0 | 57° | |
| AKPU1A | 131.4 | 70° | |
| URDA1A | 57.5 | 82° | |
| ANSA2C, ANSA3D | 29.6 | 190° | |
| TASE1F, TASE1E | 172.5 | 275° | |
| DUAM3C, DUAM3D | 125.6 | 277° | |
| OPUN1K, OPUN1J | 111.9 | 302° | |
| BUDG1A, BUDG1B | 114.3 | 316° | |
| ELDE1E, ELDE1F | 276.3 | 322° | |
| IVRA1F, IVRA1E | 100.9 | 331° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW17 | VAVDO (168°) | VAVDO 5000ft TT501 (4mi, 168°) 3500ft |
| RNAV | TT501 3500ft TT502 (5mi, 168°) 2300ft TT503 (6mi, 168°) 547ft VAVDO (16mi, 348°) 5000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| AKPU1A | TT424 | VHF | left | 242 (62)° | 1.0min timed | ICAO rules | |
| AKPU1A | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| ANSA2C | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| ANSA3D | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| BUDG1A | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| BUDG1B | TT409 | VHF | right | 161 (341)° | 1.0min timed | ICAO rules | |
| BUDG1B | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| BULV1E | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| DUAM3C | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| DUAM3D | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| ELDE1E | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| ELDE1F | TT409 | VHF | right | 161 (341)° | 1.0min timed | ICAO rules | |
| ELDE1F | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| IVRA1E | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| IVRA1F | TT409 | VHF | right | 161 (341)° | 1.0min timed | ICAO rules | |
| IVRA1F | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| OPUN1J | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| OPUN1K | TT409 | VHF | right | 161 (341)° | 1.0min timed | ICAO rules | |
| OPUN1K | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| TASE1E | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| TASE1F | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| UDOL1A | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| URDA1A | TT424 | VHF | left | 242 (62)° | 1.0min timed | ICAO rules | |
| URDA1A | VAVDO | VHF | left | 349 (169)° | > 5000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
