Alor Satar - Alor Setar Sultan Abdul Halim

Airport details

CountryMalaysia
StateKedah
RegionWM
AirspaceKuala Lumpur Ctr
MunicipalityAlor Setar
Elevation15ft (5m)
TimezoneGMT +8
Coordinates6.19447, 100.40083
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWMKA
IATA codeAOR
FAA coden/a

Communication

Alor Setar Sultan Abdul Halim ALOR STAR Ground Control121.600
Alor Setar Sultan Abdul Halim ALOR STAR Tower122.300
Alor Setar Sultan Abdul Halim ALOR STAR Approach122.300

Approach frequencies

ILS-cat-IRW04111.718.00mi
3° GSRW04111.718.00mi

Runway info

Runway 04 / 22
 length2950m (9678ft)
 bearing42° / 222°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 200m (656ft)
 blast zone60m (197ft) / 0m (0ft)

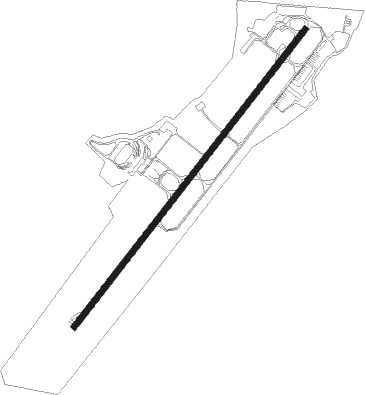

Airport layout


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
VASALOR SETAR VOR/DME0.5204°113.60
ATALOR STAR NDB2.7220°385
VPLLANGKAWI VOR/DME40.2284°114.10
VBTBUTTERWORTH VORTAC43181°113.30
HTYHAT YAI VOR/DME44.4359°115.30
BETBETONG (YALA) VOR/DME50.7119°113.10
VPGPENANG VOR/DME55.5189°116.20
PTPATTANI NDB5752°201
SKSONGKHLA NDB60.812°410
SKLSONGKHLA VOR/DME60.912°113.50

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW22
 TAMO1B, TAMO1D20mi
 GUTE1B, GUTE1D26mi164°
 OMBU1B, OMBU1D56mi189°
 AKMI1D, AKMI1B66mi195°
 SAGE1D, SAGE1B25mi283°
 DUBA1B, DUBA1D22mi311°
 RIGT1D, RIGT1B32mi344°

STAR starting pointsdistanceinbound heading
RW04
 JERA1E25.6
 JERA1G, PAYA1E55.5
 MULO1G, MULO1E25.486°
 TAMO1E, TAMO1G20.4180°
 KARM1G, KARM1E19.4202°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-YBUVDU (23°)BUVDU 3500ft
OLTIP (5mi, 333°) 2500ft
KA502 (3mi, 42°) 1700ft
RW04-YESMIR (62°)ESMIR 3500ft
OLTIP (5mi, 112°) 2500ft
KA502 (3mi, 42°) 1700ft
RW04-YPAYAR (42°)PAYAR 3500ft
OLTIP (6mi, 42°) 2500ft
KA502 (3mi, 42°) 1700ft
 RNAVKA502 1700ft
KA501 (2mi, 42°) 1700ft
WMKA (6mi, 42°) 62ft
KA500 (turn) 500ft
BIDAL (8mi, 275°) 2500ft
BIDAL (turn) 2500ft
RW04-ZBIDAL (100°)BIDAL 3500ft
KA434 (1mi, 198°) 3500ft
KA430 (turn) 3300ft
MANBI (5mi, 120°) 1100ft
RW04-ZEXOMA (28°)EXOMA 4500ft
OMGOG (15mi, 24°) 2500ft
KA404 (3mi, 24°) 1500ft
MANBI (1mi, 33°) 1100ft
RW04-ZPAYAR (42°)PAYAR 3500ft
KEDAH (7mi, 43°) 2500ft
KA420 (1mi, 42°) 2500ft
MANBI (5mi, 42°) 1100ft
RW04-ZVPG (9°)VPG 7000ft
KA440 (39mi, 4°) 3800ft
OMGOG (8mi, 4°) 2500ft
KA404 (3mi, 24°) 1500ft
MANBI (1mi, 33°) 1100ft
 RNAVMANBI 1100ft
WMKA (5mi, 41°) 64ft
KA500 (turn)
KA504 (2mi, 24°)
KA508 (6mi, 294°)
BIDAL (5mi, 222°) 3500ft
