Airports for X-Plane

Penang - Penang Intl

Airport details

CountryMalaysia
StatePenang
RegionWM
AirspaceKuala Lumpur Ctr
MunicipalitySouthwest Penang Island District
Elevation11ft (3m)
TimezoneGMT +8
Coordinates5.29722, 100.27666
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWMKP
IATA codePEN
FAA coden/a

Communication

Penang Intl ATIS126.400
Penang Intl Ground Control121.600
Penang Intl Tower121.100

Approach frequencies

ILS-cat-IRW04109.918.00mi
3° GSRW04109.918.00mi

Runway info

Runway 04 / 22
 length3361m (11027ft)
 bearing42° / 222°
 width46m (151ft)
 surfaceasphalt
 blast zone62m (203ft) / 62m (203ft)

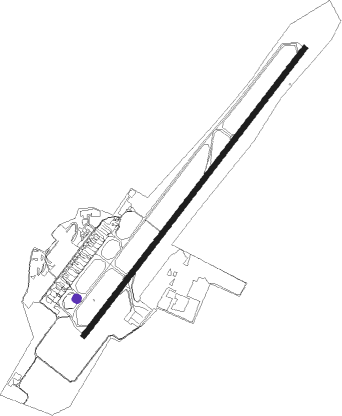

Airport layout - taxiway location F


Taxiway locations

 A  B  C  D  E  F  G  H
 J
Parking locations

 B11A  B11b  B11D  Cargo  Gate

Nearby beacons

codeidentifierdistbearingfrequency
VPGPENANG VOR/DME1.4222°116.20
VBTBUTTERWORTH VORTAC12.833°113.30
ATALOR STAR NDB526°385
VASALOR SETAR VOR/DME53.88°113.60
BETBETONG (YALA) VOR/DME59.561°113.10
VIHIPOH VOR/DME65.4132°117.30

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW04
 LUNT1C, LUNT1A54mi8°
 BETN1C, BETN1A47mi81°
 KABO1A, KABO1C65mi132°
 BOGU1A, BOGU1C62mi144°
 UDIK1C, UDIK1A60mi175°
 MADU1A, MADU1C66mi223°
 OMBO1C, OMBO1A45mi333°
 GOGO1A25mi351°
 UGAM1A23mi357°
RW22
 LUNT1D, LUNT1B54mi8°
 BETN1B, BETN1D47mi81°
 KABO1D, KABO1B65mi132°
 BOGU1D, BOGU1B62mi144°
 UDIK1D, UDIK1B60mi175°
 MADU1B, MADU1D66mi223°
 OMBO1B, OMBO1D45mi333°
 GOGO1B25mi351°
 UGAM1B23mi357°

STAR starting pointsdistanceinbound heading
RW04
 MADU1E65.543°
 OMBO1E44.5153°
 LUNT1E53.8188°
 BETN1E47.2261°
 GORV1E73.5337°
RW22
 MADU1F65.543°
 OMBO1F44.5153°
 LUNT1F53.8188°
 BETN1F47.2261°
 GORV1F73.5337°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-YBEMPA (66°)BEMPA 3100ft
IKODI (7mi, 112°) 2000ft
RW04-YISTUS (42°)ISTUS 3100ft
IKODI (5mi, 42°) 2000ft
RW04-YKAMBU (18°)KAMBU 3100ft
IKODI (7mi, 332°) 2000ft
 RNAVIKODI 2000ft
KP701 (5mi, 42°) 2000ft
WMKP (7mi, 42°) 59ft
(6020mi, 267°) 1700ft
MUBOR (6030mi, 87°) 4300ft
MUBOR (turn) 4300ft
RW04-ZGORVU (337°)GORVU 7000ft
IBITU (21mi, 326°) 3200ft
KP414 (5mi, 326°) 2100ft
TOKUM (4mi, 4°) 900ft
RW04-ZOMBOK (152°)OMBOK 8000ft
NISON (22mi, 168°) 4100ft
PEBMA (3mi, 168°) 3100ft
KP404 (3mi, 168°) 2900ft
KP402 (4mi, 126°) 1600ft
TOKUM (2mi, 63°) 900ft
RW04-ZVAVTA (328°)VAVTA 3500ft
KP460 (2mi, 230°) 3200ft
KP414 (5mi, 278°) 2100ft
TOKUM (4mi, 4°) 900ft
 RNAVTOKUM 900ft
WMKP (4mi, 42°) 59ft
ISKAP (4mi, 42°)
KP454 (8mi, 136°)
VAVTA (6mi, 230°) 3500ft
RW22-YLUKMA (196°)LUKMA 4100ft
IGBEN (7mi, 133°) 2500ft
RW22-YNUSTO (244°)NUSTO 3500ft
IGBEN (7mi, 292°) 2500ft
RW22-YRUMKI (222°)RUMKI 3500ft
IGBEN (7mi, 222°) 2500ft
 RNAVIGBEN 2500ft
KP601 (5mi, 223°) 2500ft
WMKP (9mi, 222°) 60ft
(6020mi, 267°) 2000ft
ADLUN (6007mi, 87°) 5000ft
ADLUN (turn) 5000ft
RW22-ZAVGAT (261°)AVGAT
KP688 (12mi, 269°) 4600ft
KP686 (5mi, 269°) 3000ft
KP684 (3mi, 269°) 2000ft
KP682 (3mi, 269°) 2000ft
ISKAP (3mi, 246°) 1000ft
RW22-ZEPDID (274°)EPDID 3100ft
KP627 (4mi, 327°) 3100ft
KP682 (4mi, 298°) 2000ft
ISKAP (3mi, 246°) 1000ft
RW22-ZNUNSU (176°)NUNSU 4300ft
PIGIK (4mi, 139°) 3600ft
KP604 (2mi, 139°) 3600ft
ISKAP (8mi, 181°) 1000ft
 RNAVISKAP 1000ft
WMKP (4mi, 222°) 60ft
TOKUM (4mi, 222°)
KP634 (9mi, 133°)
EPDID (11mi, 44°) 3100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BETN1EBUBRAVHFleft42 (222)°> 7000ft1.0min timed230
BETN1FAVGATVHFright103 (283)°> 7100ft1.0min timed230
GORV1EAVLOMVHFright127 (307)°> 3100ft1.0min timed230
GORV1FKAMBUVHFright222 (42)°> 9000ft1.0min timed230
LUNT1EADLUNVHFright10 (190)°> 6000ft1.0min timed230
LUNT1FLUKMAVHFright312 (132)°> 4300ft1.0min timed230
MADU1EMADUMVHFright225 (45)°> 7000ft1.0min timed230
MADU1FKAMBUVHFright222 (42)°> 9000ft1.0min timed230
OMBO1EADLUNVHFright10 (190)°> 6000ft1.0min timed230
OMBO1FLUKMAVHFright312 (132)°> 4300ft1.0min timed230
*) magnetic outbound (inbound) holding course
