Subang - Kuala Lumpur S Abdul Aziz Shah

Airport details

Country	Malaysia
State	Selangor
Region	WM
Airspace	Kuala Lumpur Ctr
Municipality	Shah Alam
Elevation	87ft (27m)
Timezone	GMT +8
Coordinates	3.12500, 101.56052
Magnetic var	-0.2°
Type	land
Available since	X-Plane v10.40
ICAO code	WMSA
IATA code	SZB
FAA code	n/a

Communication

Kuala Lumpur S Abdul Aziz Shah SUBANG INFO	127.600
Kuala Lumpur S Abdul Aziz Shah LUMPUR Clearance	126.000
Kuala Lumpur S Abdul Aziz Shah SUBANG Ground Control	121.900
Kuala Lumpur S Abdul Aziz Shah SUBANG Tower	118.200
Kuala Lumpur S Abdul Aziz Shah LUMPUR DIRECTOR	118.650
Kuala Lumpur S Abdul Aziz Shah LUMPUR DIRECTOR	124.200

Approach frequencies

ILS-cat-I	RW15	110.3	18.00mi
3° GS	RW15	110.3	18.00mi

Runway info

Runway 15 / 33
	length	3799m (12464ft)
	bearing	150° / 330°
	width	47m (154ft)
	surface	asphalt
	blast zone	61m (200ft) / 61m (200ft)

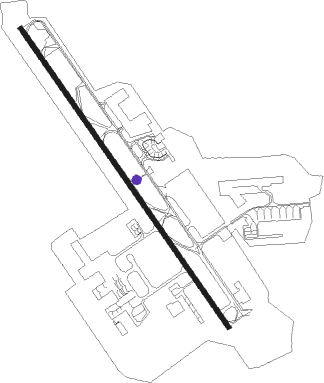

Airport layout - taxiway location F

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	PL4
Released	25 Jan 2024
Included since	X-Plane v12.1.0
Features	› has taxi route

Nearby beacons

code	identifier	dist	bearing	frequency
CE	CALEDONIAN (KUALA LUMPUR) NDB	12.1	327°	205
VBA	BATU ARANG VOR/DME	13.5	333°	114.70
VSP	SEPANG VOR/DME	23.3	164°	114.40
VKL	KUALA LUMPUR VOR/DME	26.3	156°	116.10
VMK	MALACCA VOR/DME	66.3	142°	117.40

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW15
	PULI1T, PULI1S	39mi	32°
	MATS1S, MATS1T	38mi	60°
	PIBO1L	33mi	65°
	ADNU1T, ADNU1S	65mi	78°
	KIMA1T, KIMA1S, KIMA1L	47mi	87°
	GUPTA	87mi	132°
	RUSB1L	87mi	139°
	BATA1S	66mi	151°
	DUMO1S	56mi	152°
	MITO1S, MITO1L	76mi	155°
	VKL	26mi	156°
	RUMI1S	47mi	177°
	SALA1L	55mi	180°
	AGOSA	21mi	273°
	PUGE1L	78mi	282°
	BILI1S, BILI1T	29mi	297°
	IBUK1L	55mi	301°
	SUKA1S, SUKA1T	43mi	311°
	ATIM1L	48mi	313°
	BIKD1L	44mi	349°
RW33
	GUPTA	87mi	132°
	BATAR	66mi	151°
	VKL	26mi	156°
	BILIKA, BILIKB	29mi	297°
	SUKAT	43mi	311°

STAR starting points		distance	inbound heading
RW15
	PUGE1M	77.7	102°
	NIRE1M	64.7	110°
	KAKA1M	43.4	153°
	PULI1M	38.6	212°
	SARO1M	69.4	286°
	GUPT1M	86.8	312°
	SALA1M	55.1	360°

Actual weather data

METAR WMSA 161000Z 29008KT 260V320 9999 FEW017CB 34/25 Q1007

TAF WMSA 160500Z 1606/1706 26007KT 9999 FEW018
