Suai - Xanana Gusmao Intl

Airport details

CountryTimor-Leste
StateCova Lima
RegionWP
AirspaceUjung Pandang Ctr
MunicipalityMaucatar
Elevation120ft (37m)
TimezoneGMT +9
Coordinates-9.30002, 125.28362
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWPDB
IATA codeUAI
FAA coden/a

Communication

Xanana Gusmao Intl TIMOR COMMON LOW127.100

Runway info

Runway 17 / 35
 length1507m (4944ft)
 bearing167° / 347°
 width30m (98ft)
 surfaceasphalt

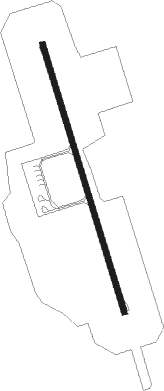

Airport layout


Taxiway locations

 35  A  B
Parking locations

 1  2  H1

Nearby beacons

codeidentifierdistbearingfrequency
SUISUAI VOR/DME0.343°114.10
HLWATAMBUA VOR/DME25.9301°112.50
DILDILI VOR/DME47.618°113.40
OECOECUSSI VOR/DME56.8276°113.60

Departure and arrival routes

Transition altitude12000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW17
 ISMU1A72mi106°
 KIKE1A61mi125°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW35IGESA (198°)IGESA 11000ft
EKOBA (8mi, 161°) 7500ft
UGRID (11mi, 161°) 3900ft
BITUG (4mi, 230°) 3000ft
ISLOT (5mi, 277°) 1700ft
RW35KIGEK (347°)KIGEK 3000ft
ISLOT (5mi, 347°) 1700ft
RW35KIKEM (305°)KIKEM
UGRID (49mi, 305°) 3900ft
BITUG (4mi, 230°) 3000ft
ISLOT (5mi, 277°) 1700ft
RW35NUGDO (11°)NUGDO 3000ft
ISLOT (5mi, 58°) 1700ft
 RNAVISLOT 1700ft
DB419 (3mi, 347°) 1700ft
DB418 (4mi, 347°) 601ft
UGRID (10mi, 116°)
BITUG (4mi, 230°) 3000ft
