Airports for X-Plane

Brisbane - Archerfield

Airport details

CountryAustralia
StateQueensland
RegionYB
AirspaceBrisbane Ctr
MunicipalityBrisbane City
Elevation62ft (19m)
TimezoneGMT +10
Coordinates-27.56938, 153.00137
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeYBAF
IATA codeACF
FAA coden/a

Communication

Archerfield YBAF ATIS120.900
Archerfield ACHERFIELD MULT118.100
Archerfield ACTIVATE LIGHTS ONLY MULT125.100
Archerfield ARCHER Ground Control119.900
Archerfield ARCHER Tower118.100
Archerfield ARCHER Tower123.600
Archerfield BRISBANE Approach125.600

Runway info

Runway 10L / 28R
 length1711m (5614ft)
 bearing106° / 286°
 width30m (98ft)
 surfaceasphalt
 displ threshold150m (492ft) / 210m (689ft)
Runway 10R / 28L
 length1100m (3609ft)
 bearing106° / 286°
 width17m (56ft)
 surfaceasphalt
Runway 04R / 22L
 length1100m (3609ft)
 bearing55° / 235°
 width30m (100ft)
 surfacegrass
Runway 04L / 22R
 length1245m (4085ft)
 bearing55° / 235°
 width30m (98ft)
 surfacegrass
 displ threshold0m (0ft) / 290m (951ft)

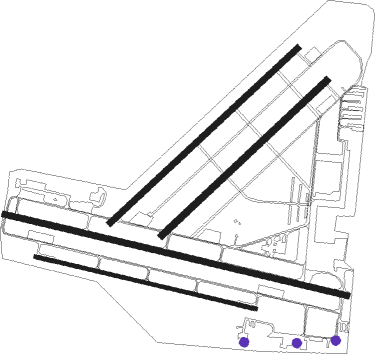

Airport layout - parking location Southern


Taxiway locations

 A1  A5  B  B1  B5  D1  E
Parking locations

 Eastern  Emerg  Grass  Southern  Terminal  Turbine  Western

Nearby beacons

codeidentifierdistbearingfrequency
BNBRISBANE VOR/DME14.234°113.20
AMBAMBERLEY TACAN15.7256°108.10
BMLBROMELTON NDB24.4194°374
CGGOLD COAST NDB44.5140°278
CGGOLD COAST VOR/DME44.8140°112.30
SUSUNSHINE COAST VOR/DME58.55°114.20
SUSUNSHINE COAST NDB58.85°380

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LYBAFWE (105°)BAFWE 3400ft
BAFWI (4mi, 106°) 2500ft
 RNAVBAFWI 2080ft
BAFWF (3mi, 106°) 1100ft
YBAF (3mi, 104°) 93ft
BAFWT (2mi, 110°)
BAFWH (6mi, 139°) 1500ft
(8539mi, 280°) 3400ft
RW10LZBAFWD (82°)BAFWD 3400ft
BAFWI (4mi, 41°) 2500ft
RW10LZBAFWE (105°)BAFWE 3400ft
BAFWI (4mi, 106°) 2500ft
RW10LZBAFWG (129°)BAFWG 3800ft
BAFWI (6mi, 155°) 2500ft
 RNAVBAFWI 2080ft
BAFWF (3mi, 106°) 1100ft
YBAF (3mi, 104°) 93ft
BAFWT (2mi, 110°)
BAFWH (6mi, 139°) 1500ft
(8539mi, 280°) 3400ft
RW28RBAFEA (265°)BAFEA 3400ft
BAFEI (5mi, 221°) 2850ft
RW28RBAFEB (286°)BAFEB 3400ft
BAFEI (5mi, 286°) 2850ft
RW28RBAFEC (308°)BAFEC 3400ft
BAFEI (5mi, 357°) 2850ft
 RNAVBAFEI 2850ft
BAFEF (4mi, 286°) 1570ft
BAFEM (4mi, 286°) 301ft
BAFEH (4mi, 286°)
(8537mi, 280°) 3800ft
