Airports for X-Plane

Brisbane - Brisbane Intl

Airport details

CountryAustralia
StateQueensland
RegionYB
AirspaceBrisbane Ctr
MunicipalityBrisbane City
Elevation12ft (4m)
TimezoneGMT +10
Coordinates-27.38333, 153.11833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYBBN
IATA codeBNE
FAA coden/a

Communication

Brisbane Intl ATIS113.200
Brisbane Intl ATIS125.500
Brisbane Intl ACD118.600
Brisbane Intl SMC North124.050
Brisbane Intl SMC Domestic121.700
Brisbane Intl SMC South122.250
Brisbane Intl Tower EAST120.500
Brisbane Intl Tower WEST118.000

Approach frequencies

ILS-cat-IRW01R109.518.00mi
ILS-cat-IRW19R109.318.00mi
ILS-cat-IRW01L111.518.00mi
ILS-cat-IRW19L110.118.00mi
3° GSRW01R109.518.00mi
3° GSRW19R109.318.00mi
3° GSRW01L111.518.00mi
3° GSRW19L110.118.00mi
Nearby Points of Interest:
RAN Station 9, Pinkenba
-
Pinkenba War Memorial
-
Lytton Quarantine Station
-
Lytton Hill
-
Second World War Hangar No. 7
-
Nundah Fire Station
-
Toombul Shire Hall
-
Nundah Air Raid Shelter
-
First Free Settlers Monument
-
Buildings of St Joseph's College, Nudgee
-
Glengariff, Hendra
-
Corpus Christi Church
-
Nazareth House, Wynnum
-
Musgrave House
-
Eagle Farm Racecourse and Ascot Railway Station
-
Saltwood
-
Hemmant State School
-
Drew Residence
-
Hemmant Christian Community Church
-
Musket Villa
-
Turrawan
-
Lyndhurst, Clayfield
-
Ralahyne
-
Chateau Nous
-
Kedron Lodge

Runway info

Runway 01L / 19R
 length3309m (10856ft)
 bearing30° / 210°
 width60m (197ft)
 surfaceasphalt
Runway 01R / 19L
 length3574m (11726ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt
 displ threshold65m (213ft) / 0m (0ft)

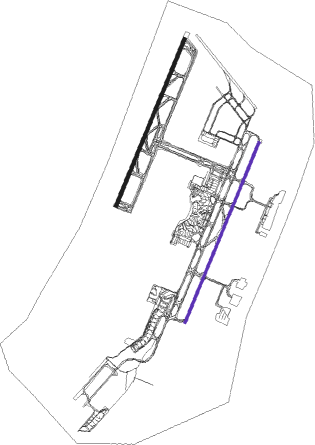

Airport layout - runway 01R / 19L


Taxiway locations

 A  A1  A3  A4  A7  A9  B  C
 C1  C2  C3  C3T  C4  C5  C6  F2
 H3  H4  M  S  S2  T  T1  T12
 T13  T14  T2  T3  T4  T5  T6  T8
 W  Y  Z
Parking locations

 Alliance  Bay  Bay32A  GA  GA22  Gate  Int  Logistics
 Ramp  Toll

Nearby beacons

codeidentifierdistbearingfrequency
BNBRISBANE VOR/DME1.550°113.20
AMBAMBERLEY TACAN26.4237°108.10
BMLBROMELTON NDB36.8200°374
SUSUNSHINE COAST VOR/DME47.2358°114.20
SUSUNSHINE COAST NDB47.5358°380
CGGOLD COAST NDB51.1154°278
CGGOLD COAST VOR/DME51.4154°112.30

Departure and arrival routes

Transition altitude10000ft
Transition level110ft
SID end pointsdistanceoutbound heading
RW01L
 BIXAD142mi10°
 WACKO323mi298°
RW01R
 GUMKI141mi75°
 SCOTT347mi125°
 SANEG126mi190°
 ASISO1, WACKO323mi298°
RW19L
 BIXAD142mi10°
 GUMKI141mi75°
 SCOTT347mi125°
 SANEG126mi190°
 WACKO323mi298°
RW19R
 BIXAD142mi10°
 WACKO323mi298°

STAR starting pointsdistanceinbound heading
RW01L
 ENLI1A44.443°
 SMOK9X, SMOK9A30.0137°
 MORB1A, MORB1V30.4151°
 TEBO1A33.9238°
 UGTU1A40.8278°
 GOMO2A51.4334°
 BLAK4A49.3353°
RW01R
 ENLI1A44.443°
 SMOK9M40.0136°
 SMOK9A30.0137°
 MORB1A30.4151°
 TEBO1A33.9238°
 TEBO1X41.5239°
 UGTU1X, UGTU1A40.8278°
 GOMO2A, GOMO2X, GOMO2V51.4334°
 BLAK4A, BLAK4X49.3353°
RW19L
 ENLI1X, ENLI1A44.443°
 SMOK9A30.0137°
 MORB1A30.4151°
 TEBO1A33.9238°
 UGTU1X, UGTU1A40.8278°
 GOMO2A, GOMO2V, GOMO2X51.4334°
 BLAK4A, BLAK4X49.3353°
RW19R
 ENLI1A, ENLI1X44.443°
 SMOK9X, SMOK9A30.0137°
 MORB1V, MORB1A30.4151°
 TEBO1A33.9238°
 UGTU1A40.8278°
 GOMO2A51.4334°
 BLAK4A49.3353°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LXRUSVA (79°)RUSVA 4000ft
BN500 (5mi, 114°) 3000ft
 RNAVBN500 3000ft
BN510 (2mi, 93°) 2240ft
BN520 (3mi, 63°)
YBBN (4mi, 37°) 63ft
BBZSH (2mi, 9°)
BN530 (2mi, 13°)
BN540 (10mi, 357°) 4000ft
RW01LZTANIK (32°)TANIK 4000ft
AKTOB (2mi, 30°) 4000ft
 RNAVAKTOB 4000ft
LUTSI (9mi, 30°) 1240ft
YBBN (4mi, 38°) 63ft
BBZSH (2mi, 9°)
(8552mi, 280°) 4000ft
RW01RXSORVA (348°)SORVA 3000ft
BN525 (2mi, 319°) 2400ft
 RNAVBN525 2400ft
BN535 (2mi, 319°) 1800ft
BN545 (4mi, 354°)
YBBN (3mi, 19°) 62ft
BNESH (1mi, 57°)
BN555 (2mi, 45°)
BN565 (9mi, 60°) 4000ft
RW01RZGLENN (27°)GLENN 3000ft
NOMEV (2mi, 30°) 3000ft
 RNAVNOMEV 3000ft
GOGEX (6mi, 30°) 1230ft
YBBN (5mi, 23°) 62ft
BNESH (1mi, 57°)
(8552mi, 280°) 4000ft
RW19LXATSEP (241°)ATSEP 4000ft
BN405 (3mi, 279°) 3000ft
 RNAVBN405 3000ft
BN415 (5mi, 241°) 1550ft
BN425 (2mi, 226°)
YBBN (4mi, 217°) 61ft
BNENH (2mi, 188°)
BN435 (2mi, 193°)
BN445 (9mi, 177°) 4000ft
RW19LZBETSO (212°)BETSO 4000ft
PIKON (2mi, 210°) 4000ft
 RNAVPIKON 4000ft
OGATU (7mi, 210°) 1650ft
YBBN (6mi, 215°) 61ft
BNENH (2mi, 188°)
(8549mi, 280°) 4000ft
RW19RXLUVNA (188°)LUVNA 3000ft
BN400 (3mi, 169°) 2700ft
 RNAVBN400 2700ft
BN411 (3mi, 169°) 1910ft
BN421 (2mi, 190°)
YBBN (6mi, 204°) 63ft
BBZNH (turn)
BN430 (2mi, 225°)
BN440 (9mi, 240°) 4000ft
RW19RZOSOKO (207°)OSOKO 3000ft
OKVIS (2mi, 210°) 3000ft
 RNAVOKVIS 3000ft
SAKBO (4mi, 210°) 1660ft
YBBN (7mi, 205°) 63ft
BBZNH (turn)
(8550mi, 280°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLAK4ABLAKAVHFleft181 (1)°1.0min timedICAO rules
BLAK4XBLAKAVHFleft181 (1)°1.0min timedICAO rules
ENLI1AENLIPVHFleft214 (34)°1.0min timedICAO rules
ENLI1XENLIPVHFleft214 (34)°1.0min timedICAO rules
GOMO2AGOMOLVHFright186 (6)°1.0min timedICAO rules
GOMO2VGOMOLVHFright186 (6)°1.0min timedICAO rules
GOMO2XGOMOLVHFright186 (6)°1.0min timedICAO rules
MORB1AMORBIVHFleft316 (136)°1.0min timedICAO rules
MORB1VMORBIVHFleft316 (136)°1.0min timedICAO rules
SMOK9ASMOKAVHFright307 (127)°1.0min timedICAO rules
SMOK9MSMOKAVHFright307 (127)°1.0min timedICAO rules
SMOK9XSMOKAVHFright307 (127)°1.0min timedICAO rules
WODY1AWOODYVHFleft275 (95)°< 20000ft1.0min timedICAO rules
WODY1VWOODYVHFleft275 (95)°< 20000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
