Airports for X-Plane

Cairns - Cairns Intl

Airport details

CountryAustralia
StateQueensland
RegionYB
AirspaceBrisbane Ctr
MunicipalityCairns
Elevation6ft (2m)
TimezoneGMT +10
Coordinates-16.88667, 145.75500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYBCS
IATA codeCNS
FAA coden/a

Communication

Cairns INTL ATIS113.000
Cairns INTL ATIS131.100
Cairns INTL Ground Control121.700
Cairns INTL Tower124.900
Cairns INTL Approach118.400
Cairns INTL Approach126.100
Cairns INTL Departure118.400
Cairns INTL Departure126.100

Approach frequencies

LOCRW33109.518.00mi
ILS-cat-IRW15109.918.00mi
3° GSRW15109.918.00mi
Nearby Points of Interest:
WWII RAN Fuel Installation, Edge Hill
-
Herries Private Hospital
-
McLeod Street Pioneer Cemetery
-
Cairns Technical College and High School Building
-
Cairns Masonic Temple
-
Bishop's House, Cairns
-
St Monica's Old Cathedral, Cairns
-
St Monica's War Memorial Cathedral
-
Cairns War Memorial
-
Cairns Chinatown Building
-
Bolands Centre
-
Central Hotel
-
Adelaide Steamship Co Ltd Building
-
Cairns Customs House
-
Alley Family Graves
-
Rocky Creek World War Two Hospital Complex
-
Yungaburra Post Office
-
Yungaburra Community Centre
-
7-9 Cedar Street, Yungaburra
-
Billy Madrid's House
-
Bank of New South Wales Building, Yungaburra
-
Eden House Restaurant
-
James Venture Mulligan's Grave
-
St James Catholic Church, Malanda
-
Mossman District Hospital

Runway info

Runway 15 / 33
 length3207m (10522ft)
 bearing156° / 336°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 40m (131ft)
 blast zone100m (328ft) / 63m (207ft)

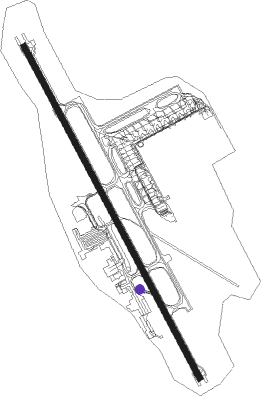

Airport layout - taxiway location Y


Taxiway locations

 A2  B  C2  Y
Parking locations

 1E  Gate  General  H1  H2  H3  H4  H5
 H6  H7  H8  H9  Maitenance  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
CSCAIRNS VOR/DME2.2343°113
CSCAIRNS NDB2.6334°364
IFLINNISFAIL NDB43.2159°212

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW15
 SWIFT8107mi145°
 NONUM120mi265°

STAR starting pointsdistanceinbound heading
RW15
 NONU3W, NONU3Z, NONU3A, NONU3B, NONU3V19.885°
 CODI7A, CODI7Z, CODI7X22.4155°
 SUNY6B, SUNY6V17.1184°
 UPOL8Z, UPOL8X, UPOL8V, UPOL8B, UPOL8A15.9226°
RW33
 TOTY4W22.118°
 KEWI2Y, KEWI2X, KEWI2V, KEWI2A12.6235°
 HEND8Y, HEND8A21.8336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15-XGUNRO (155°)GUNRO 5000ft
CS400 (5mi, 156°) 4000ft
CS405 (5mi, 156°) 2500ft
RW15-XTODEG (196°)TODEG 4000ft
CS402 (3mi, 276°) 4000ft
CS404 (4mi, 249°) 4000ft
CS405 (5mi, 189°) 2500ft
 RNAVCS405 2500ft
CS407 (2mi, 156°) 1900ft
YBCS (7mi, 155°) 59ft
CS409 (4mi, 157°)
CS411 (8mi, 127°)
CS415 (5mi, 99°) 5000ft
RW15-YATOSU (173°)ATOSU 5000ft
CNSNI (5mi, 228°) 4040ft
RW15-YGUNRO (155°)GUNRO 5000ft
CNSNI (5mi, 156°) 4040ft
RW15-YPULAX (138°)PULAX 5000ft
CNSNI (5mi, 87°) 4040ft
 RNAVCNSNI 4040ft
CNSNF (5mi, 156°) 2450ft
CNSNZ (6mi, 156°) 451ft
CNSNH (6mi, 76°)
(8551mi, 277°) 5200ft
RW15-ZATOSU (173°)ATOSU 5000ft
CNSNI (5mi, 228°) 4040ft
RW15-ZGUNRO (155°)GUNRO 5000ft
CNSNI (5mi, 156°) 4040ft
RW15-ZPULAX (138°)PULAX 5000ft
CNSNI (5mi, 87°) 4040ft
 RNAVCNSNI 4040ft
CNSNF (5mi, 156°) 2450ft
CNSNM (5mi, 156°) 859ft
CNSNH (6mi, 87°)
(8551mi, 277°) 5200ft
RW33-YBASIL (299°)BASIL 6800ft
CS520 (7mi, 227°) 6000ft
CS521 (6mi, 264°) 6000ft
CS523 (3mi, 318°) 4900ft
CS540 (4mi, 336°) 3620ft
RW33-YHENDO (336°)HENDO 6800ft
CS522 (3mi, 336°) 6000ft
CS523 (3mi, 336°) 4900ft
CS540 (4mi, 336°) 3620ft
 RNAVCS540 3620ft
CS541 (5mi, 336°) 1960ft
YBCS (6mi, 337°) 58ft
CS542 (3mi, 334°)
CS543 (6mi, 21°)
CS544 (4mi, 64°)
CS545 (9mi, 110°)
BASIL (19mi, 158°) 6800ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CODI7AGUNROVHFleft330 (150)°1.0min timedICAO rules
CODI7ZGUNROVHFleft330 (150)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
