Airports for X-Plane

Ballina - Ballina/byron Gateway

Airport details

CountryAustralia
StateNew South Wales
RegionYB
AirspaceBrisbane Ctr
MunicipalityBallina
Elevation2ft (1m)
TimezoneGMT +10
Coordinates-28.83389, 153.56250
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeYBNA
IATA codeBNK
FAA coden/a

Communication

Ballina/Byron Gateway Ballina AWIS134.800
Ballina/Byron Gateway Ballina CTAF124.200
Nearby Points of Interest:
Brundah
-
Byron Bay railway station
-
Colemans Bridge
-
Leycester Creek railway bridge
-
Lismore railway station
-
Mullumbimby Hydro-electric Power Station Complex
-
Evans Head Memorial Aerodrome
-
Nightcap National Park
-
Casino railway station
-
Wollumbin National Park
-
Murwillumbah railway station

Runway info

Runway 06 / 24
 length1902m (6240ft)
 bearing75° / 255°
 width30m (98ft)
 surfaceasphalt

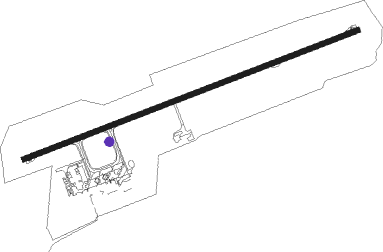

Airport layout - taxiway location B


Taxiway locations

 A  B
Parking locations

 Airline  Airline/Cargo/Genera  Fuel  General  Helicopters

Nearby beacons

codeidentifierdistbearingfrequency
BNABALLINA NDB0190°206
CGGOLD COAST VOR/DME40355°112.30
CGGOLD COAST NDB40.3355°278
GFNGRAFTON NDB62.2210°389
BMLBROMELTON NDB62.7323°374

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06-XOPAMI (26°)OPAMI 3200ft
NA410 (6mi, 327°) 3200ft
NA420 (3mi, 7°) 2500ft
RW06-XOPESO (63°)OPESO 3200ft
NA420 (5mi, 46°) 2500ft
 RNAVNA420 2500ft
NA430 (2mi, 61°) 2030ft
PUMIP (2mi, 75°) 1400ft
YBNA (5mi, 76°) 56ft
NA450 (3mi, 75°)
(8511mi, 281°) 2000ft
RW06-ZBNKWE (76°)BNKWE 3200ft
BNKWI (3mi, 75°) 3200ft
RW06-ZBNKWG (100°)BNKWG 5000ft
BNKWI (7mi, 151°) 3200ft
 RNAVBNKWI 3200ft
BNKWF (4mi, 75°) 1970ft
YBNA (7mi, 76°) 56ft
BNKWH (2mi, 74°)
(8510mi, 281°) 2000ft
RW24-XAVGUS (26°)AVGUS 3200ft
BERNI (9mi, 351°) 3200ft
NA460 (8mi, 53°) 3200ft
RW24-XBERNI (87°)BERNI 3200ft
NA460 (8mi, 53°) 3200ft
 RNAVNA460 3200ft
LOVRI (4mi, 105°) 1970ft
NA470 (3mi, 212°) 850ft
YBNA (3mi, 254°) 56ft
NA490 (4mi, 256°)
(8505mi, 281°) 3200ft
RW24-ZBNKEA (232°)BNKEA 2000ft
BNKEI (5mi, 161°) 2000ft
RW24-ZBNKEB (255°)BNKEB 2000ft
BNKEI (2mi, 255°) 2000ft
RW24-ZBNKEC (277°)BNKEC 2000ft
BNKEI (5mi, 341°) 2000ft
 RNAVBNKEI 2000ft
BNKEF (5mi, 255°) 1730ft
YBNA (6mi, 255°) 56ft
BNKEH (2mi, 257°)
BNKEH (turn) 2000ft
