Airports for X-Plane

Townsville - Townsville Intl

Airport details

CountryAustralia
StateQueensland
RegionYB
AirspaceBrisbane Ctr
MunicipalityTownsville
Elevation18ft (5m)
TimezoneGMT +10
Coordinates-19.25250, 146.76527
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYBTL
IATA codeTSV
FAA coden/a

Communication

Townsville Intl ATIS114.100
Townsville Intl AWIS133.500
Townsville Intl TOWNSVILLE Traffic118.300
Townsville Intl TOWNSVILLE Delivery128.100
Townsville Intl TOWNSVILLE Ground121.800
Townsville Intl TOWNSVILLE Tower118.300
Townsville Intl TOWNSVILLE Departure126.800

Approach frequencies

ILS-cat-IRW01109.318.00mi
3° GSRW01109.318.00mi
Nearby Points of Interest:
Kardinia, Townsville
-
Lion Brewery, Townsville
-
Rosebank
-
Second Townsville General Hospital
-
Old Townsville Railway Station
-
Australian Mutual Provident Society Building
-
Townsville Post Office
-
Samuel Allen & Sons Building
-
Aplin Brown & Company Building
-
Agora House
-
Atkinson & Powell Building
-
Tobruk Memorial Baths
-
Australian Joint Stock Bank Building, Townsville
-
Burns Philp Building, Townsville
-
Bank of New South Wales Building, Townsville
-
St John's Anglican Church, South Townsville
-
Cape Pallarenda Quarantine Station
-
Ross River Meatworks Chimney
-
Picnic Bay State School
-
St Brigid's Church, Stuart
-
Stewart's Creek Gaol
-
Bowling Green Bay National Park
-
Range Hotel site
-
Little Crystal Creek Bridge
-
Fantome Island Lock Hospital and Lazaret Sites

Runway info

Runway 07 / 25
 length1104m (3622ft)
 bearing75° / 255°
 width30m (98ft)
 surfaceasphalt
Runway 01 / 19
 length2449m (8035ft)
 bearing25° / 205°
 width45m (148ft)
 surfaceasphalt

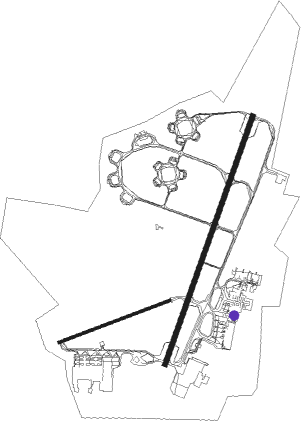

Airport layout - parking location 9


Taxiway locations

 A1  A2  A4  A5  B1  C  D2  D3
 G1
Parking locations

 1  10  10A  10B  2  3  5  6
 7  8  9  GA  H1  H2  MH1  MH10
 MH2  MH3  MH4  MH5  MH6  MH7  MH8  MH9
 MR1  MR2  MR3  MR4  MR5  MR6  MR7  MS1
 MS10  MS2  MS3  MS4  MS5  MS6  MS7  MS8
 MS9

Nearby beacons

codeidentifierdistbearingfrequency
TVLTOWNSVILLE NDB0.3332°276
TLTOWNSVILLE VOR/DME0.6319°114.10
TVLTOWNSVILLE TACAN2221°113.50

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW01
 SWIFT154mi2°
 WALTA1, MAGGY254mi118°
 JEMMA242mi143°
 ANRUB144mi185°
 CATEY142mi253°
 CARMN137mi308°
 PEWEE681mi349°
RW19
 SWIFT154mi2°
 WALTA154mi118°
 RURTO117mi122°
 KVALM1, JEMMA242mi143°
 ANRUB144mi185°
 CATEY142mi253°
 PEWEE681mi349°

STAR starting pointsdistanceinbound heading
RW01
 IBUX1A36.7156°
 SPAR1A78.0156°
 PORO1A, PORO1P35.0309°
 VOMP1A, VOMP1P34.2346°
RW19
 IBUX1Z36.7156°
 PORO1Z, PORO1P, PORO1B35.0309°
 VOMP1B, VOMP1P, VOMP1Z34.2346°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01-PGUGAN (340°)GUGAN 5200ft
KIRAN (3mi, 290°) 4900ft
 RNAVKIRAN 4900ft
TL788 (3mi, 289°) 4200ft
TL780 (4mi, 313°) 3100ft
ESDAM (3mi, 2°) 2100ft
YBTL (7mi, 24°) 67ft
TL790 (2mi, 30°)
TL670 (2mi, 25°)
TL793 (3mi, 60°)
WESTY (11mi, 93°) 3000ft
RW01-ZFREDY (54°)FREDY 4000ft
GOTSI (7mi, 106°) 3600ft
RW01-ZKIRAN (351°)KIRAN 5200ft
GOTSI (7mi, 292°) 3600ft
RW01-ZSATCO (25°)SATCO 4000ft
GOTSI (2mi, 25°) 3600ft
 RNAVGOTSI 3600ft
TSVSF (5mi, 25°) 2140ft
YBTL (7mi, 24°) 68ft
TSVSH (3mi, 28°)
(8539mi, 277°) 3000ft
RW07-ZSARGA (93°)SARGA 4700ft
TSVWI (5mi, 153°) 3990ft
RW07-ZTSVWA (57°)TSVWA 4700ft
TSVWI (5mi, 4°) 3990ft
RW07-ZTSVWB (75°)TSVWB 4700ft
TSVWI (5mi, 75°) 3990ft
 RNAVTSVWI 3990ft
VEBTO (5mi, 75°) 2400ft
TSVWM (6mi, 75°) 492ft
(8535mi, 277°) 520ft
TSVWH (8539mi, 97°)
(8539mi, 277°) 3000ft
RW19-PVILUN (272°)VILUN 5200ft
TL688 (3mi, 333°) 4000ft
TL684 (3mi, 302°) 4000ft
BIXAX (3mi, 272°) 3200ft
 RNAVBIXAX 3200ft
TL671 (3mi, 272°) 2400ft
AGVIT (3mi, 272°) 1400ft
TL670 (2mi, 240°) 700ft
YBTL (3mi, 207°) 62ft
TL679 (3mi, 203°)
TL690 (3mi, 231°)
TL694 (7mi, 185°)
TL699 (5mi, 114°)
TL809 (6mi, 58°)
TL819 (6mi, 359°)
TL829 (2mi, 18°)
TL839 (5mi, 37°)
TL849 (3mi, 65°)
WESTY (2mi, 92°)
WESTY (turn) 5000ft
RW19-ZADNOD (188°)ADNOD 3000ft
TSVNI (5mi, 133°) 3000ft
RW19-ZLEBOT (223°)LEBOT 3000ft
TSVNI (4mi, 274°) 3000ft
RW19-ZTSVNE (206°)TSVNE 3000ft
TSVNI (5mi, 205°) 3000ft
 RNAVTSVNI 3000ft
TSVNF (4mi, 205°) 2300ft
TSVNM (7mi, 205°) 223ft
(8539mi, 277°) 520ft
TSVNH (8530mi, 97°)
(8530mi, 277°) 4700ft
