Airports for X-Plane

Coonamble

Airport details

CountryAustralia
StateNew South Wales
RegionYB
AirspaceBrisbane Ctr
MunicipalityCoonamble
Elevation604ft (184m)
TimezoneGMT +10
Coordinates-30.98333, 148.37555
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYCNM
IATA codeCNB
FAA coden/a

Communication

Coonamble CTAF126.700
Nearby Points of Interest:
Coonamble railway station

Runway info

Runway 05 / 23
 length1525m (5003ft)
 bearing58° / 238°
 width30m (98ft)
 surfaceasphalt
Runway 12 / 30
 length577m (1893ft)
 bearing124° / 304°
 width30m (98ft)
 surfacegrass

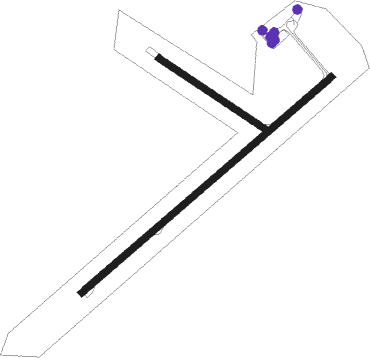

Airport layout - parking location GA


Parking locations

 GA  RPT

Nearby beacons

codeidentifierdistbearingfrequency
WLGWALGETT NDB58.8345°374

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05CNMWA (37°)CNMWA 3300ft
CNMWI (5mi, 341°) 3300ft
RW05CNMWB (58°)CNMWB 3300ft
CNMWI (5mi, 58°) 3300ft
RW05CNMWC (77°)CNMWC 3300ft
CNMWI (5mi, 120°) 3300ft
 RNAVCNMWI 3300ft
CNMWF (5mi, 58°) 2330ft
CNMWM (5mi, 58°) 733ft
CNMWH (3mi, 58°)
(8223mi, 282°) 2200ft
RW23CNMED (217°)CNMED 3300ft
CNMEI (5mi, 161°) 3300ft
RW23CNMEE (238°)CNMEE 3300ft
CNMEI (5mi, 238°) 3300ft
RW23CNMEG (256°)CNMEG 3300ft
CNMEI (5mi, 300°) 3300ft
 RNAVCNMEI 3300ft
CNMEF (5mi, 238°) 2330ft
CNMEM (5mi, 238°) 732ft
CNMEH (3mi, 238°)
(8219mi, 282°) 2200ft
