Airports for X-Plane

Gladstone

Airport details

CountryAustralia
StateQueensland
RegionYB
AirspaceBrisbane Ctr
MunicipalityGladstone
Elevation62ft (19m)
TimezoneGMT +10
Coordinates-23.86972, 151.22278
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYGLA
IATA codeGLT
FAA coden/a

Communication

Gladstone AWOS126.850
Gladstone CTAF118.800
Gladstone ACTIVATE LIGHTS ONLY MULT122.400
Gladstone BRISBANE CENTRE MULT119.550
Nearby Points of Interest:
Port Curtis Sailing Club Clubhouse
-
William Wyndham's gravesite
-
St Luke's Anglican Church, Boyne Island
-
Cape Capricorn Light
-
Sea Hill Light

Runway info

Runway 10 / 28
 length1859m (6099ft)
 bearing109° / 289°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 200m (656ft)
 blast zone104m (341ft) / 60m (197ft)

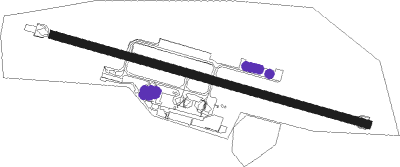

Airport layout - parking location GA


Taxiway locations

 A1  A4  B5
Parking locations

 GA  Gate  H1  H2  H3  H4

Nearby beacons

codeidentifierdistbearingfrequency
GLAGLADSTONE VOR1284°116.30
RKROCKHAMPTON VOR/DME50.6303°116.90
RKROCKHAMPTON NDB50.8304°257

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10GLZWA (90°)GLZWA 4000ft
MUDAN (5mi, 22°) 3500ft
RW10GLZWC (129°)GLZWC 5000ft
MUDAN (5mi, 202°) 3500ft
 RNAVMUDAN 3500ft
GLZWF (5mi, 109°) 2650ft
YGLA (8mi, 109°) 108ft
GLZWH (3mi, 108°)
(8606mi, 279°) 2900ft
RW28GLZED (269°)GLZED 2900ft
GLZEI (5mi, 222°) 2900ft
RW28GLZEE (288°)GLZEE 2900ft
GLZEI (5mi, 289°) 2900ft
RW28GLZEG (308°)GLZEG 2900ft
GLZEI (5mi, 0°) 2900ft
 RNAVGLZEI 2900ft
GLZEF (5mi, 289°) 1680ft
YGLA (6mi, 288°) 90ft
(8605mi, 279°) 560ft
GLZEH (8598mi, 99°)
(8598mi, 279°) 4000ft
