Airports for X-Plane

Darwin - Darwin Intl

Airport details

CountryAustralia
StateNorthern Territory
RegionYB
AirspaceBrisbane Ctr
MunicipalityDarwin
Elevation103ft (31m)
TimezoneGMT +9.5
Coordinates-12.41472, 130.87666
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYPDN
IATA codeDRW
FAA coden/a

Communication

Darwin Intl ATIS128.250
Darwin Intl DARWIN Traffic123.000
Darwin Intl DARWIN Delivery126.800
Darwin Intl DARWIN Ground121.800
Darwin Intl DARWIN Tower133.100
Darwin Intl DARWIN Approach West134.100
Darwin Intl DARWIN Approach East125.200

Approach frequencies

ILS-cat-IRW29109.718.00mi
3° GSRW29109.718.00mi
Nearby Points of Interest:
Stella Maris
-
Emery Point Light

Runway info

Runway 11 / 29
 length3353m (11001ft)
 bearing109° / 289°
 width60m (197ft)
 surfaceasphalt
Runway 18 / 36
 length1532m (5026ft)
 bearing180° / 360°
 width30m (98ft)
 surfaceasphalt

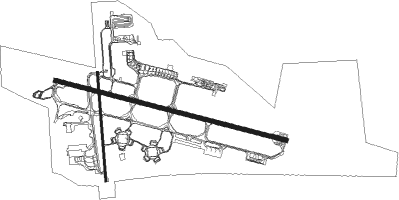

Airport layout


Taxiway locations

 A1  A2  A3  A6  B1  B2  C1  C3
 C4  D  E1  E2  N  V2  Y2  Z
Parking locations

 1  10  11  12  2  22  23  24
 25  3  30  31  32  33  34  35
 4  5  6  7  8  9  B1  B3
 BRA1  BRA2  BRA3  BRA4  C1  C3  C5  CFH
 D1  E1  E2  E3  G2  GA  GHA3  H1
 H4  H5  H7  HA1  HA2  HPW  MH1  MH2
 MH3  MH4  MH5  MH6  MH7  MH8  Mil1  Mil10
 Mil11  Mil12  Mil13  Mil15  Mil3  Mil4  Mil5  Mil6
 Mil7  Mil8  Mil9  MR1  MR2  MR3  MR4  MR5
 MR6  MR7  T5  T6

Nearby beacons

codeidentifierdistbearingfrequency
DARDARWIN TACAN0.381°113.70
BGTBAGOT (DARWIN) NDB1.2292°308
DNDARWIN VOR/DME1.8106°112.60

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW11
 VANDI652mi85°
 PALGA781mi103°
 RUSKA669mi106°
 LAKUP551mi144°
 BIRDY439mi219°
 HELLI579mi232°
 JULIE578mi298°
 OCTOB779mi343°
RW29
 VANDI652mi85°
 PALGA781mi103°
 RUSKA669mi106°
 LAKUP551mi144°
 BIRDY439mi219°
 HELLI579mi232°
 JULIE578mi298°
 OCTOB779mi343°

STAR starting pointsdistanceinbound heading
RW11
 WANG1A29.529°
 WANG1U, WANG1P49.731°
 DONY8A, DONY8U48.4129°
 GATO8A, GATO8U51.7273°
 VEGP6U, VEGP6P, VEGP6A26.1305°
RW29
 WANG1A29.529°
 WANG1U, WANG1P49.731°
 DONY8U, DONY8A48.4129°
 GATO8U, GATO8A51.7273°
 VEGP6A, VEGP6U26.1305°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11-PKINGS (26°)KINGS 6000ft
DN418 (4mi, 37°) 3000ft
DN414 (7mi, 342°) 2000ft
RW11-PKITTY (12°)KITTY 6000ft
DN414 (5mi, 289°) 2000ft
 RNAVDN414 2000ft
DN410 (2mi, 288°) 2000ft
DN404 (5mi, 19°) 1900ft
YPDN (6mi, 109°) 153ft
DN430 (4mi, 107°)
DN450 (9mi, 19°)
DN460 (14mi, 289°)
NASUX (9mi, 199°) 3000ft
NASUX (turn) 3000ft
RW11-TDRWWD (89°)DRWWD 3000ft
DRWWI (5mi, 39°) 3000ft
RW11-TDRWWE (109°)DRWWE 3000ft
DRWWI (5mi, 109°) 3000ft
RW11-TDRWWG (129°)DRWWG 3000ft
DRWWI (5mi, 179°) 3000ft
 RNAVDRWWI 3000ft
DRWWF (5mi, 109°) 1950ft
DRWWZ (6mi, 109°) 147ft
DRWWH (2mi, 109°)
(7793mi, 275°) 3000ft
RW11-ZDRWWD (89°)DRWWD 3000ft
DRWWI (5mi, 39°) 3000ft
RW11-ZDRWWE (109°)DRWWE 3000ft
DRWWI (5mi, 109°) 3000ft
RW11-ZDRWWG (129°)DRWWG 3000ft
DRWWI (5mi, 179°) 3000ft
 RNAVDRWWI 3000ft
DRWWF (5mi, 109°) 1820ft
YPDN (6mi, 109°) 146ft
DRWWH (2mi, 106°)
(7793mi, 275°) 3000ft
RW29-TDRWEA (269°)DRWEA 3000ft
DRWEI (5mi, 219°) 3000ft
RW29-TDRWEB (288°)DRWEB 3000ft
DRWEI (5mi, 289°) 3000ft
RW29-TDRWEC (308°)DRWEC 3000ft
DRWEI (5mi, 359°) 3000ft
 RNAVDRWEI 3000ft
DRWEF (5mi, 289°) 1950ft
DRWEZ (6mi, 289°) 140ft
DRWEH (2mi, 289°)
(7790mi, 275°) 3000ft
RW29-ZDRWEA (269°)DRWEA 3000ft
DRWEI (5mi, 219°) 3000ft
RW29-ZDRWEB (288°)DRWEB 3000ft
DRWEI (5mi, 289°) 3000ft
RW29-ZDRWEC (308°)DRWEC 3000ft
DRWEI (5mi, 359°) 3000ft
 RNAVDRWEI 3000ft
DRWEF (5mi, 289°) 1810ft
YPDN (6mi, 288°) 131ft
DRWEH (2mi, 291°)
(7790mi, 275°) 3000ft
RW36-ZDRWSA (26°)DRWSA 3000ft
DRWSI (5mi, 70°) 3000ft
RW36-ZDRWSB (1°)DRWSB 3000ft
DRWSI (3mi, 360°) 3000ft
RW36-ZDRWSC (336°)DRWSC 3000ft
DRWSI (5mi, 290°) 3000ft
 RNAVDRWSI 3000ft
DRWSF (4mi, 360°) 1730ft
YPDN (6mi, 4°) 141ft
DRWSH (4mi, 354°)
(7791mi, 275°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DONY8ADONYAVHFleft313 (133)°1.0min timedICAO rules
DONY8UDONYAVHFleft313 (133)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
