Airports for X-Plane

Bullsbrook - Pearce

Airport details

CountryAustralia
StateWestern Australia
RegionYM
AirspaceMelbourne Ctr
MunicipalityBullsbrook
Elevation145ft (44m)
TimezoneGMT +8
Coordinates-31.66917, 116.01785
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYPEA
IATA coden/a
FAA coden/a

Communication

Pearce ATIS316.100
Pearce Pearce Delivery134.100
Pearce Pearce Ground121.600
Pearce Perth Centre135.250
Pearce Melbourne Centre125.200
Pearce Pearce Centre135.900
Pearce Pearce Tower118.300
Pearce Pearce Approach130.200

Approach frequencies

ILS-cat-IRW36R111.918.00mi
ILS-cat-IRW18L110.718.00mi
3° GSRW36R111.918.00mi
3° GSRW18L110.718.00mi

Runway info

Runway 18L / 36R
 length2447m (8028ft)
 bearing172° / 352°
 width50m (164ft)
 surfaceasphalt
 blast zone99m (325ft) / 62m (203ft)
Runway 05 / 23
 length1693m (5554ft)
 bearing49° / 229°
 width46m (151ft)
 surfaceasphalt
 blast zone14m (46ft) / 50m (164ft)
Runway 18R / 36L
 length1747m (5732ft)
 bearing172° / 352°
 width30m (98ft)
 surfaceasphalt
 blast zone0m (0ft) / 67m (220ft)

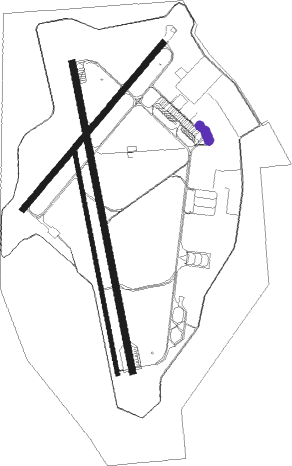

Airport layout - parking location Stand


Taxiway locations

 A1  B1  B2  C1  D1  D2  E1  Z
Parking locations

 Gate  Ramp  RSAF  Stand

Nearby beacons

codeidentifierdistbearingfrequency
PEAPEARCE TACAN0.2184°112.80
PEAPEARCE NDB0.84°340
GIGGINGIN NDB14.7324°372
PHPERTH VOR/DME16.8192°113.70
JTJANDAKOT NDB26.8197°281

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
STAR starting pointsdistanceinbound heading
ALL
 PEAR3R13.9298°
 PEAR3G24.4350°
 PEAR3W31.7359°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05PEAWJ (84°)PEAWJ 2800ft
PEAWI (5mi, 130°) 2800ft
RW05PEAWK (64°)PEAWK 2800ft
PEAWI (5mi, 68°) 2800ft
 RNAVPEAWI 2800ft
PEAWF (5mi, 68°) 1440ft
PEAWM (4mi, 54°) 164ft
(6721mi, 285°) 3000ft
RW18LPZAND (146°)PZAND 2800ft
PZANI (5mi, 102°) 2800ft
RW18LPZANE (172°)PZANE 2800ft
PZANI (5mi, 172°) 2800ft
RW18LPZANG (198°)PZANG 2800ft
PZANI (5mi, 247°) 2800ft
 RNAVPZANI 2800ft
PZANF (5mi, 172°) 1440ft
PZANM (3mi, 172°) 389ft
(6722mi, 285°) 1500ft
(turn) 3000ft
RW23PEAEL (208°)PEAEL 2800ft
PEAEI (4mi, 151°) 2800ft
RW23PEAEN (228°)PEAEN 2800ft
PEAEI (4mi, 229°) 2800ft
RW23PEAEO (246°)PEAEO 2800ft
PEAEI (4mi, 291°) 2800ft
 RNAVPEAEI 2800ft
PEAEF (4mi, 229°) 1850ft
PEAEM (5mi, 229°) 200ft
PEAEH (4mi, 229°)
(6719mi, 285°) 3000ft
RW36RPEASA (353°)PEASA 2800ft
PEASI (5mi, 352°) 2800ft
 RNAVPEASI 2800ft
PEASF (5mi, 352°) 1450ft
PEASM (4mi, 352°) 179ft
PEASH (3mi, 352°)
(6722mi, 285°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
PEAR3GBEVLYVHFleft107 (287)°< 60000ft1.0min timedICAO rules
PEAR3GGRENEVHFleft87 (267)°< 20000ft1.0min timedICAO rules
PEAR3RBEVLYVHFleft107 (287)°< 60000ft1.0min timedICAO rules
PEAR3RGRENEVHFleft87 (267)°< 20000ft1.0min timedICAO rules
PEAR3WHAMTNVHFright107 (287)°20000ft - 60000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
